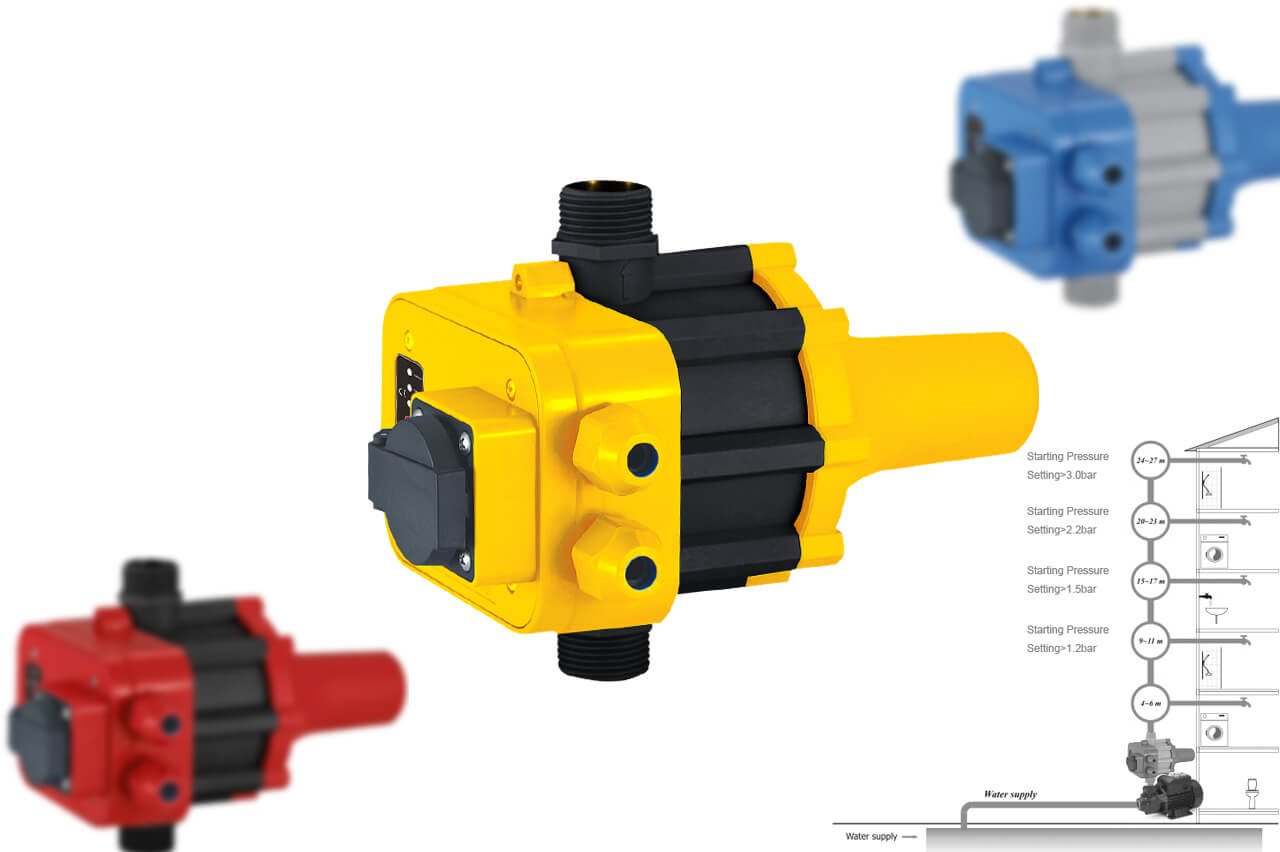

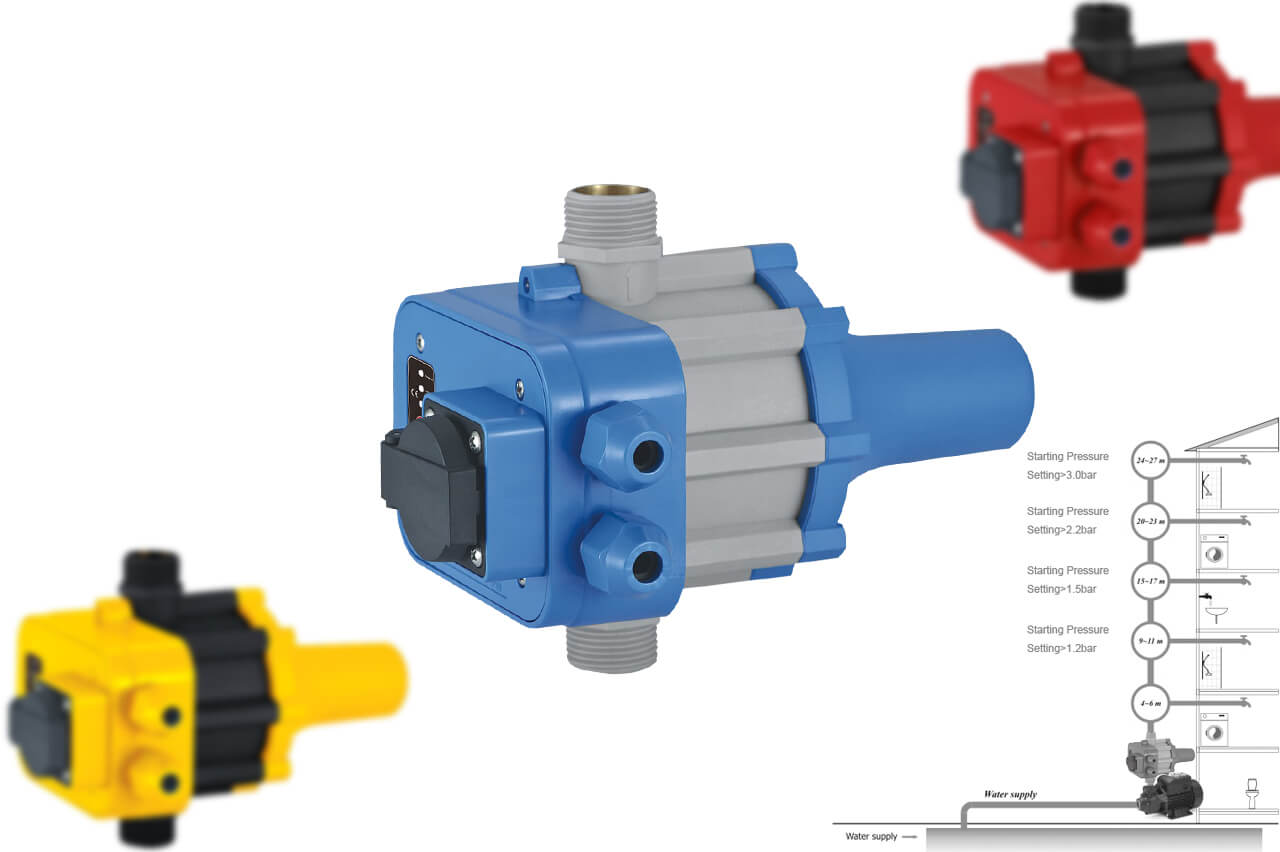

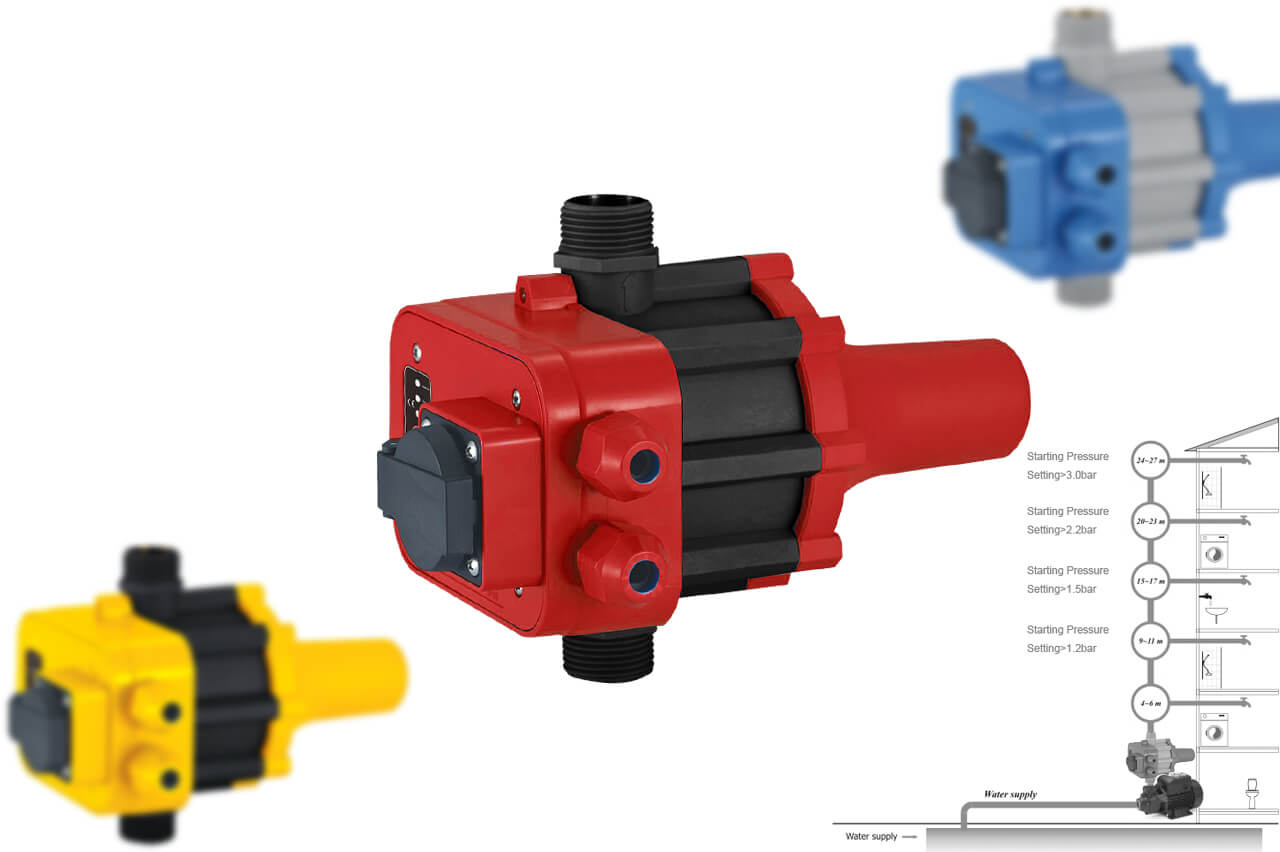

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require

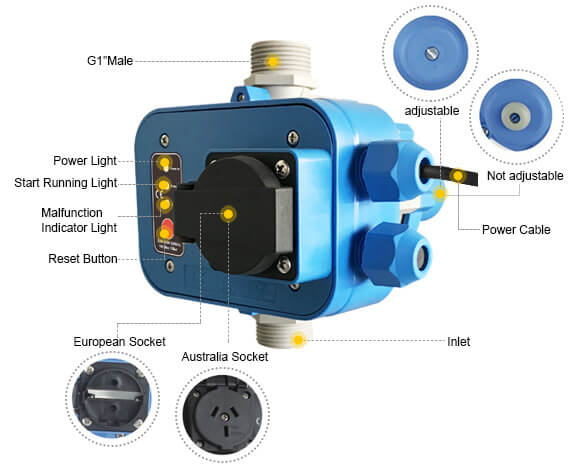

-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.
-With European Socket or Australian Socket.
-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.
-With European Socket or Australian Socket.
-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.
-With European Socket or Australian Socket.
Where there is a pump,
there is a switch
Widely used in a variety of self-priming pumps, jet pumps, centrifugal pumps, garden pumps and other water supply systems

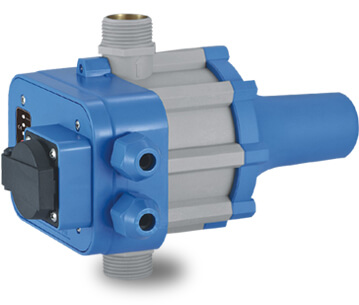

| EPC-1.1 Technical Parameters | |||
|---|---|---|---|
| Rated Voltage | 220-240V | 110-120V | 110-240V |
| Power Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Power Current | 10A | 10A | 10A |
| Max Using Current/Max Power |
1.1KW |
0.55KW |
1.1KW |
| Starting Pressure Setting |
1.2bar 1.5bar 2.2bar |
1.2bar 1.5bar 2.2bar |
1.2bar 1.5bar 2.2bar |
| Max Working Pressure | 10bar | 10bar | 10bar |
| Connection thread | G1" | G1" | G1" |
| Protection rating | IP44 | IP44 | IP44 |
| Max Working Pressure | 55℃ | 55℃ | 55℃ |
| S. NO. | Automatic controllers starting pressure | Water pump lift (meters) | Distance of valve and automatic controller (meters) |
|---|---|---|---|
| 1 | 1.2bar | >22m | <12m |
| 2 | 1.5bar | >25m | <15m |
| 3 | 2.2bar | >35m | <22m |
-1.jpg?imageView2/2/format/jp2)
-1.jpg?imageView2/2/format/jp2)

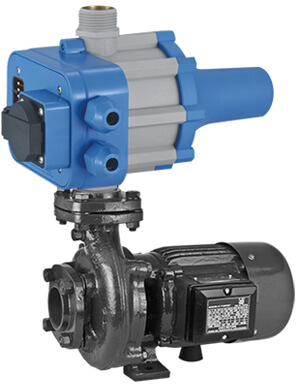

It is advisable to connect the unit outlet to the system by means of a flexible hose.
No taps can be installed between the pump and controller.
1.2 bar→12m max
1.5 bar→15m max
2.2 bar→22m max
Wiring diagram for connection of single phase 220V pumps up to 1.1 Kw.
Wiring diagram for connection of single phase 220V pumps up to 1.1 Kw. through remote control switch.
SPECIFICATIONS FOR REMOTE CONTROL SWITCH Minimum contacts capacity of 4 Kw or 5.5 HP approx. 220V
Wiring diagram for connection of three phase 380V motor pumps through remote control switch.
Normal Packing:
Brand Backing（MOQ）
EPC series ≥ 1200pc
KRS series ≥ 3000pcs；
FPS series ≥ 2000pcs
Size:
Inner Box Size: 261*189*168 MM
Outside Carton size: 58.5*54*35.5 CM
Quantity: 12 PCS/CTN
N.W./G.W.: 16.5/18.5 KGS
20GP Container: around 3000 PCS
