-Startdruck ist während der Installation einstellbar, Einstellbereich: 0,5 bar-
6,7 bar -Farbe nach Kundenwunsch -G1
" -Plastikrohrverbindung für einen schnellen Anschluss an die Wasserpumpe.

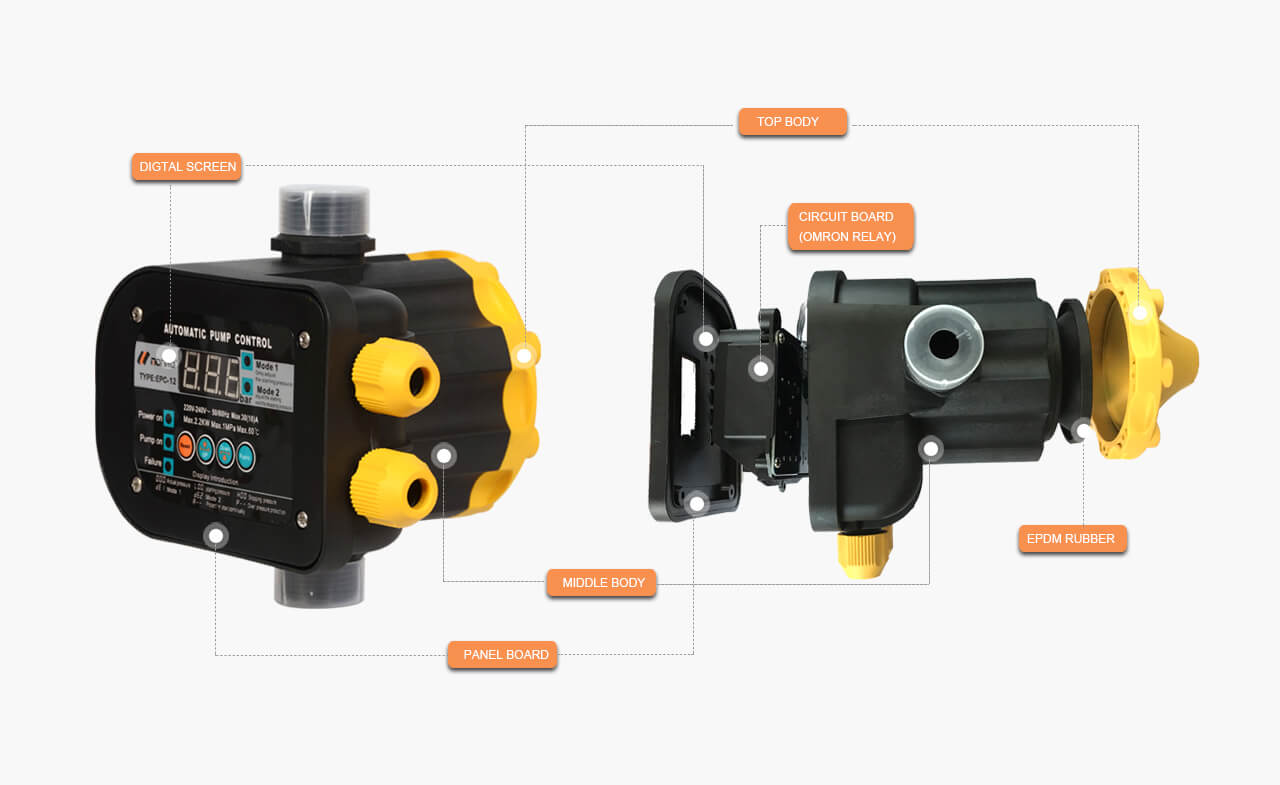

VORTEILE:
- Neues Design
- Modell 1:
- Modell 2: Startdruck und einstellbar
Druck Schließen
den -mit der Timer - Steuerung
des -mit Digtal Bildschirm, geeignet für die im Young
| EPC-12 Technical Parameters | |||
|---|---|---|---|
| Rated Voltage | 220-240V | 110-120V | 110-240V |
| Power Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Max Using Current | 30A | 30A | 30A |
| Starting Pressure Setting | 0.8bar-6.8bar | 0.8bar-6.8bar | 0.8bar-6.8bar |
| Max Power |
2.2KW |
1.1KW |
2.2KW |
| Max Working Pressure | 0.8bar-6.8bar | 0.8bar-6.8bar | 0.8bar-6.8bar |
| Max Working Pressure | 9.8bar | 9.8bar | 9.8bar |
| Connection thread | G1" | G1" | G1" |
| Protection rating | IP65 | IP65 | IP65 |
| Max Working Pressure | 60℃ | 60℃ | 60℃ |
| S.NO. | Automatic Controller Starting Pressure | Water Pump Lift（Meters） | Distance of Value And Automatic Controller(Meters) | |
|---|---|---|---|---|
| Theoretical Value of The Lowest Head For Corresponding Pump | Suggestion Value of The Lowest Head For Corresponding Pump | |||
| 1 | 1.2bar | ＞15m | ＞18m | ＜12m |
| 2 | 1.5bar | ＞18m | ＞21m | ＜15m |
| 3 | 2.2bar | ＞25m | ＞28m | ＜22m |
Setting pressure:
In mode “dE 1”, press “FUNC”, the screen display “dE 1” and flash, press “FUNC” again, the screen display “L00”, this mean the starting pressure, it can be adjusted by UP and DOWN button, the adjusting range is 0.5-6.0 bar.
In mode “dE 2”, press “FUNC”, the screen display “dE 2” and flash, press “FUNC” again, the screen display “L00”, this mean the starting pressure, it can be adjusted by UP and DOWN button, press “FUNC” again, the screen display “L00”, this mean the stopping pressure, it can be adjusted by UP and DOWN button, the adjusting range is 0.8bar-6.8bar

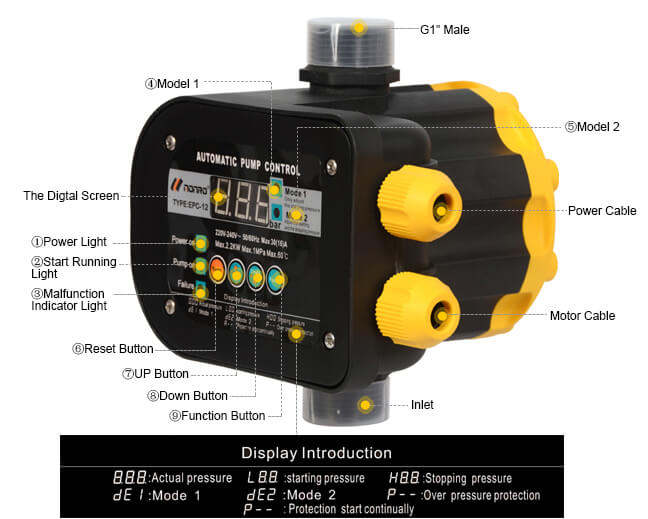

| NO. | Name | Function Instruction |
|---|---|---|
| Digtal tube display area |
the real- time pressure/Starting pressure/Stopping pressure/ Model 1/Model 2/ Overpressure protection/Frequenty starting production |
|
| ① | Power | Indicator light on when power is connected |
| ② | Pump | Indicator light on when the pump working |
| ③ | Failure | Indicator light on, the pump is short of water |
| ④ | Mode 1 | The pump is in precise control mode if the indicator long time light-on |
| ⑤ | Mode 2 | 1.the pump is in precise control mode if the indicator long time light-on 2.Starting pressure and stopping pressure can be set in this mode. |
| ⑥ | Reset | Restarting the pump at any time |
| ⑦ | UP | Converting modes or rising pressure |
| ⑧ | Down | Converting modes or reducing pressure |
| ⑨ | FUNC | Setting mode and pressure |
Can't install
Check vale

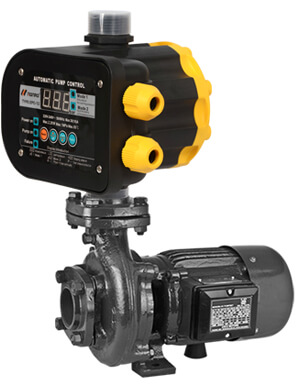

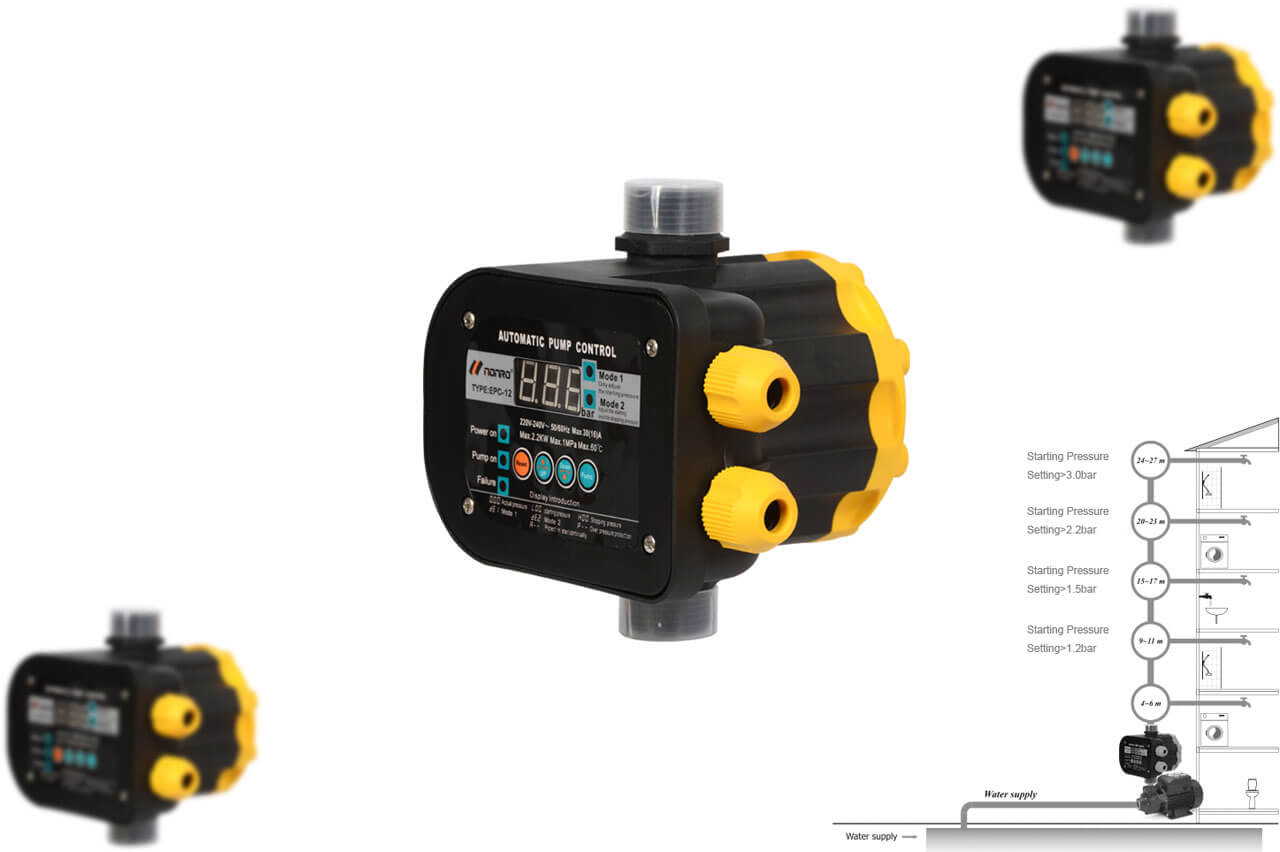

The pressure contorl can be installed direactly on the pump, or between the pump and the first tap.
TIPS: This controller can only be used in clean water.
The controller can be installed directly in front of the first outlet.
No taps can be installed between the pump and controller.
1.2 bar→12m max
1.5 bar→15m max
2.2 bar→22m max
Connect to the single phase 220V the max power 2.2Kw wiring diagram of the pump.
The wiring diagram of the controller connect to the single-phase 220V pump and the power biger than 2.2 KW through the contactor. The contactor coil specification is AC220V, capacity of the contactor no less than 4KW.
The wiring diagram of the controller connect to the single-phase 380V pump and the power biger than 2.2 KW through the contactor. The contactor coil specification is AC220V, capacity of the contactor no less than 4KW.
Normal Packing:
Brand Backing（MOQ）
EPC series ≥ 1200pc
KRS series ≥ 3000pcs；
FPS series ≥ 2000pcs
Size:
Inner Box Size: 160*170*175 MM
Outside Carton size: 49.5*35.5*37 CM
Quantity: 12 PCS/CTN
N.W./G.W.: 11/13.5 KGS
20GP Container: around 5172 PCS
