Automatic Pump Control - EPC-12plus

Home / Products / Automatic Pump Control / EPC-12plus

  • 1 Year quality guarantee
  • More than 10 years experience
  • 100% inspection
  • Stable performance
  • Long life
  • Protection from dry running
  • Replaces the traditional expansion tank system, easy to install
  • 15 bar high pressure test

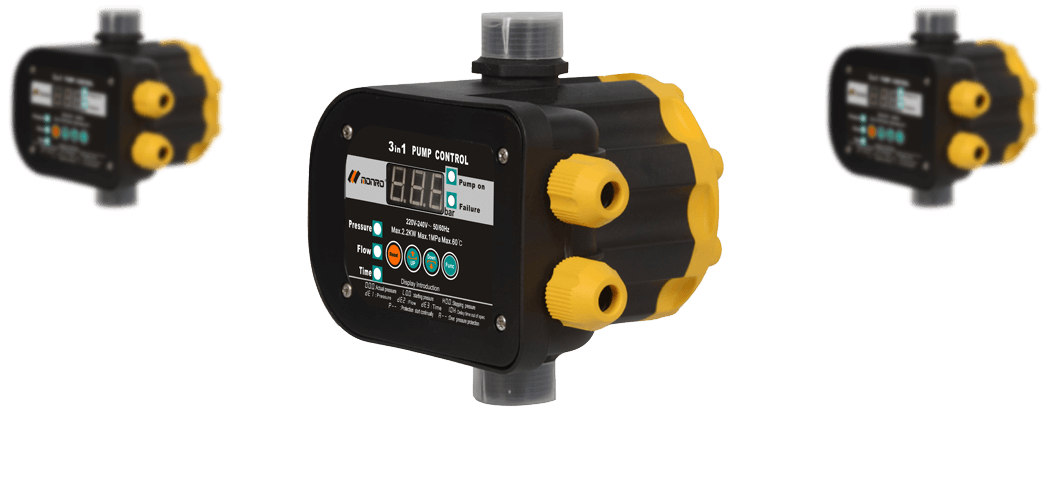

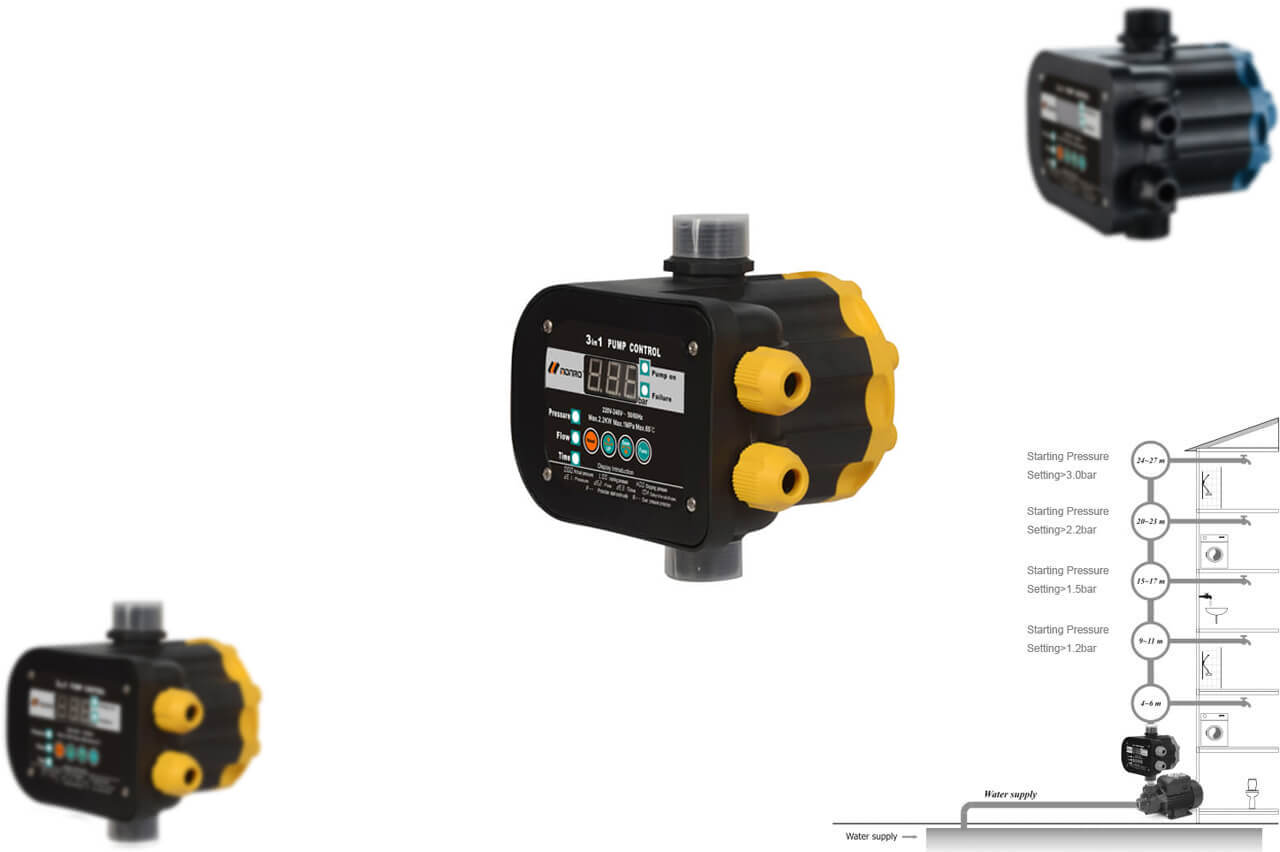

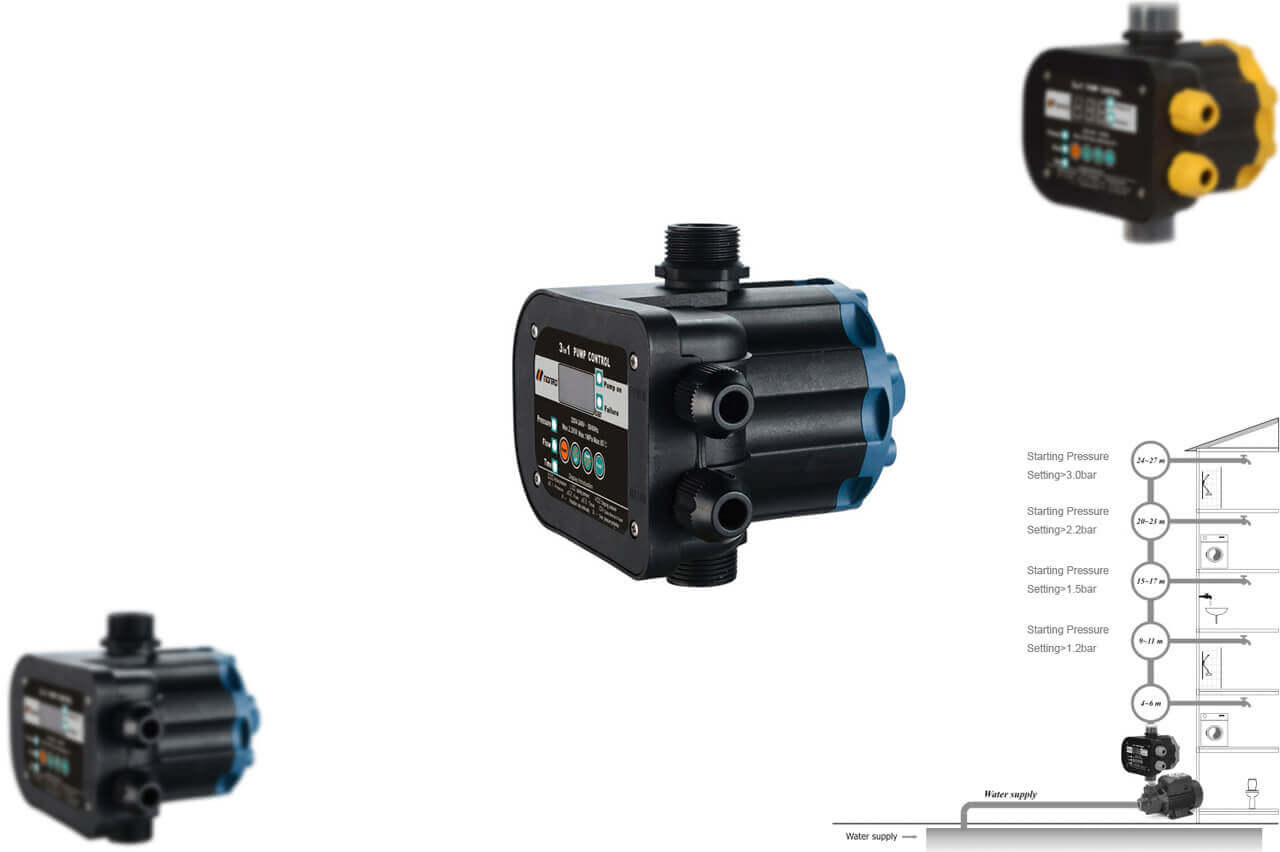

customization

-Starting pessure is adjustable during installation, adjustment range:0.8bar-6.8bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

ADVANTAGES:
--New Design, Three-in-One

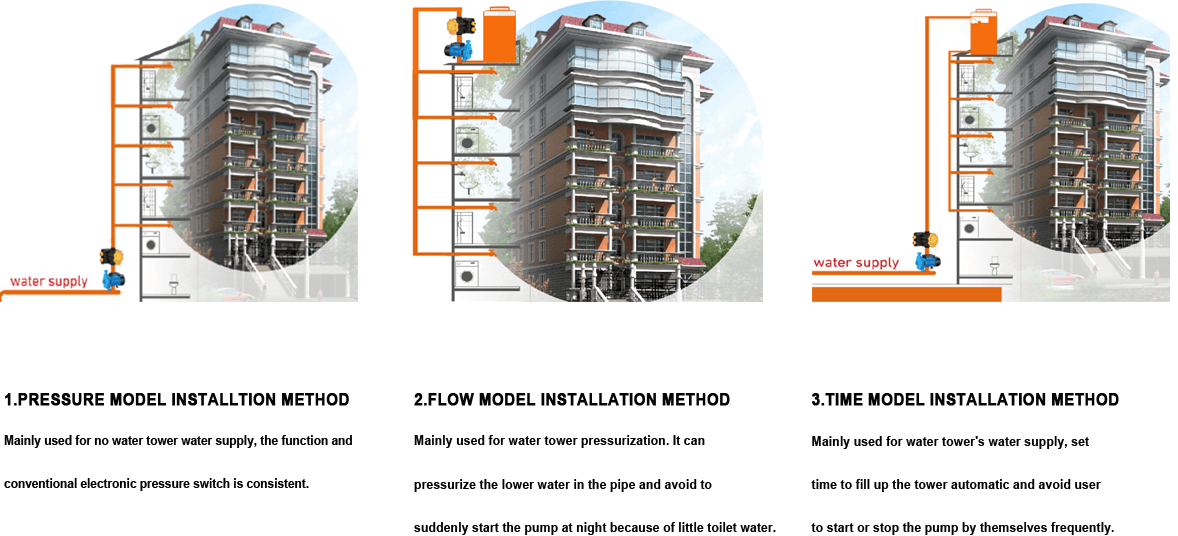

-Model 1: Pressure (Mainly used for no water tower's water supply)
-Model 2: Flow(Mainly used for water tower pressurization)
-Model 3: Time(Mainly used for filling up the water tower, the time setting can according
to customers' require)
-With  timer control
-With digital screen, suitable for the young.

contact us >

-Starting pessure is adjustable during installation, adjustment range:0.8bar-6.8bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

ADVANTAGES:
-New Design, Three-in-One
-Model 1: Pressure (Mainly used for no water tower's water supply)
-Model 2: Flow(Mainly used for water tower pressurization)
-Model 3: Time(Mainly used for filling up the water tower, the time setting can according
to customers' require)
-With  timer control
-With digital screen, suitable for the young.

contact us >




product application
ordinary wells and tube wells
household water booster
high buildings'water booster
irrigation system

Where there is a pump,
there is a switch

Widely used in a variety of self-priming pumps, jet pumps, centrifugal pumps, garden pumps and other water supply systems



product details




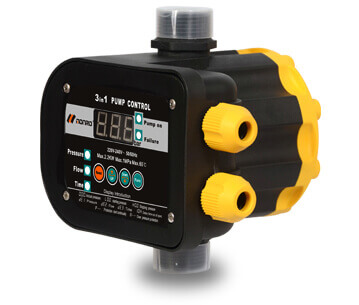

Product parameters



EPC-12plus Technical Parameters
Rated Voltage 220-240V 110-120V 110-240V
Power Frequency 50/60HZ 50/60HZ 50/60HZ
Max Using Current 30A 30A 30A
Max Power

2.2KW

1.1KW

2.2KW

Starting Pressure Setting

0.8bar-6.8bar

0.8bar-6.8bar

0.8bar-6.8bar
Max Working Pressure

9.8bar

9.8bar

9.8bar
Connection thread G1" G1" G1"
Protection rating IP65 IP65 IP65
Max Working Pressure 60℃ 60℃ 60℃
Choice： The automatic control and the water pump
S.NO. Automatic Controller Starting Pressure Water Pump Lift（Meters） Distance of Value And Automatic Controller(Meters)
1 1.2bar ＞22m ＜12m
2 1.5bar ＞25m ＜15m
3 2.2bar ＞35m ＜22m


Product analysis

Setting pressure and operation:

  1. In “pressure”mode, press “FUNC”, the screen display “dE 1” and flash, press “FUNC” again, the screen display “L00”, this mean the starting pressure, it can be adjusted by UP and DOWN button, the pressure rang is 0.8-6.8bar. The factory setting normal is 1.5bar .
  2. In “flow”mode, Press the "FUNC" button , and the screen will display "dE1" and flashes, It can adjust  “dE2" by pressing “UP”  or “DOWN” . And after press the “FUNC” button will save or after shining 3s later, it will saved automatic.
  3. In “time”mode, Press the "FUNC" button , and the screen will display "dE1" and flashes, It can adjust  “dE3" by pressing “UP”  or “DOWN” . And after press the “FUNC” button will show“01H”，and adjust the time by “UP”or “DOWN” After press the “FUNC” button to save or after shining 3s later, it will saved automatic. It can press the reset button to restart the pump when you want to use water.
NO. Name Function Instruction

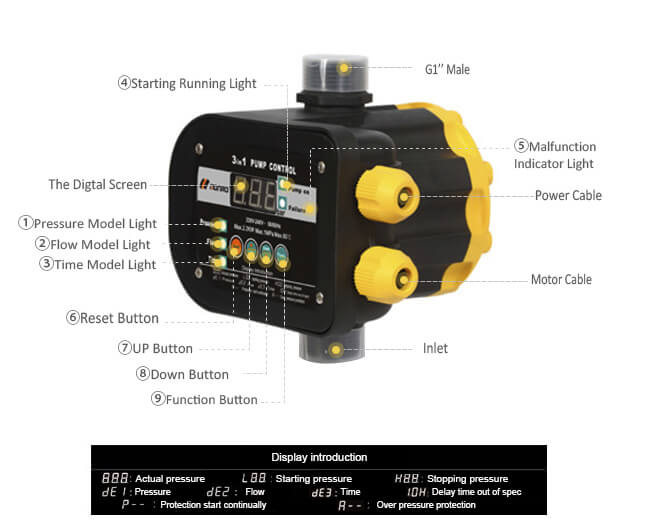

Panel  area

         Pump on/Failure/Electronic digital display area/Pressure mode/Time mode/Flow mode/Reset/Up/Down/Func
①

Pump on
Failure

1.Pump works when “pump on ” light on.
2.Pump stop working when “pump on ” light off.
3.Pump failure when “failure” light twinkle.
②

Pressure
Flow
Time

Control three modes:
Pressure mode when “pressure ”light on.
Flow mode when “flow” light on.
Time mode when “time” light on.
③

Electronic digital display area

Show real time pressure, starting pressure, and modes.
P-- Frequent start alarm
R—The over pressure alarm
④

Reset

Restarting the pump at any time
⑤

UP/Down

Converting modes and  pressure
⑥

FUNC

Setting mode and pressure

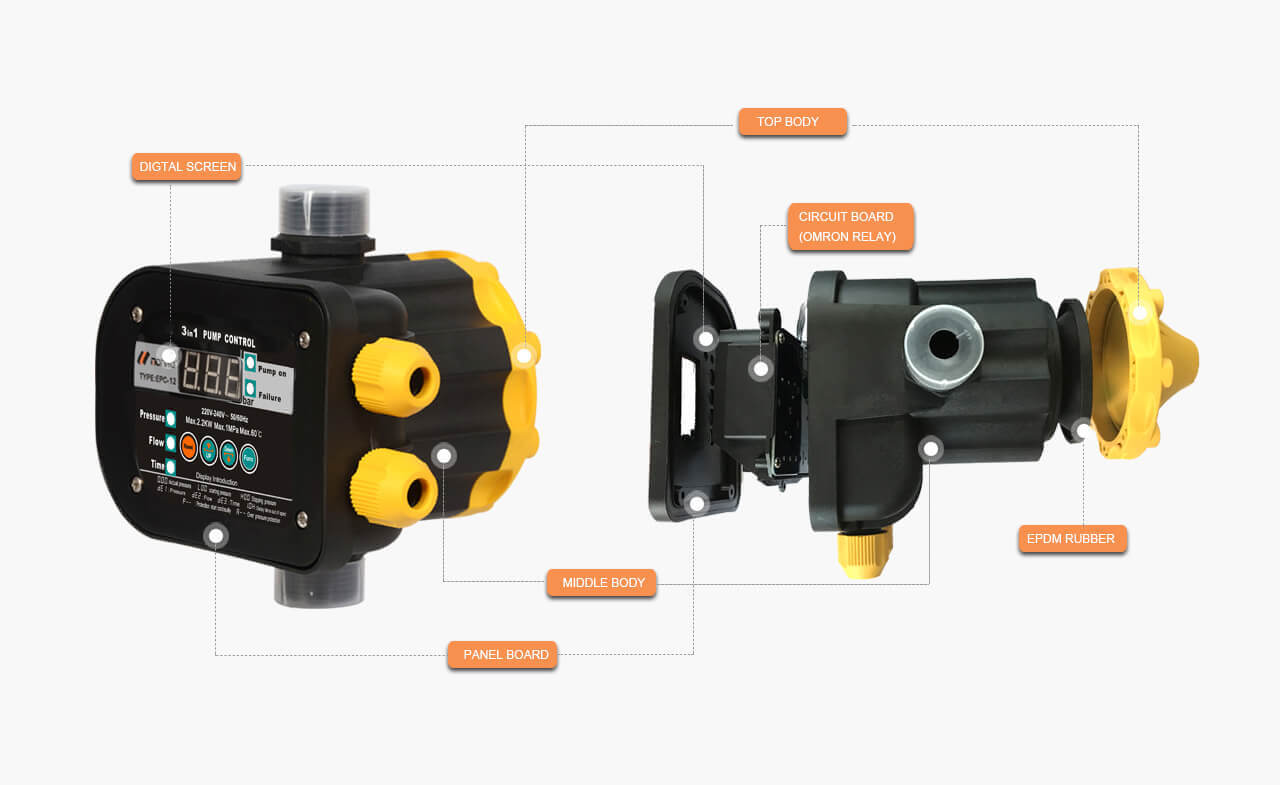

  • Relay：we use all original omron relay
  • Plastic parts: all is new material, no recycling;
    high strength reinforced polyamide.
  • Diaphragm:EPDM Diaphragm, don't have any smell.



Installation Notes

Can't install

Check vale

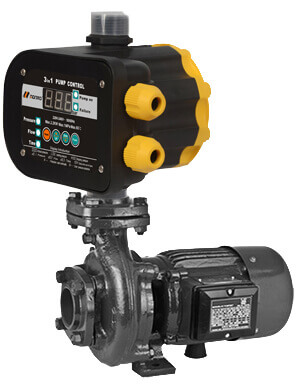

The pressure contorl can be installed direactly on the pump, or between the pump and the first tap.
TIPS: This controller can only be used in clean water.

The controller can be installed directly in front of the first outlet.

No taps can be installed between the pump and controller.

1.2 bar→12m max
1.5 bar→15m max
2.2 bar→22m max

Connect to the single phase 220V the max power 2.2Kw wiring diagram of the pump.

The wiring diagram of the controller connect to the single-phase 220V pump and the power biger than 2.2 KW through the contactor. The contactor coil specification is AC220V, capacity of the contactor no less than 4KW.

The wiring diagram of the controller connect to the single-phase 380V pump and the power biger than 2.2 KW through the contactor. The contactor coil specification is AC220V, capacity of the contactor no less than 4KW.



Function introduction





NORMAL PACKING
1 2 3 4

Normal Packing:

  • Outside Canton
  • Inside Box
  • Manual Book
  • Label

Brand Backing（MOQ）

EPC series ≥ 1200pc

KRS series ≥ 3000pcs；

FPS series ≥ 2000pcs
