Automatic Pump Control - EPC-15

  • 1 Year quality guarantee
  • More than 10 years experience
  • 100% inspection
  • Stable performance
  • Long life
  • Protection from dry running
  • Replaces the traditional expansion tank system, easy to install
  • 15 bar high pressure test


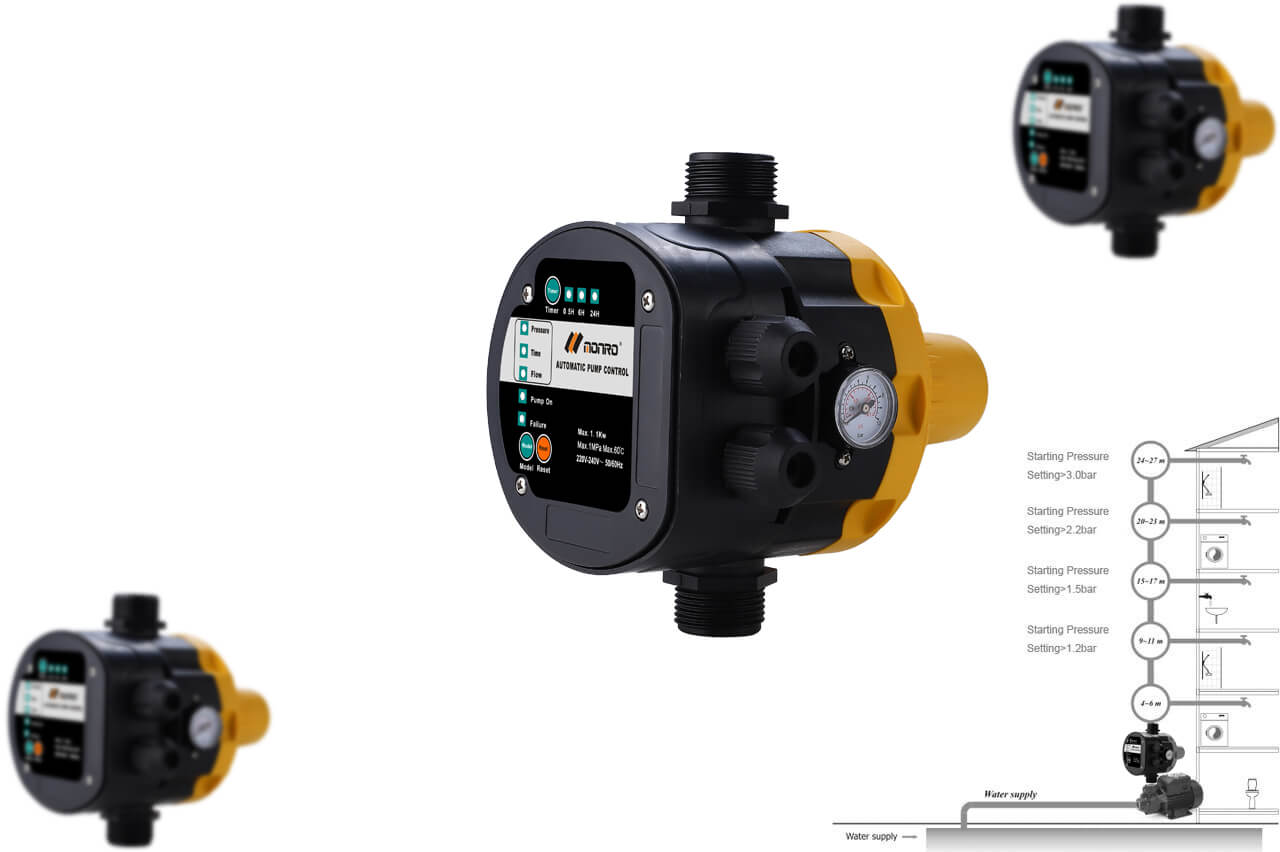

customization

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

ADVANTAGES:
-New Design,Three-in-one

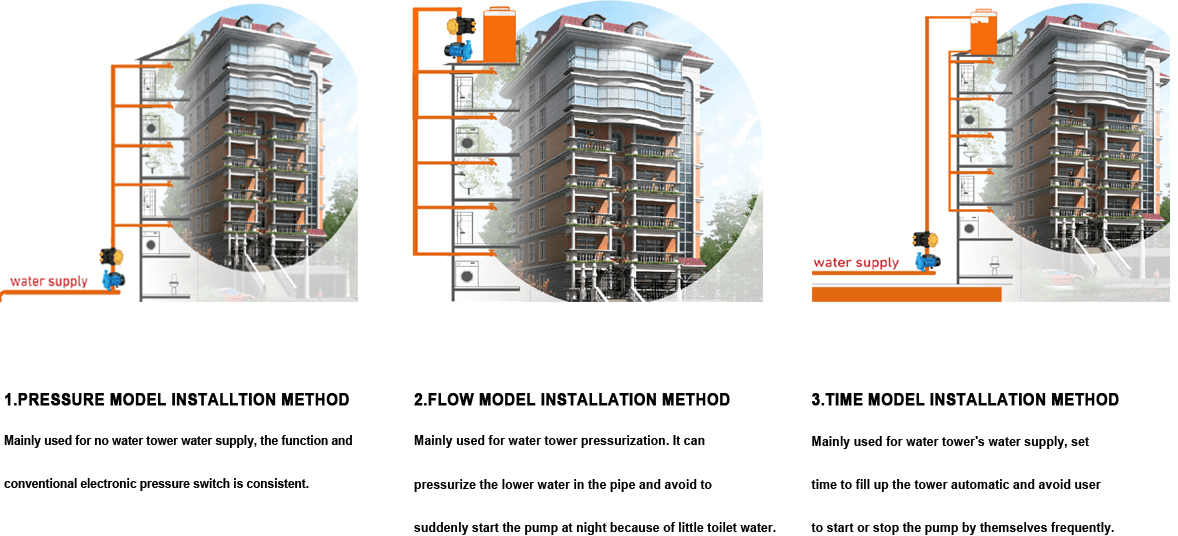

-Model 1: Pressure (Mainly used for no water tower’s water supply)
-Model 2: Flow (Mainly used for water tower pressurization)
-Model 3: Time (Mainly used for filling up the water tower, the time setting can accoring to customers’ require)
-With 15mins timer control
contact us >



product application
ordinary wells and tube wells
household water booster
high buildings'water booster
irrigation system

Where there is a pump,
there is a switch

Widely used in a variety of self-priming pumps, jet pumps, centrifugal pumps, garden pumps and other water supply systems



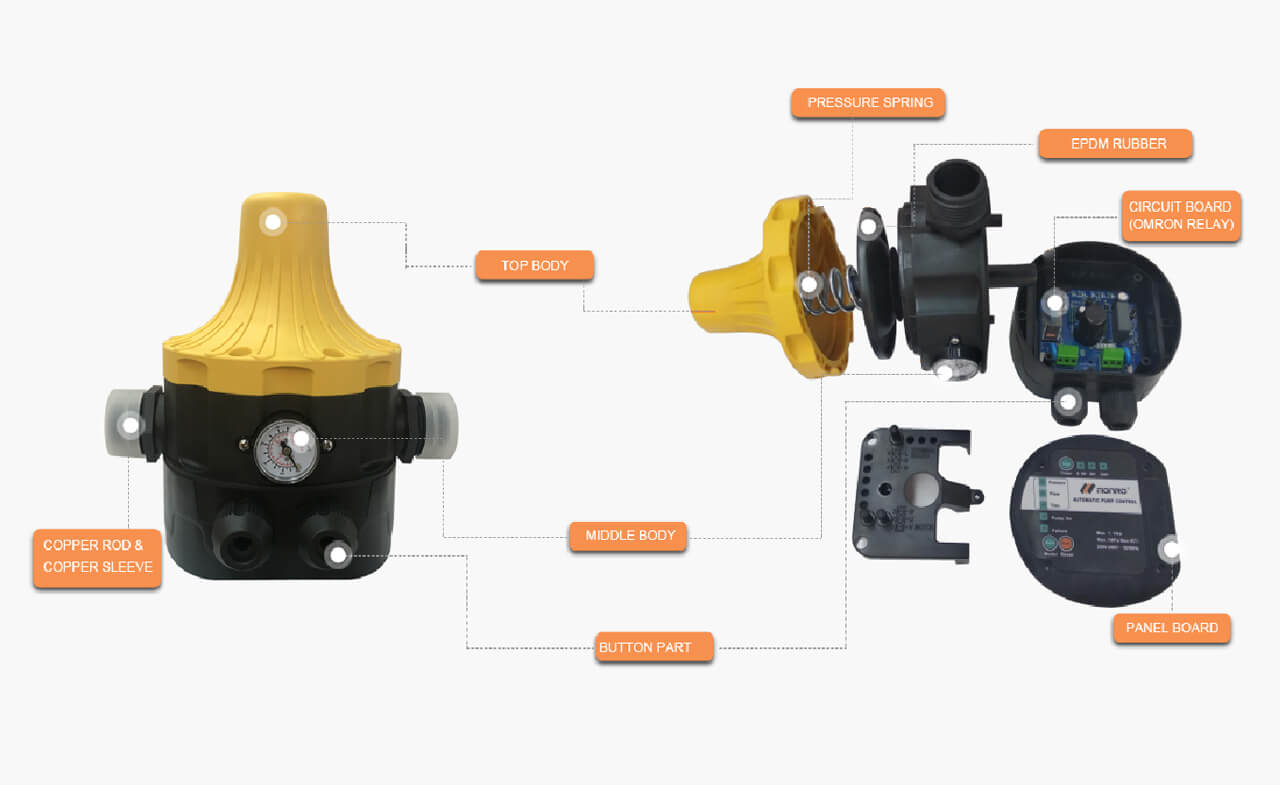

product details




Product parameters



EPC-15 Technical Parameters
Rated Voltage 220-240V 110-120V 110-240V
Power Frequency 50/60HZ 50/60HZ 50/60HZ
Max Using Current 10A 10A 10A
Max Power

1.1KW

0.55KW

1.1KW

Starting Pressure Setting

1.2bar

1.5bar

2.2bar

1.2bar

1.5bar

2.2bar

1.2bar

1.5bar

2.2bar

Max Working Pressure 10bar 10bar 10bar
Connection thread G1" G1" G1"
Protection rating IP65 IP65 IP65
Max Working Pressure 55℃ 55℃ 55℃
Choice: The automatic control and the water pump
S. NO. Automatic controllers starting pressure Water pump lift (meters) Distance of valve and automatic controller (meters)
1 1.2bar >22m <12m
2 1.5bar >25m <15m
3 2.2bar >35m <22m


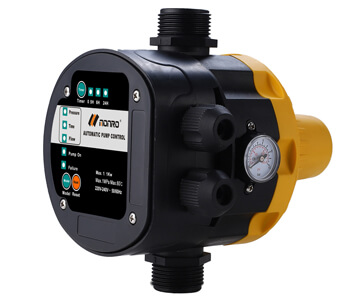

Product analysis

Setting working mode and pressure:

Press “model” button, choose “pressure” “time” or “flow”, then mode light on.Pressure mode is mainly used for no tower water supply.The function is same as normal electronic pressure control, you can set the starting pressure. The pressure gauge on the side shows the system pressure . Starting pressure can be adjusted on the head body of controller. Generally, it rotates 180 degrees, and the starting pressure change 0.1bar. The adjustable range is 1.2-3.0bar, and the default is 1.5bar.This mode is factory setting.

NO. Name Function Instruction

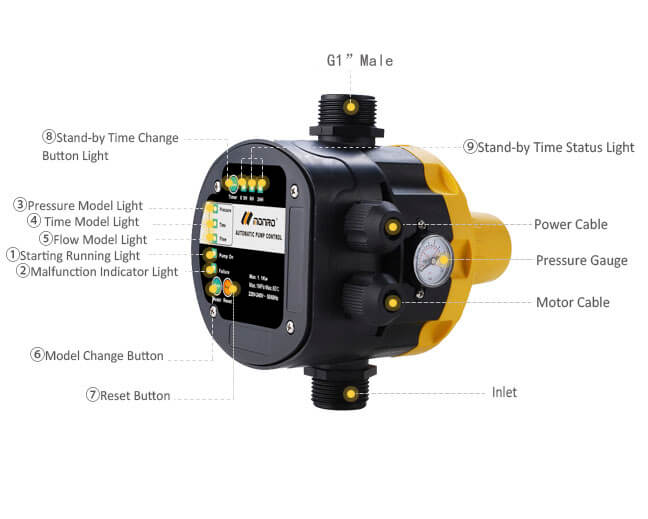

Panel  area

           Pump on/Failure/Pressure model/Time model/Flow model/Model/Reset/Timer/0.5H; 6H ; 24H

Pump on
Failure

1.Pump works when "pump on " light on.
2.Pump stop working when "pump on " light off.
3.Pump failure when "failure" light twinkle.

Pressure Time
Flow

Control three modes:
Pressure mode when “pressure ”light on.
Time mode when “time” light on.
Flow mode when “flow” light on.

Model

Press it each time, then the three mode lights are
turned on in turn

Reset

Can reset pump at anytime

Timer

Press it each time, then the three time lights are turned on in turn

0.5H;6H;24H

The time stand for how long time it will restart after
stopping working

  • Relay:we use all original omron relay
  • Plastic parts: all is new material, no recycling;
    high strength reinforced polyamide.
  • Diaphragm:EPDM Diaphragm, don't have any smell.



Installation Notes

Can't install

Check vale

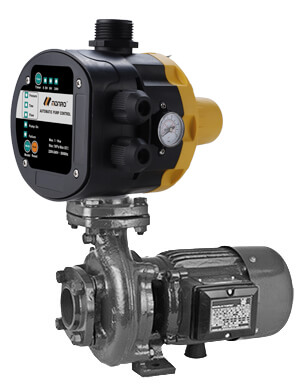

The pressure contorl can be installed direactly on the pump, or between the pump and the first tap.
TIPS: This controller can only be used in clean water.

The controller can be installed directly in front of the first outlet.

No taps can be installed between the pump and controller.

1.2 bar→12m max
1.5 bar→15m max
2.2 bar→22m max

Connect to the single phase 220V the max power 2.2Kw wiring diagram of the pump.

The wiring diagram of the controller connect to the single-phase 220V pump and the power biger than 2.2 KW through the contactor. The contactor coil specification is AC220V, capacity of the contactor no less than 4KW.

The wiring diagram of the controller connect to the single-phase 380V pump and the power biger than 2.2 KW through the contactor. The contactor coil specification is AC220V, capacity of the contactor no less than 4KW.



Function introduction


NORMAL PACKING
1 2 3 4

Normal Packing:

  • Outside Canton
  • Inside Box
  • Manual Book
  • Label

Brand Backing(MOQ)

EPC series ≥ 1200pc

KRS series ≥ 3000pcs;

FPS series ≥ 2000pcs


Size:

Inner Box Size: 151*146*186 MM

Outside Carton size: 61*47.5*21 CM

Quantity: 12 PCS/CTN

N.W./G.W.: 13/15.5 KGS

20GP Container: around 5532 PCS
