Automatic Pump Control - EPC-2.1

Home / Products / Automatic Pump Control / EPC-2.1
  • 1 Year quality guarantee
  • More than 10 years experience
  • 100% inspection
  • Stable performance
  • Long life
  • Protection from dry running
  • Replaces the traditional expansion tank system, easy to install
  • 15 bar high pressure test

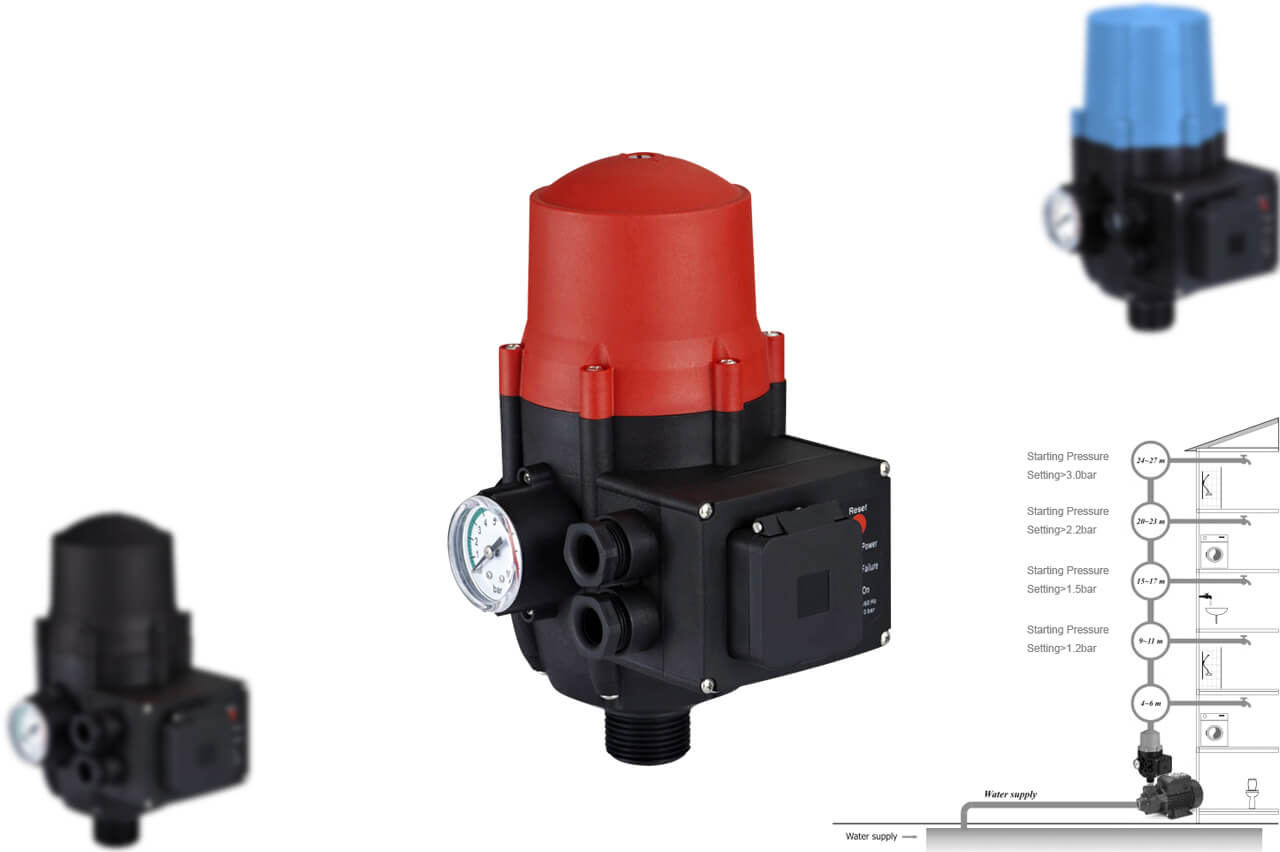

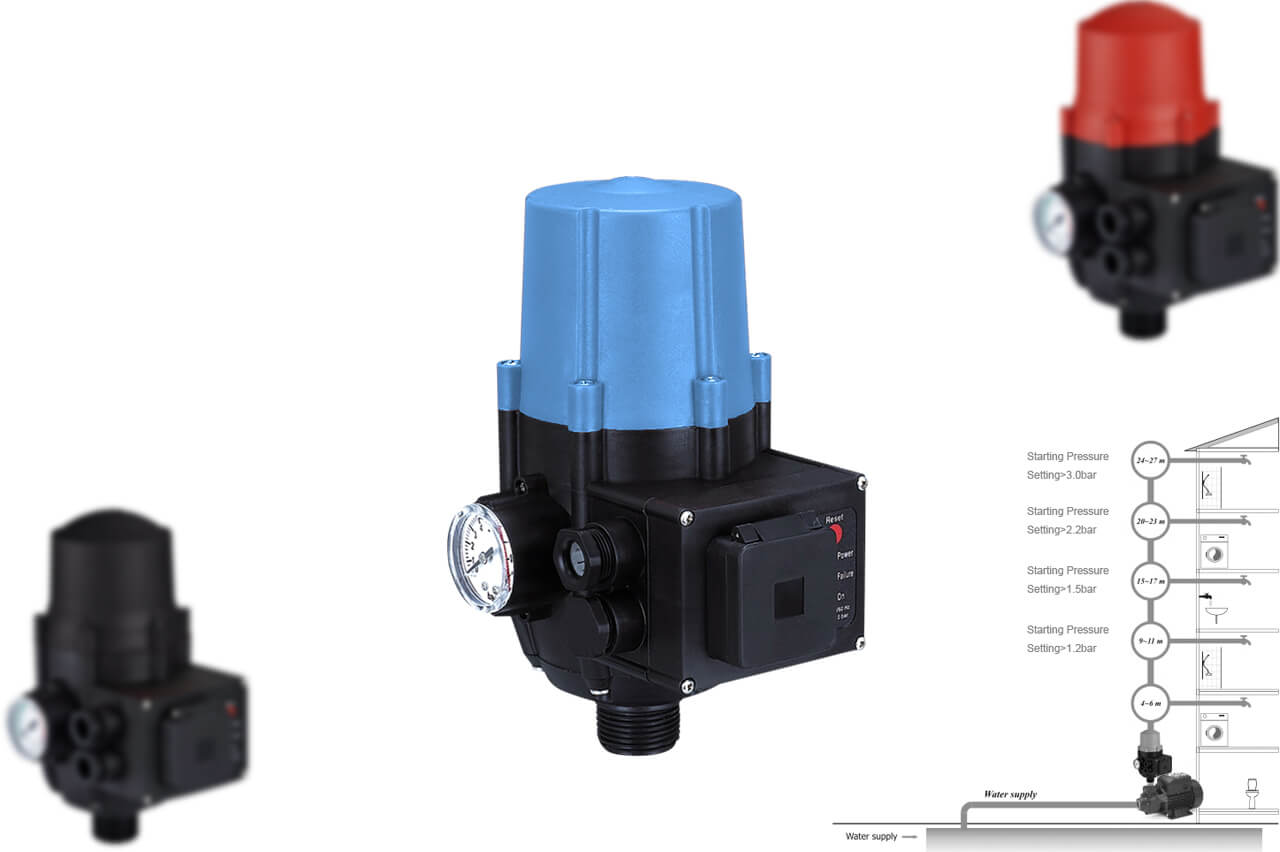

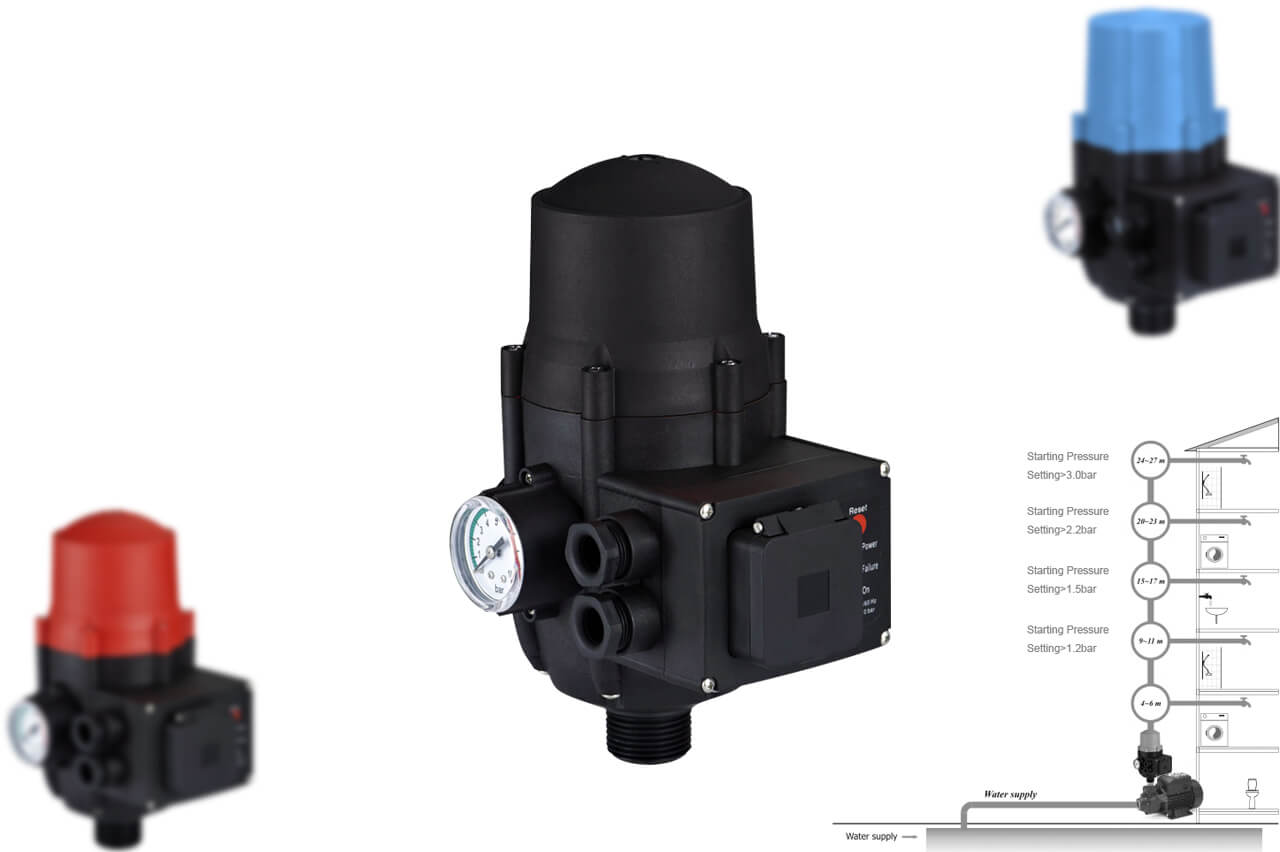

customization

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-R1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

-With European Socket or Australian Socket.

contact us >

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-R1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

-With European Socket or Australian Socket.

contact us >

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-R1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

-With European Socket or Australian Socket.

contact us >



product application
ordinary wells and tube wells
household water booster
high buildings'water booster
irrigation system

Where there is a pump,
there is a switch

Widely used in a variety of self-priming pumps, jet pumps, centrifugal pumps, garden pumps and other water supply systems

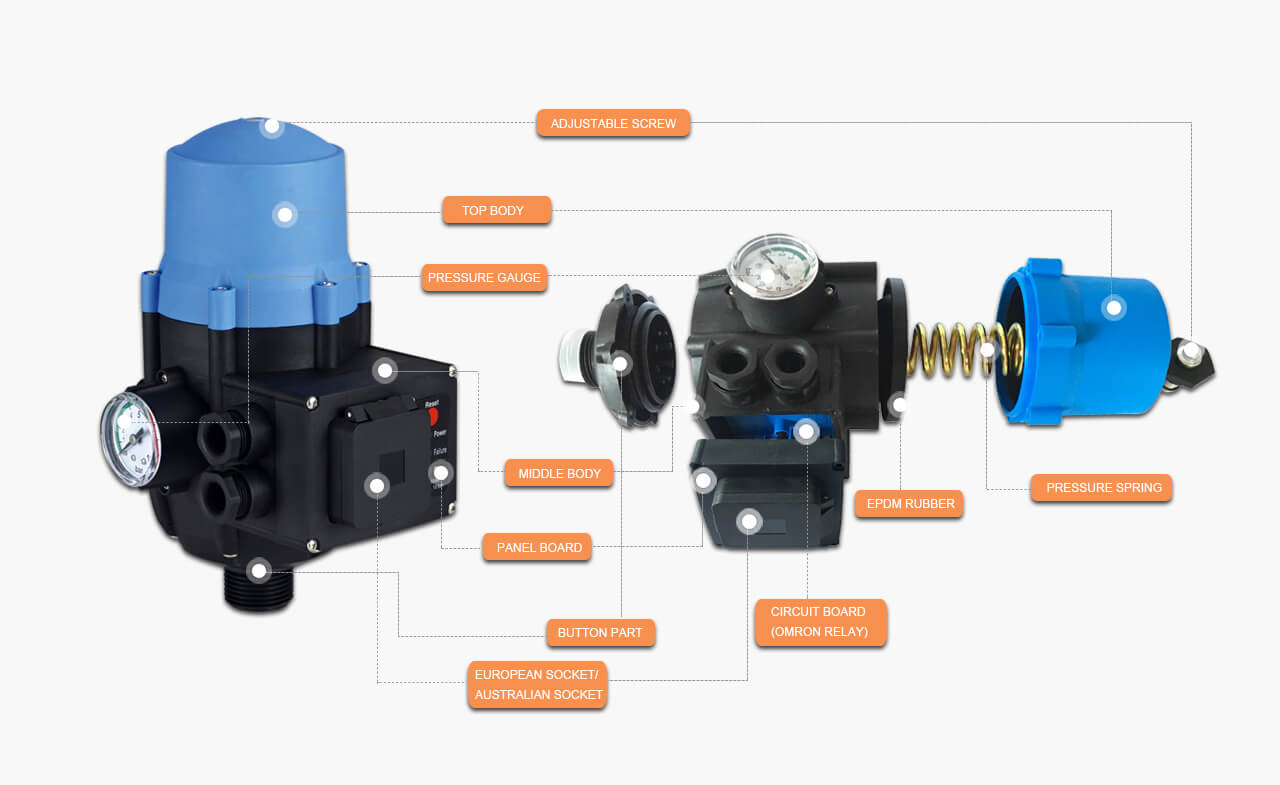

product details

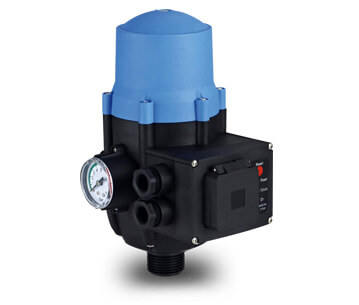

Product parameters



EPC-2.1 Technical Parameters
Rated Voltage 220-240V 110-120V 110-240V
Power Frequency 50/60HZ 50/60HZ 50/60HZ
Max Using Current 10A 10A 10A
Max Power

1.1KW

0.55KW

1.1KW
Starting Pressure Setting

1.2bar

1.5bar

2.2bar

1.2bar

1.5bar

2.2bar

1.2bar

1.5bar

2.2bar
Max Working Pressure 10bar 10bar 10bar
Connection thread R1" R1" R1"
Protection rating IP65 IP65 IP65
Max Working Pressure 55℃ 55℃ 55℃
Choice： The automatic control and the water pump
S. NO. Automatic controllers starting pressure Water pump lift (meters) Distance of valve and automatic controller (meters)
1 1.2bar >22m <12m
2 1.5bar >25m <15m
3 2.2bar >35m <22m

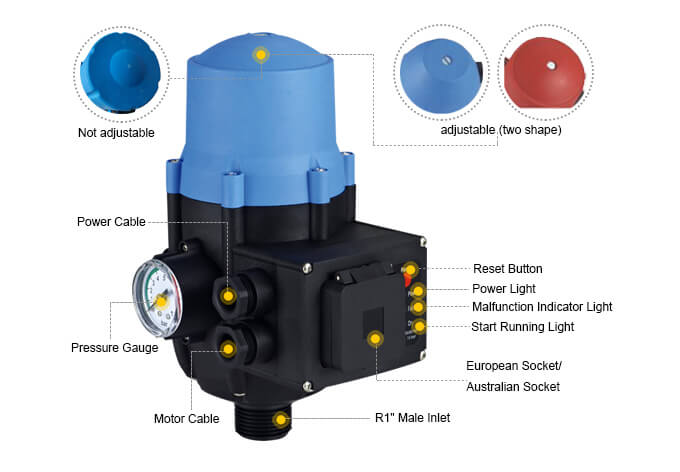

Product analysis
  • Relay：we use all original omron relay
  • Plastic parts: all is new material, no recycling;
    high strength reinforced polyamide.
  • Diaphragm:EPDM Diaphragm, don't have any smell.

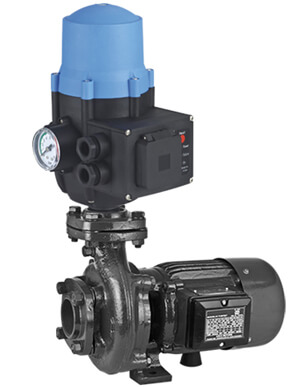

Installation Notes
TIPS: This controller can only be used in clean water.
Using Height Operating Pressure Adjustment Minimum Pump Pressure
20M 2.2bar 3bar
25M 2.7 bar 3.5bar


NORMAL PACKING
1 2 3 4

Normal Packing:

  • Outside Canton
  • Inside Box
  • Instruction Manual
  • Label

Brand Backing（MOQ）

EPC series ≥ 1200pc

KRS series ≥ 3000pcs；

FPS series ≥ 2000pcs


Size:

Inner Box Size: 183*137*227 MM

Outside Carton size: 57*56*25 CM

Quantity: 12 PCS/CTN

N.W./G.W.: 17.5/19.5 KGS

20GP Container: around 4212 PCS


we have our own professional designers to meet any of your requirements.
Welocme to contact us!
