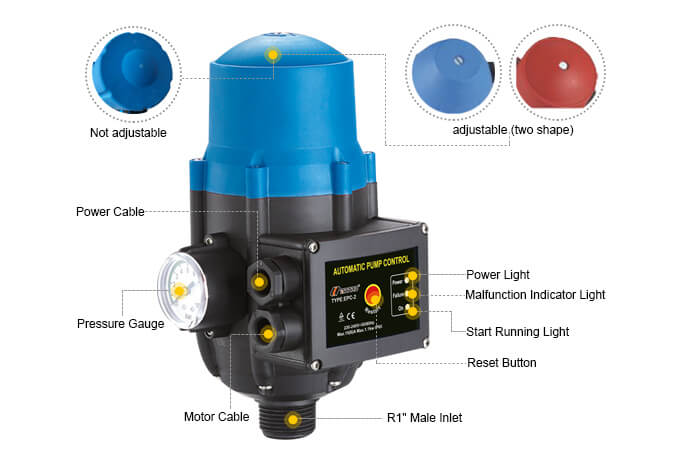

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar

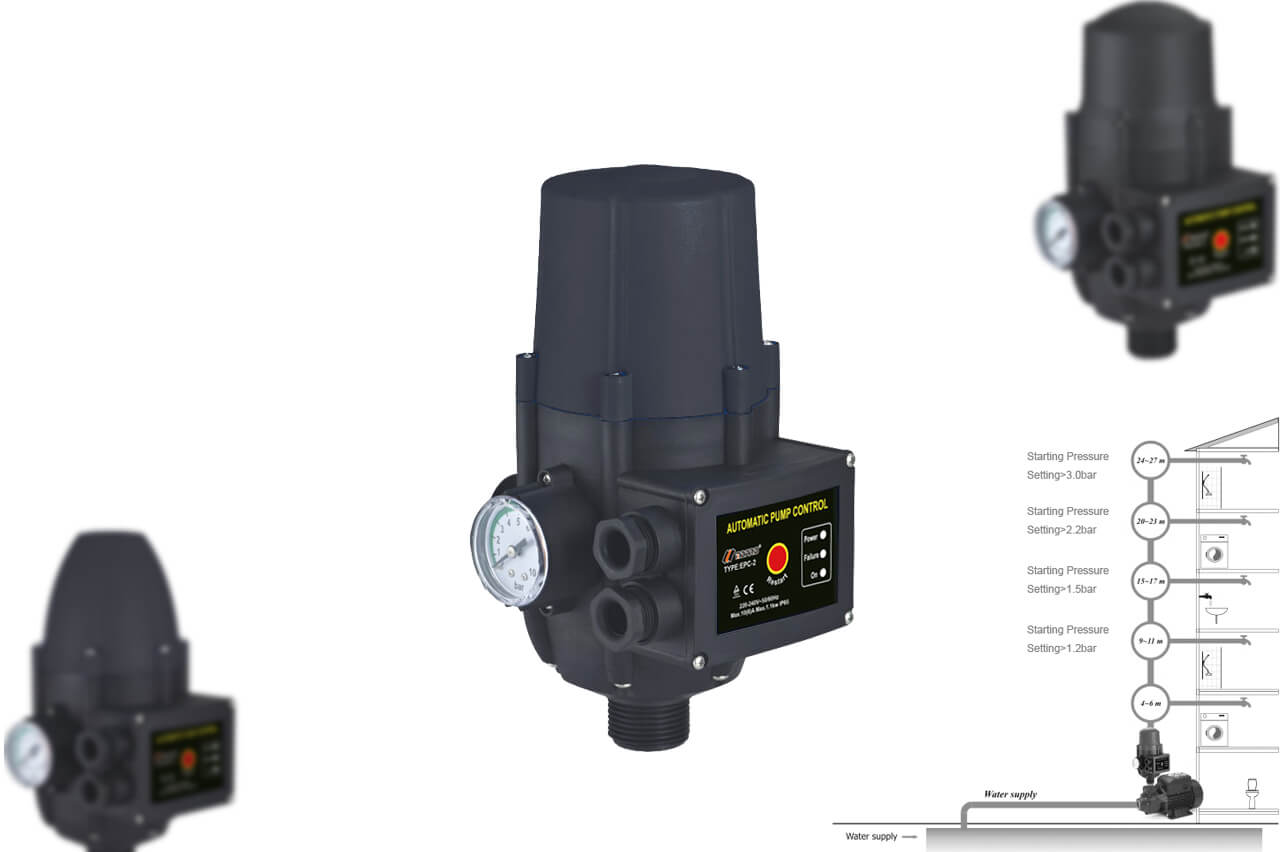

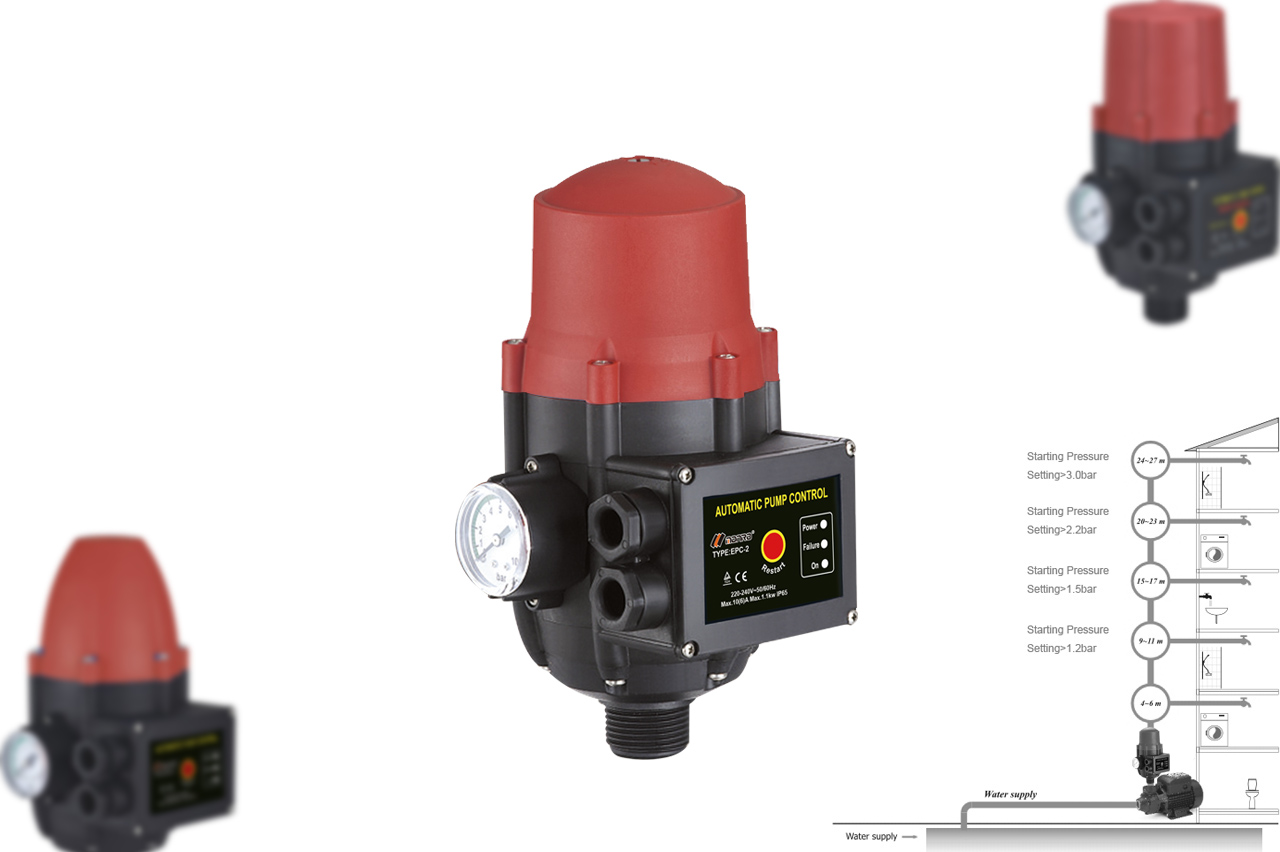

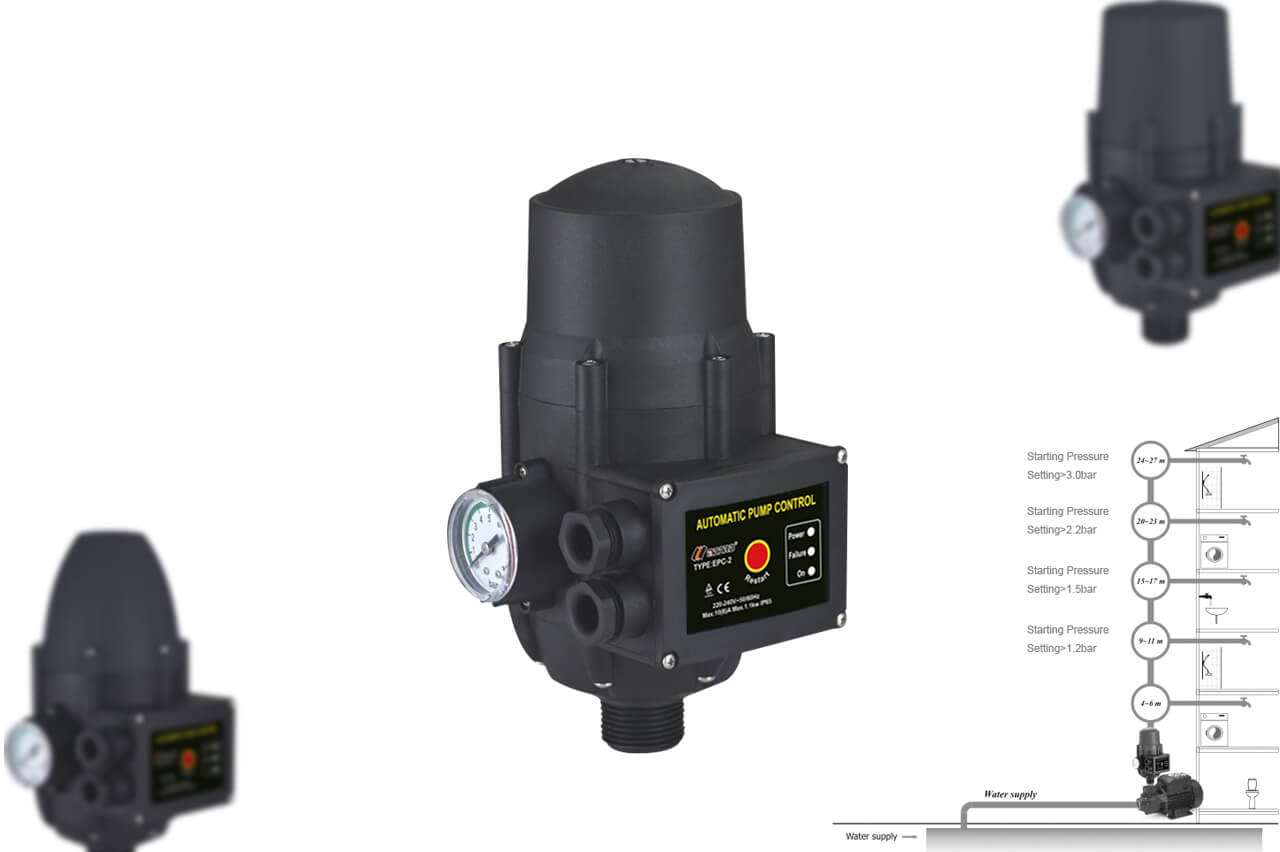

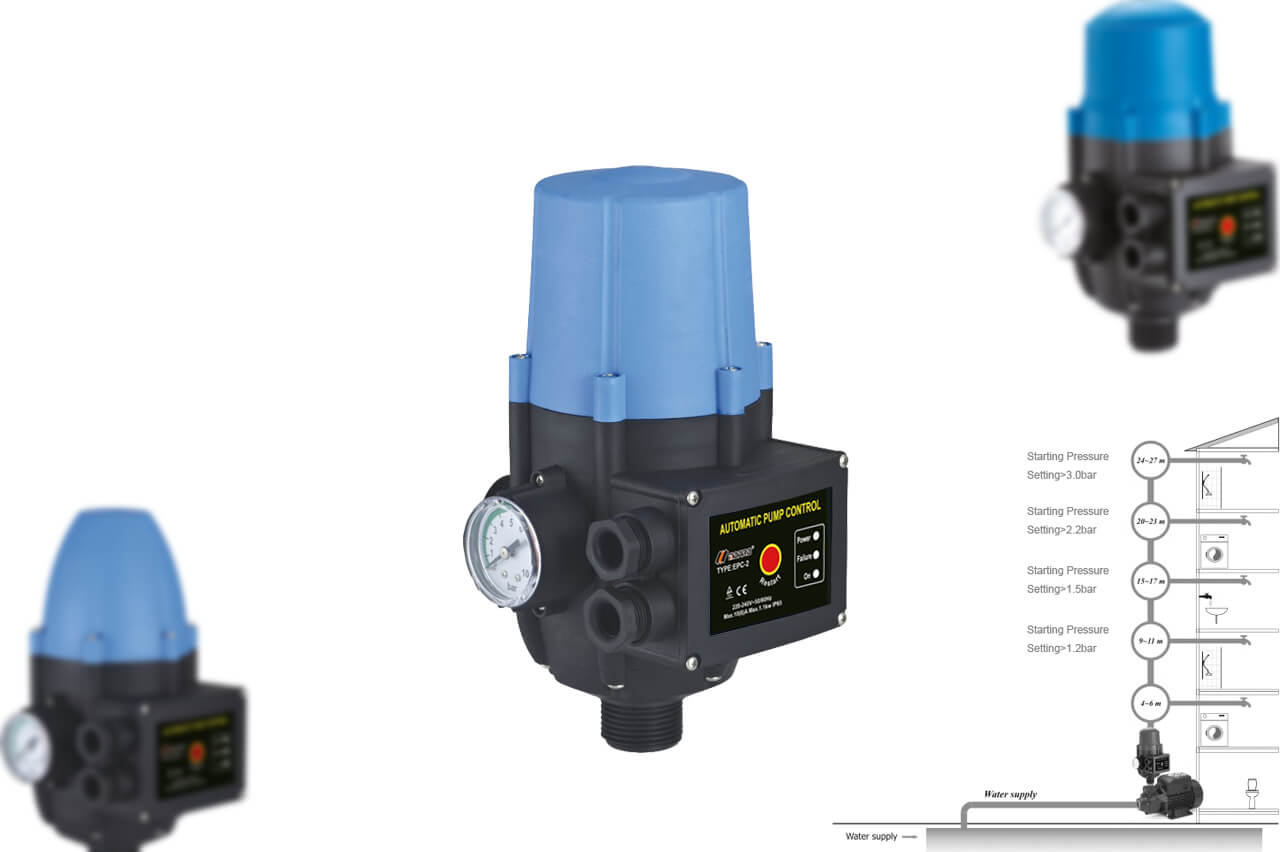

-Color:as customer require

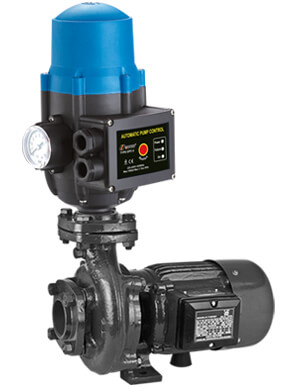

-R1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.
-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-R1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.
-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-R1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.
-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-R1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.
-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-R1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.
Where there is a pump,
there is a switch
Widely used in a variety of self-priming pumps, jet pumps, centrifugal pumps, garden pumps and other water supply systems

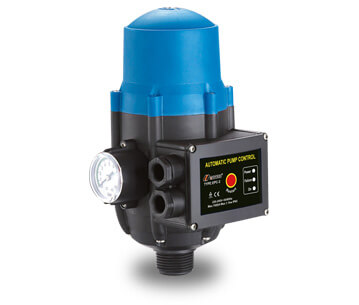

| EPC-2 Technical Parameters | |||
|---|---|---|---|
| Rated Voltage | 220-240V | 110-120V | 110-240V |
| Power Frequency | 50/60HZ | 50/60HZ | 50/60HZ |
| Max Using Current | 10A | 10A | 10A |
| Max Power |
1.1KW |
0.55KW |
1.1KW |
| Starting Pressure Setting |
1.2bar 1.5bar 2.2bar |
1.2bar 1.5bar 2.2bar |
1.2bar 1.5bar 2.2bar |
| Max Working Pressure | 10bar | 10bar | 10bar |
| Connection thread | R1" | R1" | R1" |
| Protection rating | IP65 | IP65 | IP65 |
| Max Working Pressure | 55℃ | 55℃ | 55℃ |
| S. NO. | Automatic controllers starting pressure | Water pump lift (meters) | Distance of valve and automatic controller (meters) |
|---|---|---|---|
| 1 | 1.2bar | >22m | <12m |
| 2 | 1.5bar | >25m | <15m |
| 3 | 2.2bar | >35m | <22m |
| Using Height | Operating Pressure Adjustment | Minimum Pump Pressure |
|---|---|---|
| 20M | 2.2bar | 3bar |
| 25M | 2.7 bar | 3.5bar |
Normal Packing:
Brand Backing（MOQ）
EPC series ≥ 1200pc
KRS series ≥ 3000pcs；
FPS series ≥ 2000pcs
Size:
| Cable size | Inner Box Size | Outside Carton Size | Quantity | N.W./G.W. |
|---|---|---|---|---|
| Without cable | 151*101*230MM | 47*43*25 CM | 12 PCS/CTN | 15/17 KGS |
| With cable | 152*128*232MM | 53*48*25 CM | 12 PCS/CTN | 15/17 KGS |
20GP Container: 5292 PCS
