Automatic Pump Control - EPC-9

Home / Products / Automatic Pump Control / EPC-9

  • 1 Year quality guarantee
  • More than 10 years experience
  • 100% inspection
  • Stable performance
  • Long life
  • Protection from dry running
  • Replaces the traditional expansion tank system, easy to install
  • 15 bar high pressure test

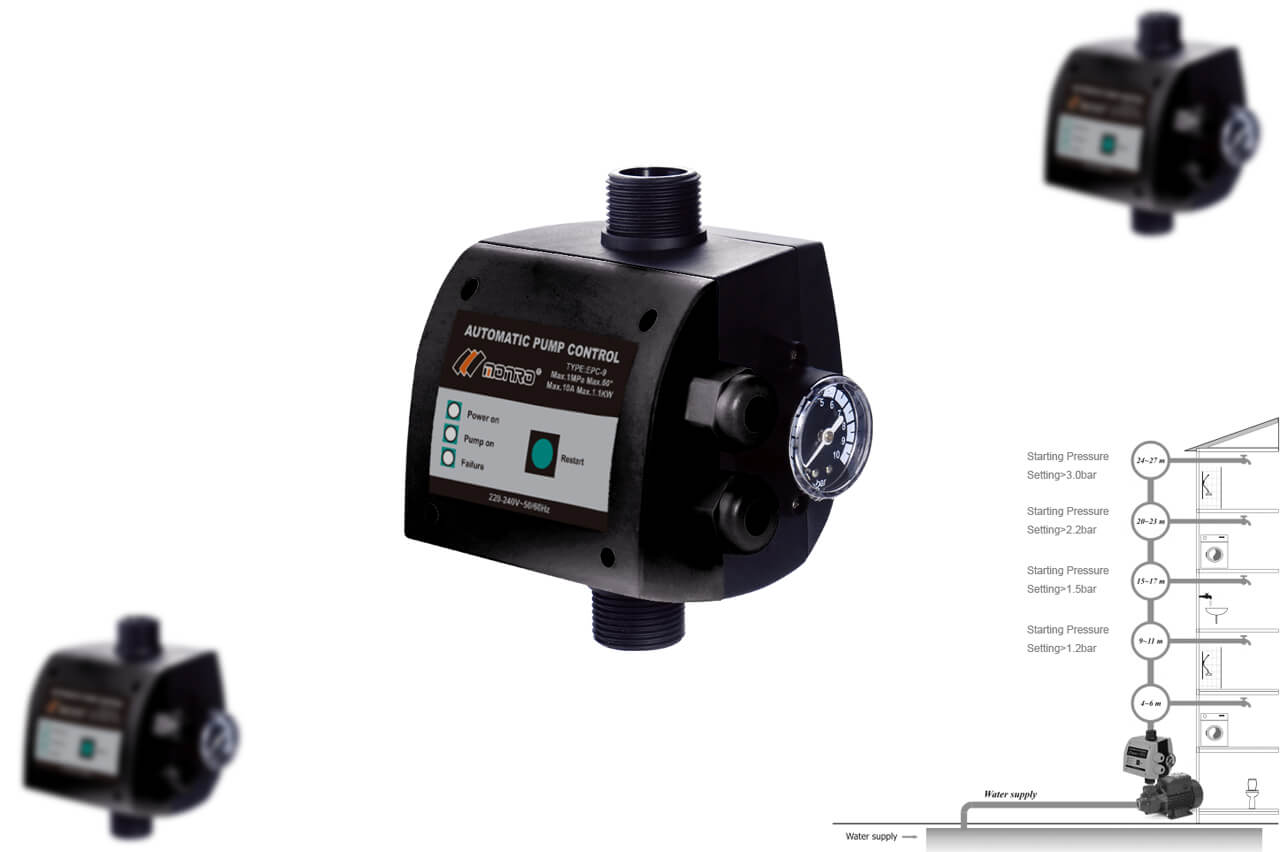

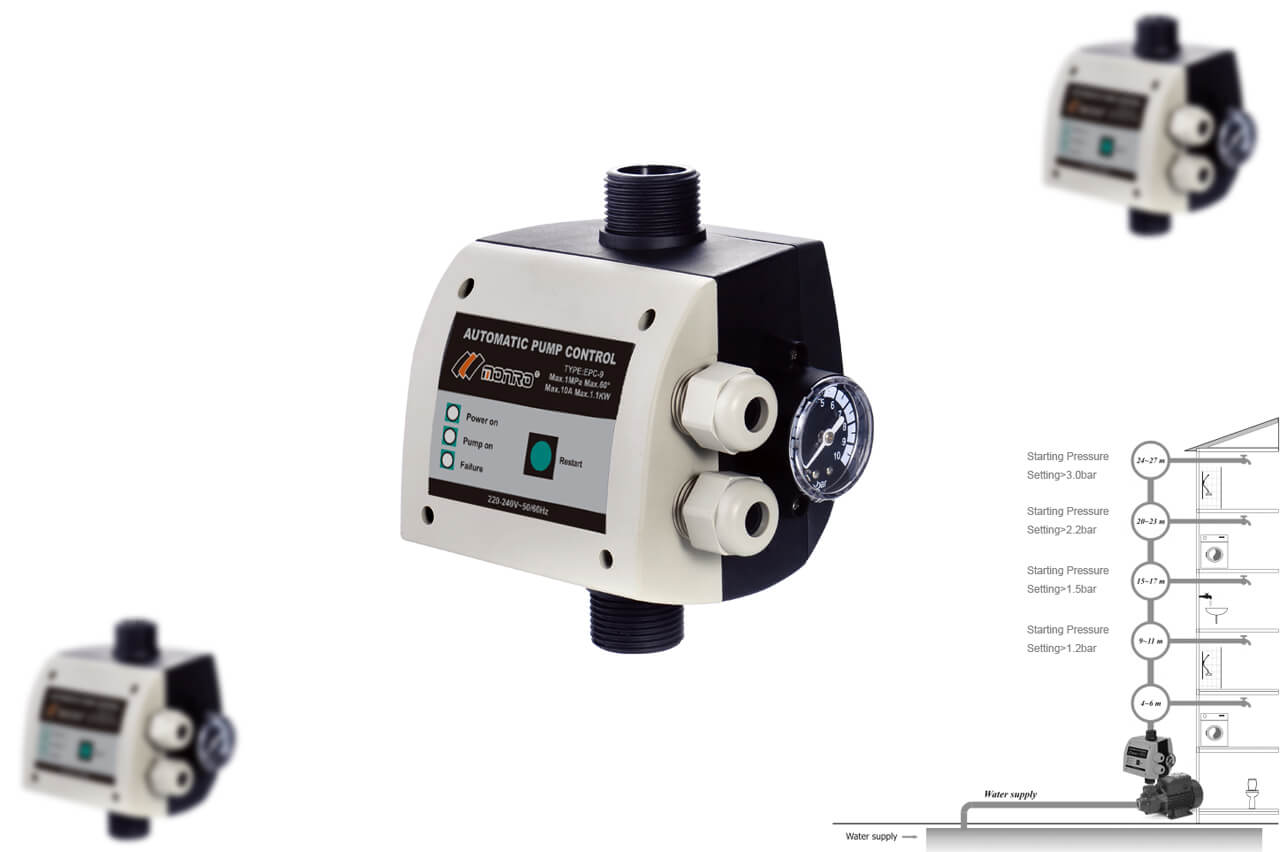

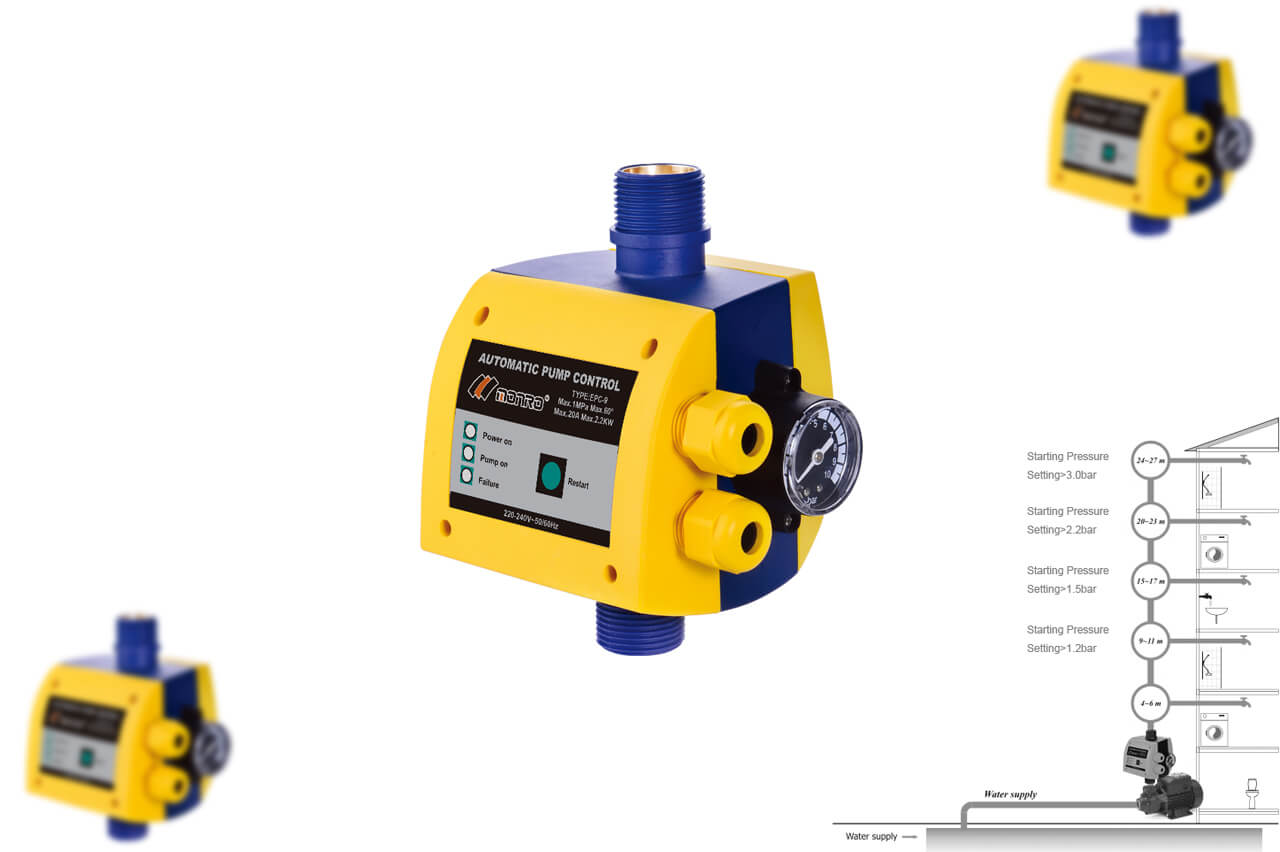

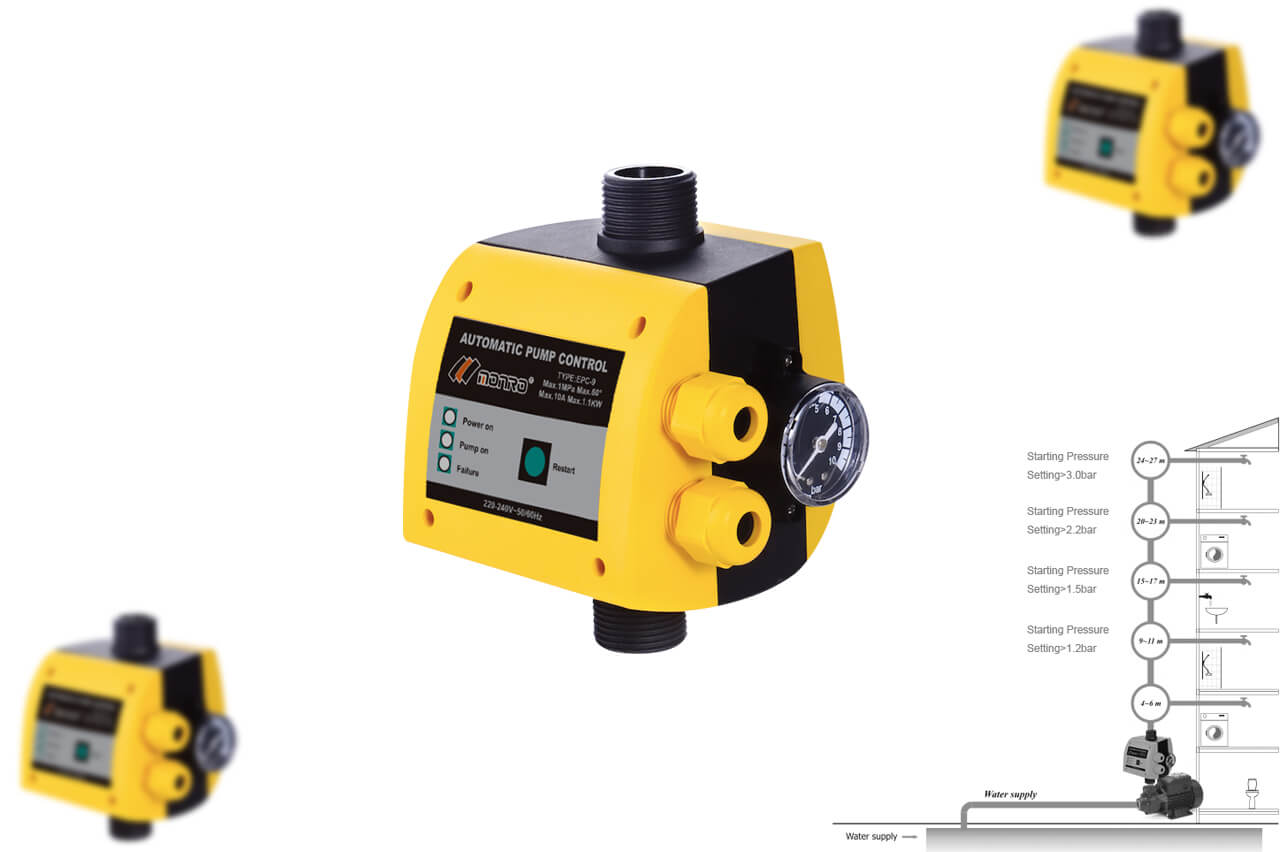

customization

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

contact us >

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

contact us >

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

contact us >

-Starting pessure is adjustable during installation, adjustment range:1.2bar-3.0bar
-Color:as customer require
-G1"plastic pipe joint for a quick connection to water pump.
-Power cable length and size can choose according to customers' needs.

contact us >



product application
ordinary wells and tube wells
household water booster
high buildings'water booster
irrigation system

Where there is a pump,
there is a switch

Widely used in a variety of self-priming pumps, jet pumps, centrifugal pumps, garden pumps and other water supply systems

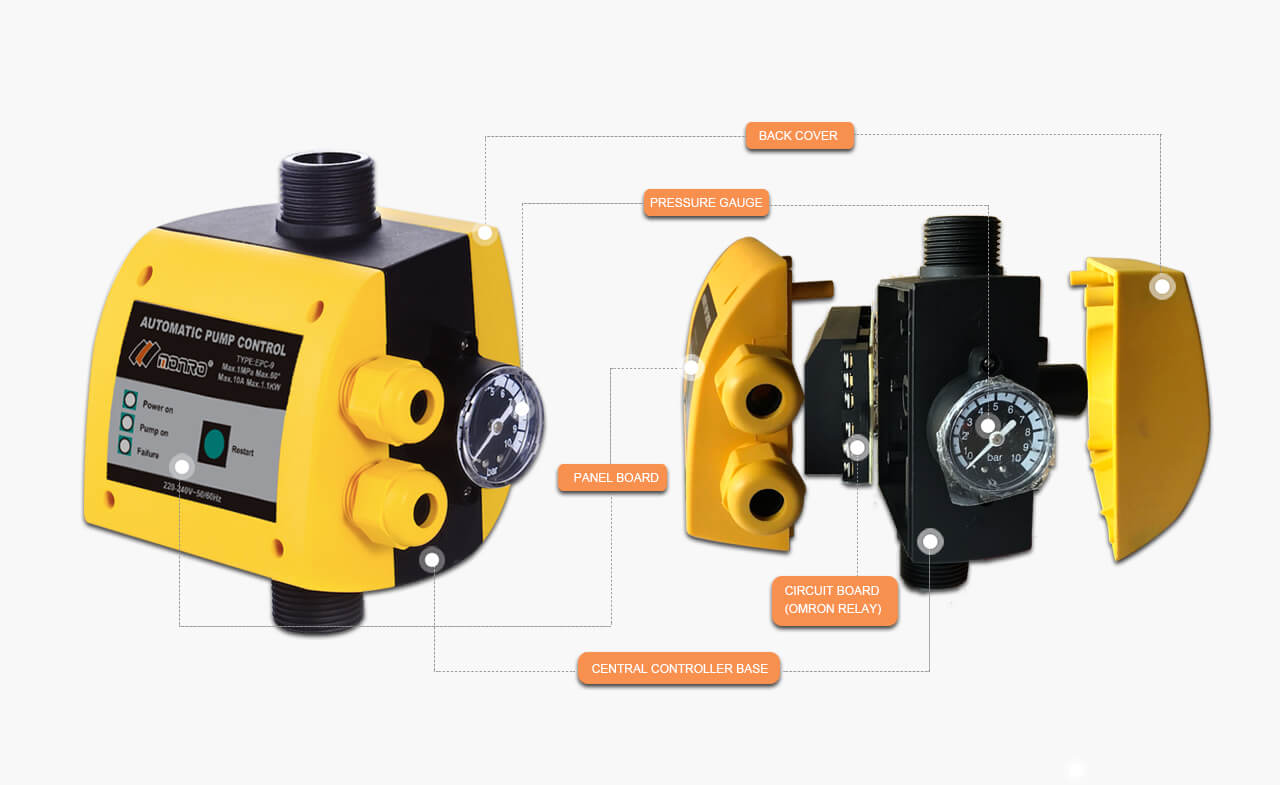

product details

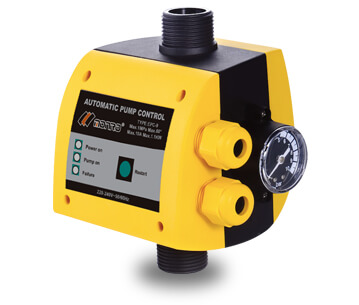

Product parameters



EPC-9 Technical Parameters
Rated Voltage 220-240V 110-120V 110-240V
Power Frequency 50/60HZ 50/60HZ 50/60HZ
Max Using Current 10A/30A 10A/30A 10A/30A
Max Power

1.1KW/2.2KW

0.55KW/1.1KW

1.1KW/2.2KW
Starting Pressure Setting

1.5bar-3.0bar

1.5bar-3.0bar

1.5bar-3.0bar
Max Working Pressure 10bar 10bar 10bar
Connection thread G1" G1" G1"
Protection rating IP54 IP54 IP54
Max Working Pressure 55℃ 55℃ 55℃
Choice： The automatic control and the water pump
S. NO. Automatic controllers starting pressure Water pump lift (meters) Distance of valve and automatic controller (meters)
1 1.2bar >22m <12m
2 1.5bar >25m <15m
3 2.2bar >35m <22m

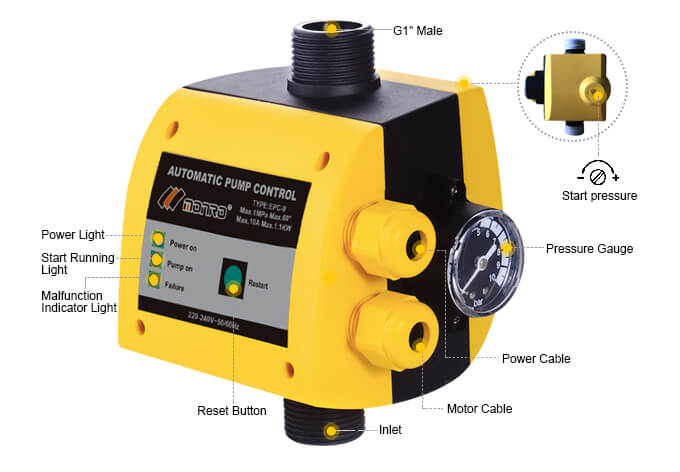

Product analysis
  • Relay：we use all original omron relay
  • Plastic parts: all is new material, no recycling;
    high strength reinforced polyamide.

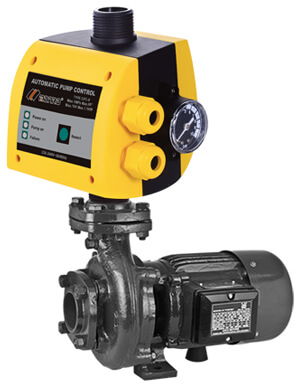

Installation Notes
The pressure contorl can be installed direactly on the pump, or between the pump and the first tap.
TIPS: This controller can only be used in clean water.


NORMAL PACKING
1 2 3 4

Normal Packing:

  • Outside Canton
  • Inside Box
  • Manual Book
  • Label

Brand Backing（MOQ）

EPC series ≥ 1200pc

KRS series ≥ 3000pcs；

FPS series ≥ 2000pcs


Size:

Inner Box Size: 172*155*135 MM

Outside Carton size: 48.5*36*29 CM

Quantity: 12 PCS/CTN

N.W./G.W.: 8.5/10.5 KGS

20GP Container: around 6636 PCS


we have our own professional designers to meet any of your requirements.
Welocme to contact us!

Thank you

Please look forward to more products
