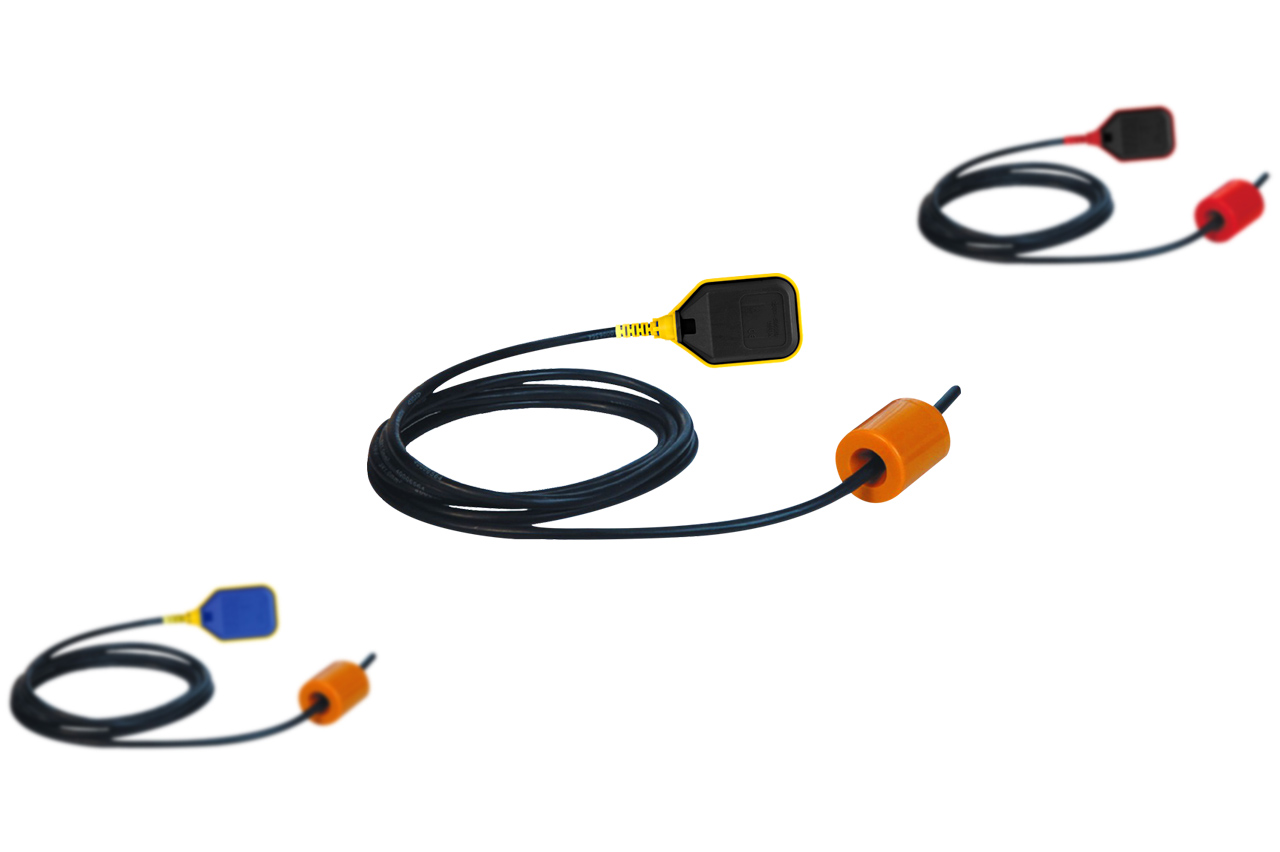

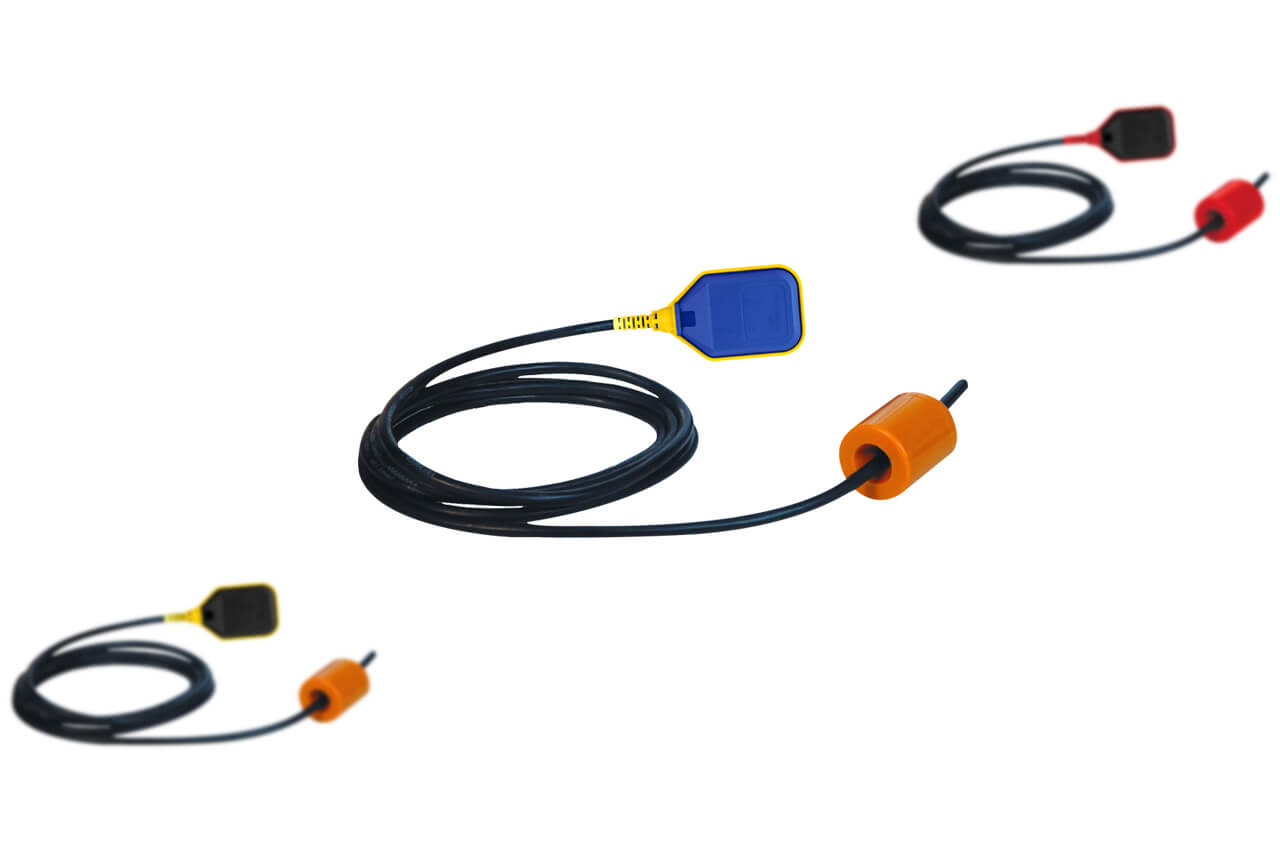

1.Single function or double function
2.Color as customer require
3.Cable length as customer require (PVC or RUBBER)
1.Single function or double function
2.Color as customer require
3.Cable length as customer require (PVC or RUBBER)
1.Single function or double function
2.Color as customer require
3.Cable length as customer require (PVC or RUBBER)

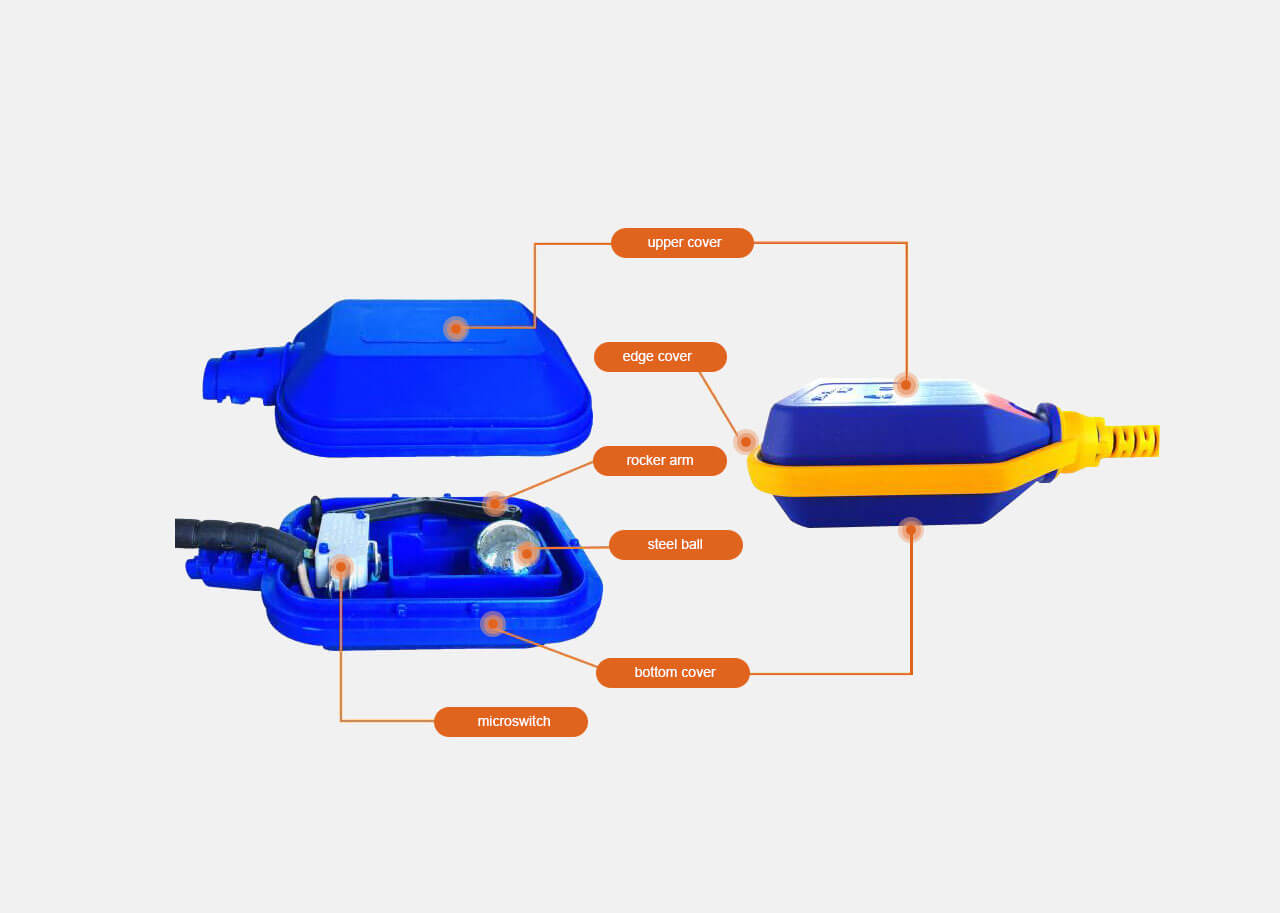

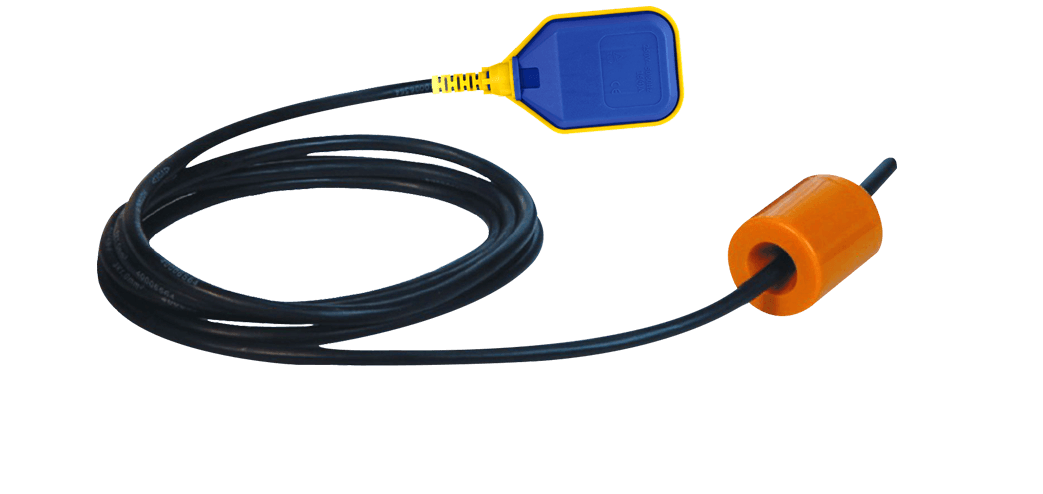

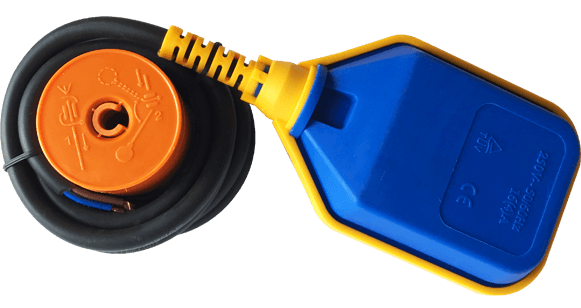

Float level controller
Thickening cable protector to protect the cable core from the bad environment damage effectively and increase the anti-aging ability.
counter weight
Play a role in supporting fixed；fixed cable；more stable and more convenient.
high cable
Different cable size can choose
high quality copper
Good electrical conductivity; More durable
INSTRUCTION FOR USAGE:
（1）instrucion for water-filling operation:

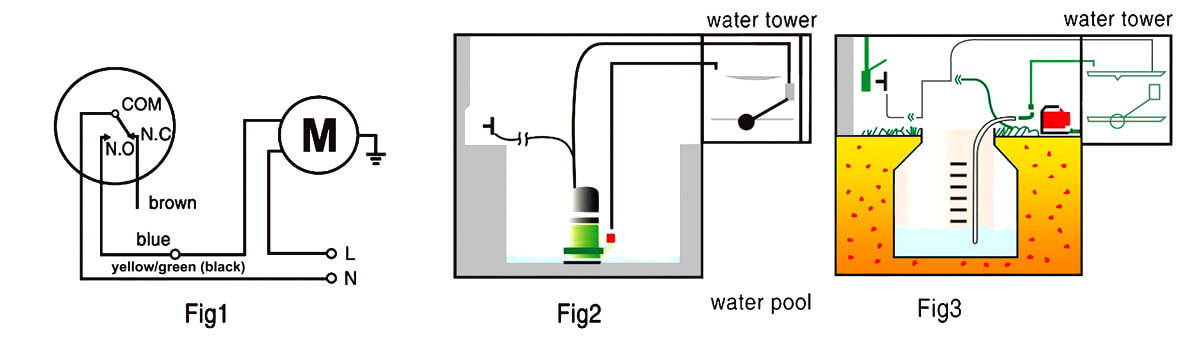

Connect the blue cable of the floating control to the electrical pump and the yellow-green or black one to a neutral wire as shown in Fig.1 for water filling operation(The brown cable shall be kept insulated.) For detailed installation instruction, please refer to Fig.2 and 3.

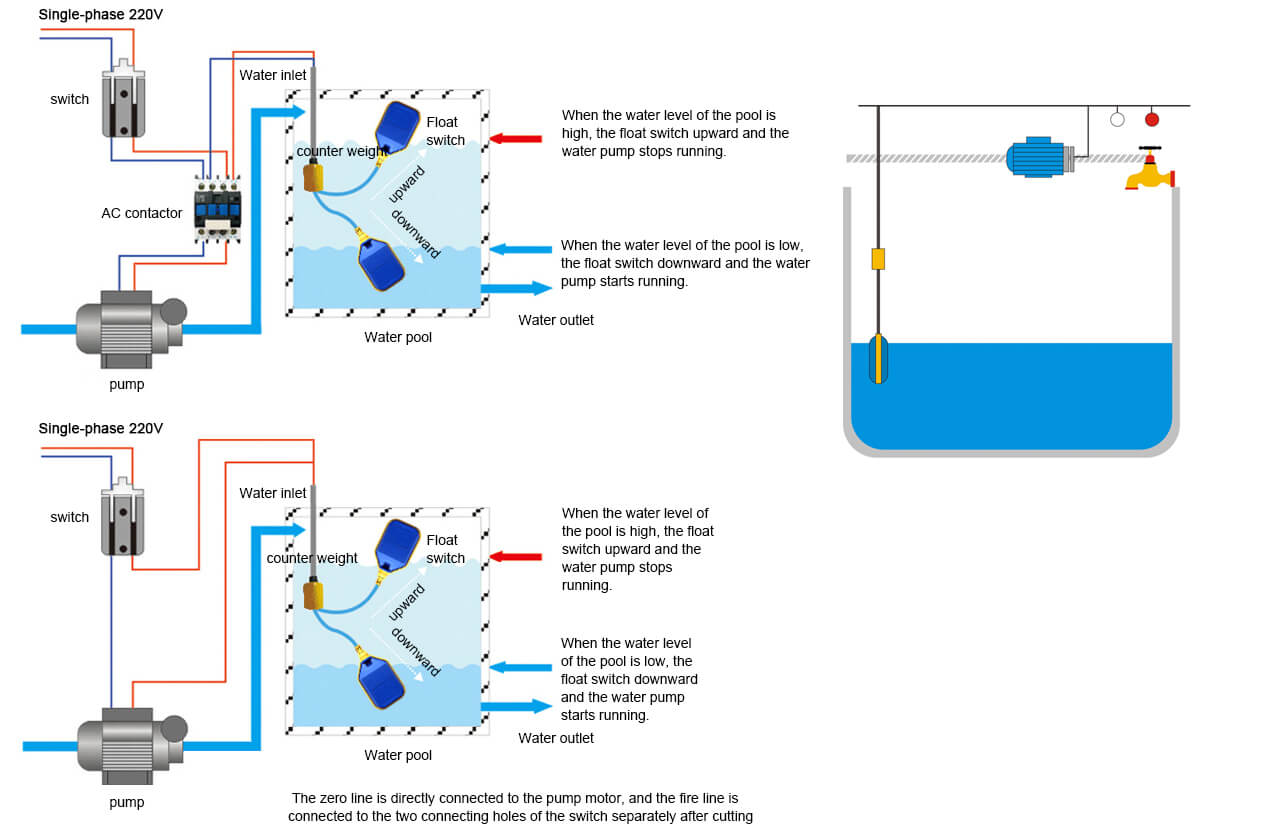

Function of Fig 2 & 3:Electrical pump begins to fill water when the water in water tank drops to a certain level and stops its working when water rises to certain level.
(2) lnstruction for water-emptying operation:

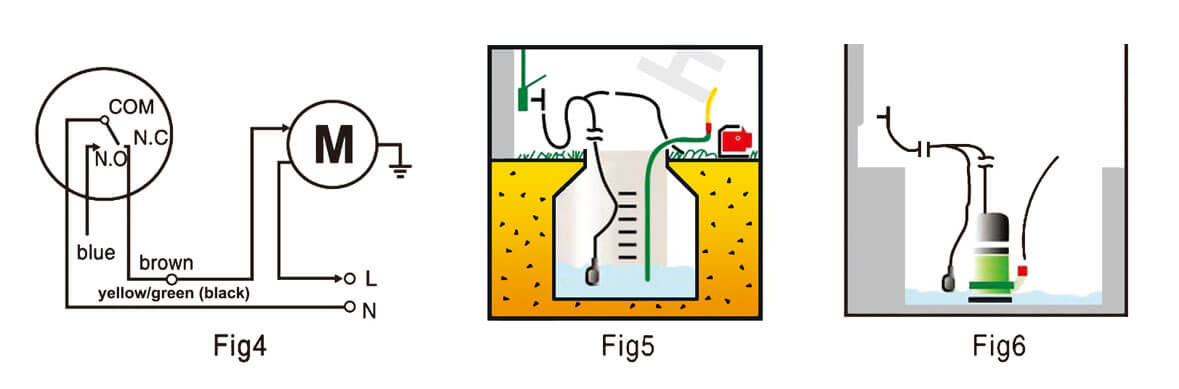

Connect thethe brown cable to the water pump and the yellow-green or black one to a neutral wire as shown in Fig. 4 for water emptying operation (The blue cable shall be kept insulated). For detailed installation instruction, please refer to Fig.5 and 6.

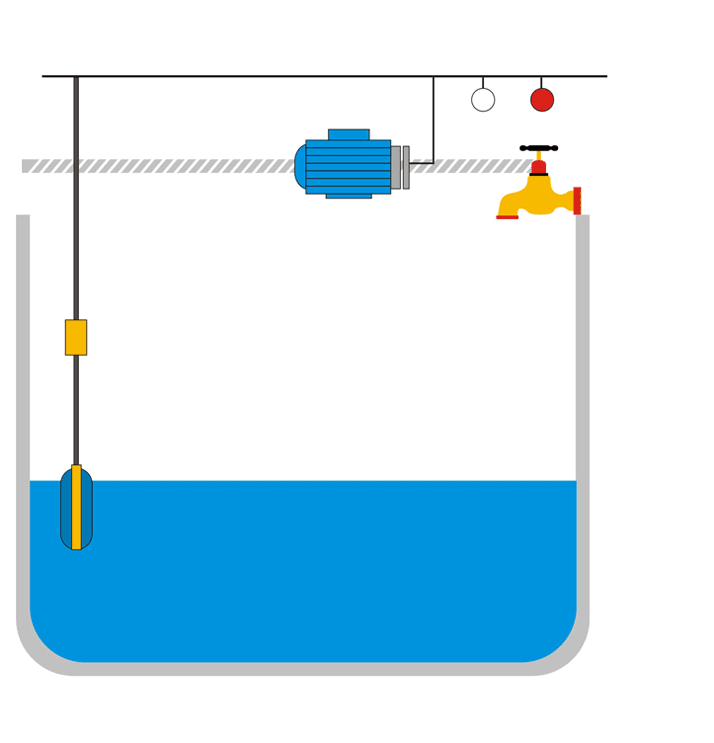

Function of Fig.5&6:Electrical pump stops when the water level in the water pool drops to a certain level and starts to emptying water again when the water level increases.
| FPS-2 Technical Parameters | |||
|---|---|---|---|
| Rated Voltage | 250V | 250V | |
| Power Frequency | 50/60HZ | 50/60HZ | |
| Relay Current | 10(4)A/ 10(8)A | 16(4)A/ 16(8)A | |
| Protection rating | IP68 | IP68 | |
| Max Working Pressure | 55℃ | 55℃ | |
NORMAL PACKING:
Brand Backing（MOQ）
EPC series ≥ 1200pcs；
KRS series ≥ 3000pcs；
FPS series ≥ 2000pcs
Size:
| Cable size | Inner Box Size | Outside Carton Size | Quantity | N.W./G.W. |
|---|---|---|---|---|
| 2m | 220*80*110 MM | 45*42*24 CM | 20 PCS/CTN | 11.5/13 KGS |
| 3m | 220*80*110 MM | 45*42*24 CM | 20 PCS/CTN | 13/15 KGS |
| 5m | 220*80*110 MM | 45*42*24 CM | 20 PCS/CTN | 16.5/18.5 KGS |
| 10m | 217*240*67 MM | 49*45*36 CM | 20 PCS/CTN | 29/32 KGS |
| 20m | 260*260*80 MM | 53.5*42.5*27.5 CM | 10 PCS/CTN | 25/27 KGS |
Thank you
Please look forward to more products
