--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch （Quantity≥2000PCS）
--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch （Quantity≥2000PCS）
Wish our switch clear off all the
water problems of you.
| KRS-4 Technical Parameters | |||
|---|---|---|---|
| Rated Voltage | 230V; 110V | ||
| Frequency | 50/60HZ | ||
| Rated Current | 12A/1.5HP; 20A/2HP | ||
| Min.cut-in | 20PSI | ||
| Max.cut-out | 120PSI | ||
| Pressure range | 20-40PSI;30-50PSI;40-60PSI;50-70PSI (according to requirements of customers) |
||
| Contacts | Silver; Copper | ||

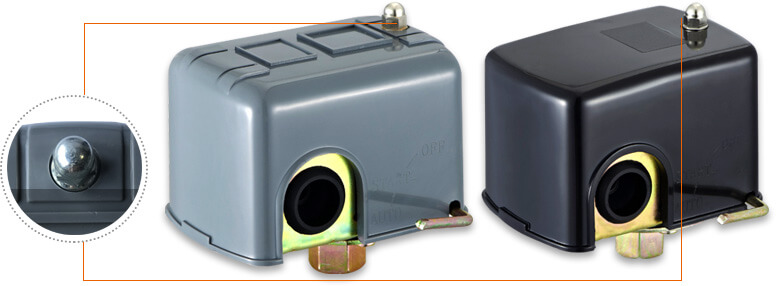

| Cover color | Grey; Black | ||
| Cover shape | Steel fixed; plastic fixed; | American standard | |
| Base color | Color plated; white plated | ||
| Flange | Steel; Plastic | ||
| Screw type | Female | Male | |
| Screw size | Fix nut: 1/4";3/8" Rotary: 1/4"; 3/8" |
1/4" | |
steel fixed
① white plated
① white plated
② color plated
Rotary; Female:1/4’’;3/8’’
Male: 1/4’’
Fix nut; Female：1/4’’;3/8’’
UL American standard
Normal cover

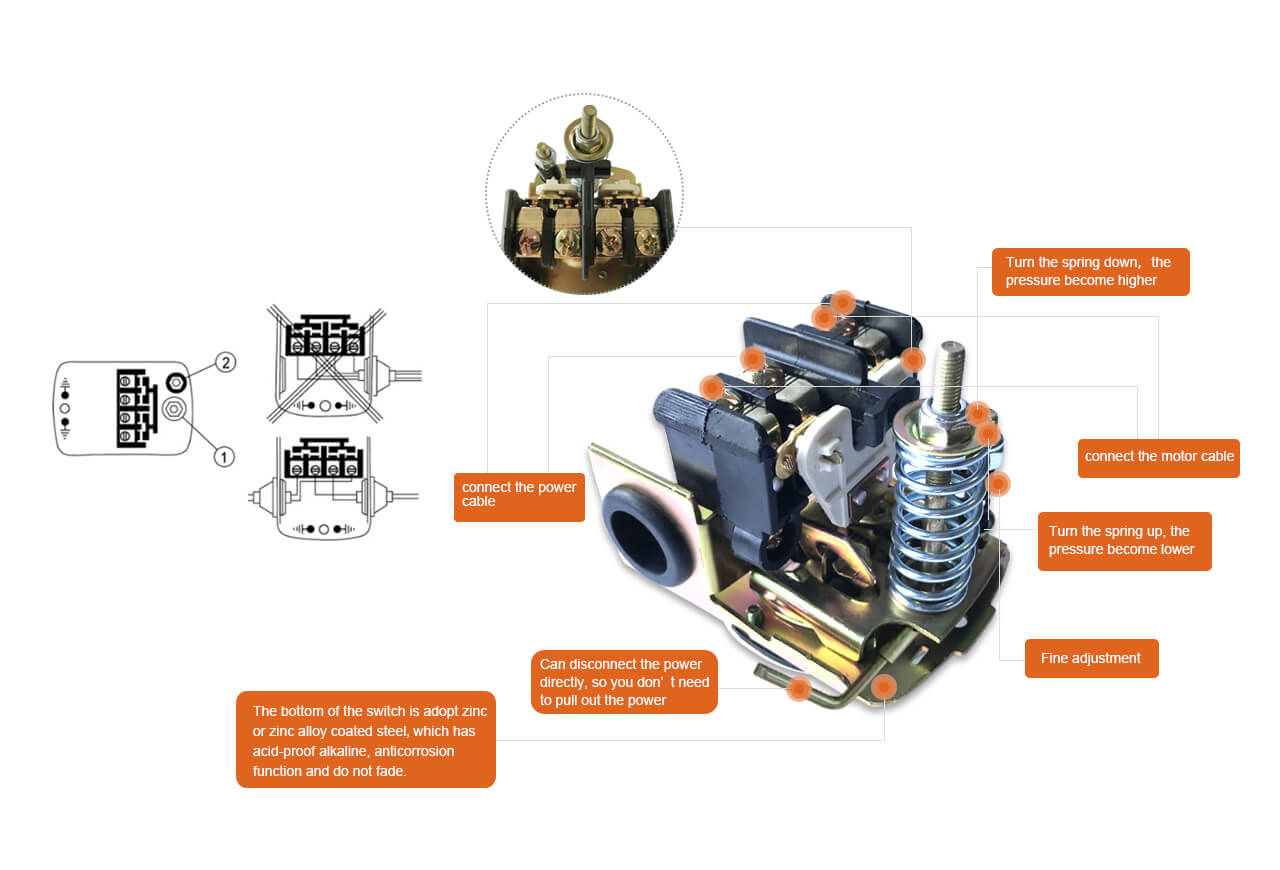

Pressure regulation step:
1.Cut-in: turn Range Nut ① down for higher cut-in pressure.
2.Cut-out: turn Range Nut ② down for higher cut-out pressure.
Normal Packing:
Brand Backing（quantity requirement）
EPC series ≥ 1200pcs；
KRS series ≥ 3000pcs；
FPS series ≥ 2000pcs
Size:
Inner Box Size: 100*90*100 MM
Outside Carton Size: 51*47*21 CM
Quantity: 50 PCS/CTN
N.W./G.W.: 19/21 KGS
Thank you
Please look forward to more products
