--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
1/4’’ Male
--Can print brand on switch （Quantity≥2000PCS）
--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
1/4’’ Male
--Can print brand on switch （Quantity≥2000PCS）
Wish our switch clear off all the
water problems of you.
| KRS-5 Technical Parameters | |||
|---|---|---|---|
| Rated Voltage | One phrase 240V; Three phrase 380V | ||
| Rated Current | 16A | ||
| Min.cut-in | 15PSI | ||
| Max.cut-out | 80PSI | ||
| Pressure range | 20-40PSI; 30-50PSI; 40-60PSI (according to requirements of customers) |
||
| Cover color | Black | ||
| Base color | Color plated; white plated | ||
| Flange | Steel | ||
| Screw type | Female | Male | |
| Screw size | Fix nut: 1/4"; 3/8" Rotary: 1/4"; 3/8" |
1/4" |
|

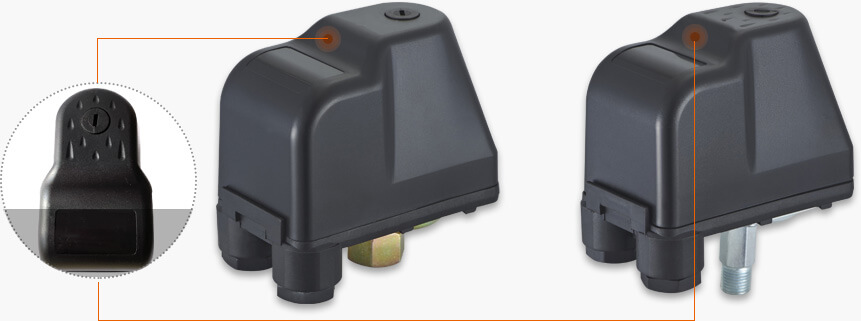

Normal cover
② color plated
① white plated
Fix Nut; Female 1/4’’; 3/8’’
Rotary; Female 1/4’’; 3/8’’
Male 1/4’’; 36mm/42mm
Normal Packing:
Brand Backing（quantity requirement）
EPC series ≥ 1200pcs；
KRS series ≥ 3000pcs；
FPS series ≥ 2000pcs
Female:
Inner Box Size: 105*65*105 MM
Outside Carton Size: 54*34*23 CM
Quantity: 50 PCS/CTN
N.W./G.W.: 19/21 KGS
Male:
Inner Box Size: 105*65*125 MM
Outside Carton Size: 54*26.5*35 CM
Quantity: 50 PCS/CTN
N.W./G.W.: 19.5/22 KGS
Thank you
Please look forward to more products
