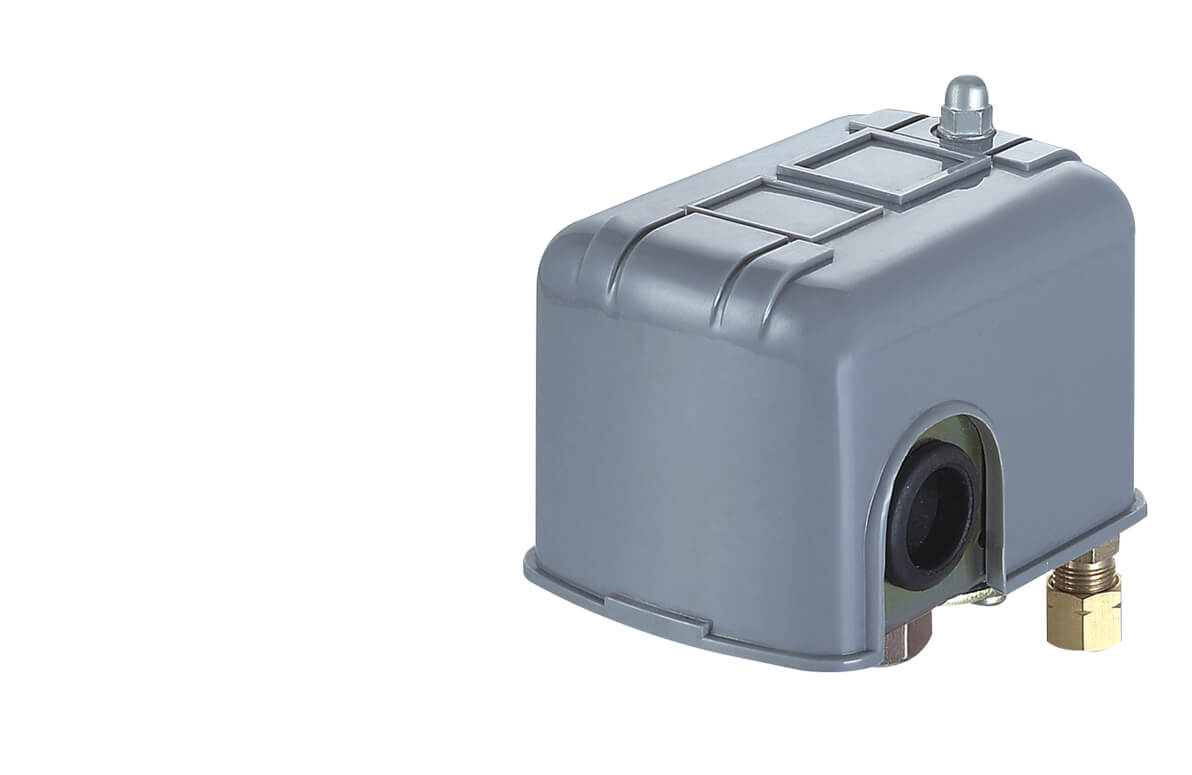

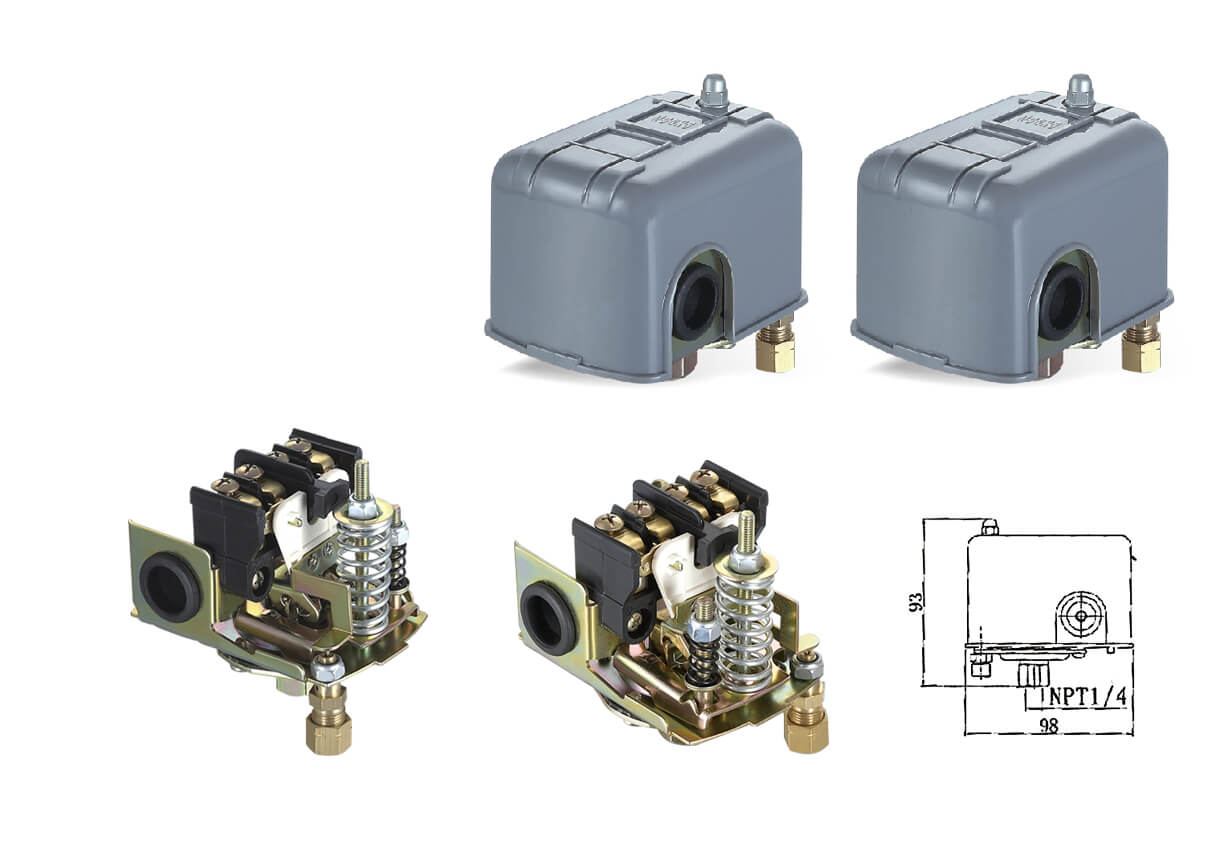

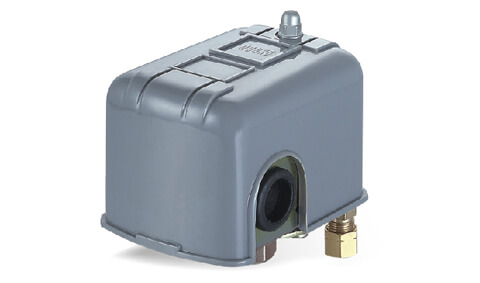

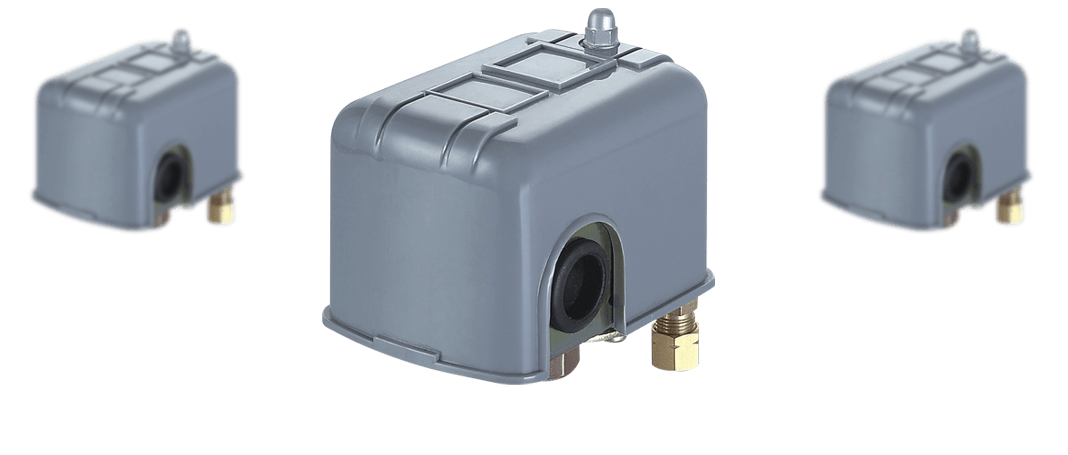

Air Compressor Pressure Control - KRQ-5

  • 1 Year quality guarantee
  • More than 10 years experience
  • 100% inspection
  • Stable performance
  • Long life
  • Protection from dry running
  • Replaces the traditional expansion tank system, easy to install
  • 15 bar high pressure test

-Pressure switch used for air compressors.
-The switch start and stop the air compressor automatically according to the setting pressure value.
-Hydraulics connection can choose:l/4"Male&Female.
-Air-relief valve with delayed closing systsm.
-Customized setting.

contact us >


-Crust according to customers' needs.
-Hydraulics connection according to customerneeds'

-Air-relief valve of 6mm or l/4"diameter pipe.

-Pressure setting according to customer' s needs.

KRQ-5 Technical Parameters
Pressure  Range 20-175PSI
Pressure Setting 20-50PSI  30-60PSI  40-70PSI  50-80PSI  95-125PSI  135-175PSI
Rated Current 12A
Rated Votage 110V-240V
Frenquency 50/60HZ
Max Ambient Temperature


Protection Degree IP20
