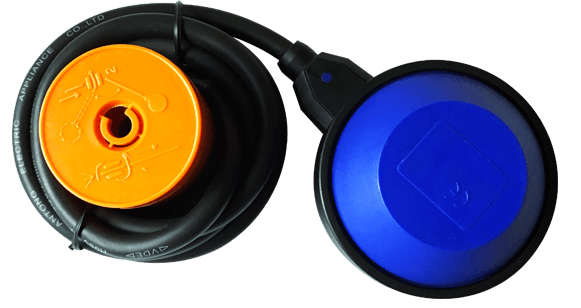

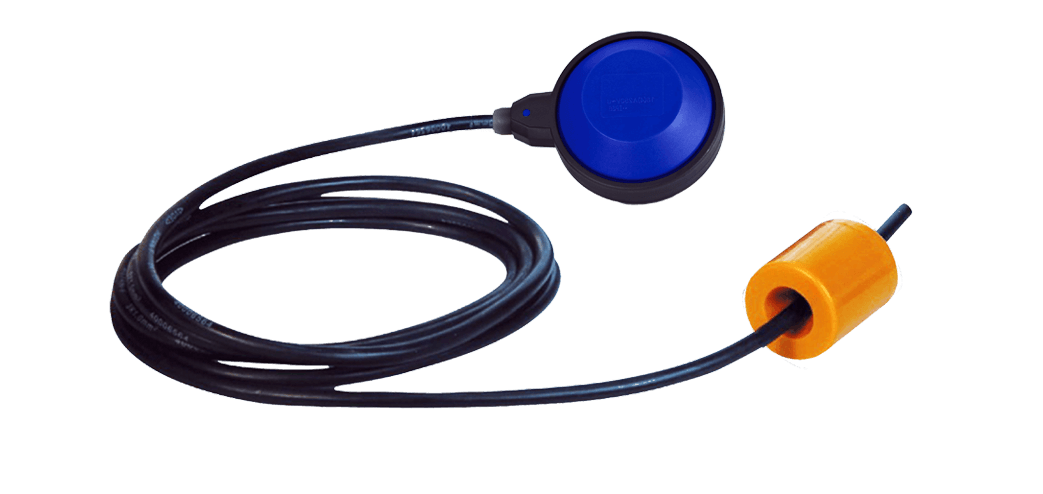

Float level controller
Thickening cable protector to protect the cable core from the bad environment damage effectively and increase the anti-aging ability.
Play a role in supporting fixed；fixed cable；more stable and more convenient.
Different cable size can choose
high quality copper
Good electrical conductivity; More durable
INSTRUCTION FOR USAGE:
（1）instrucion for water-filling operation:

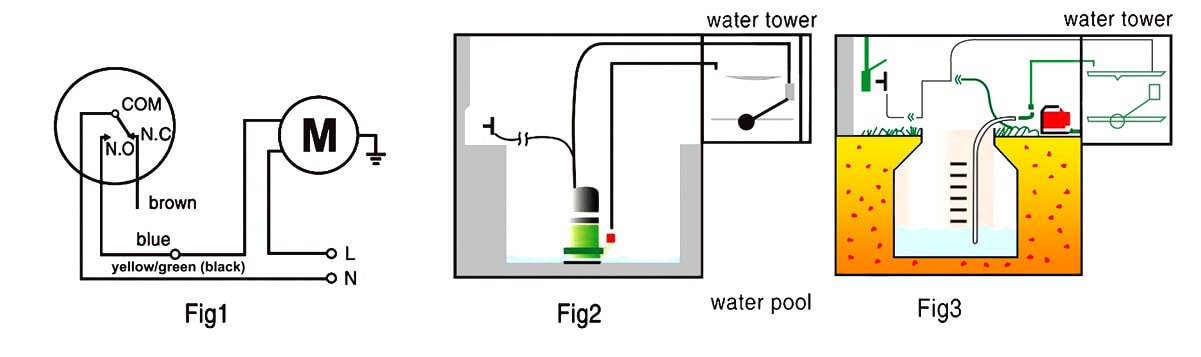

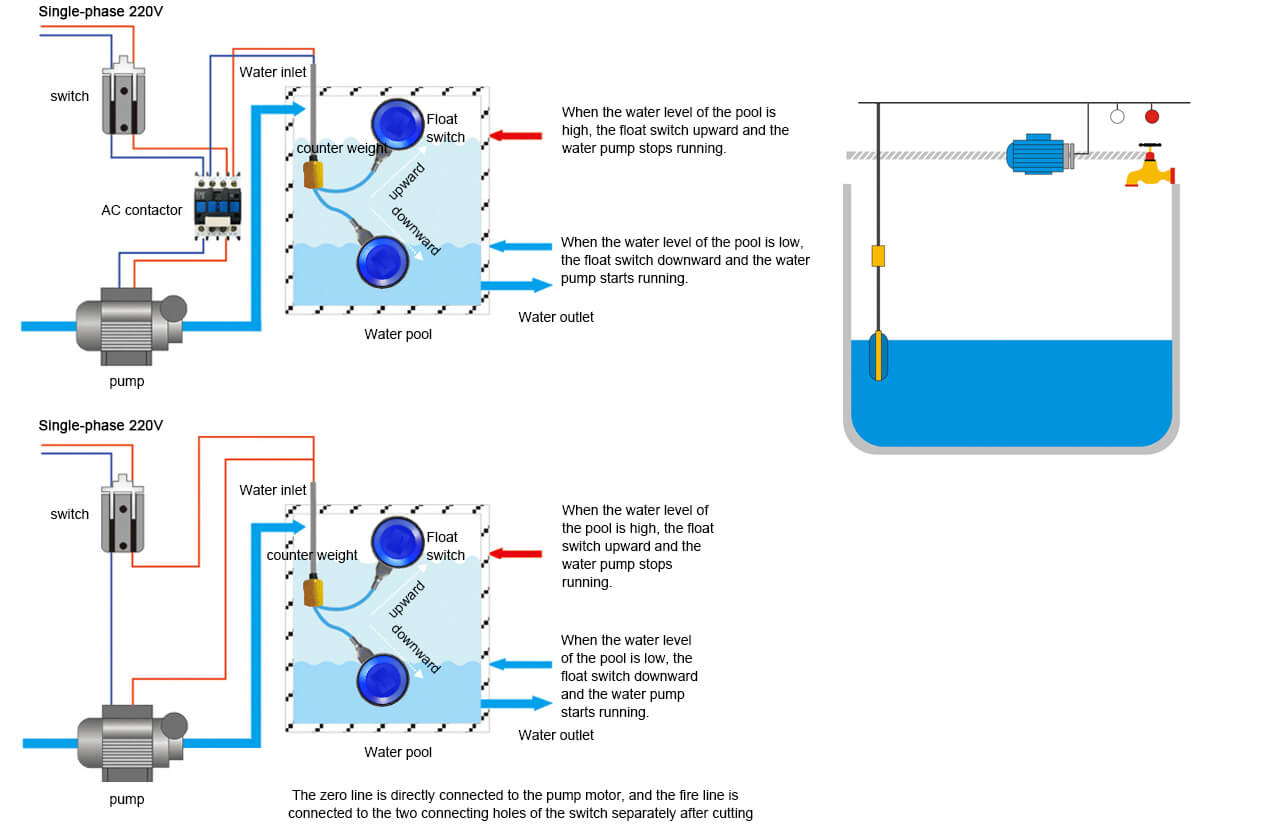

Connect the blue cable of the floating control to the electrical pump and the yellow-green or black one to a neutral wire as shown in Fig.1 for water filling operation(The brown cable shall be kept insulated.) For detailed installation instruction, please refer to Fig.2 and 3.

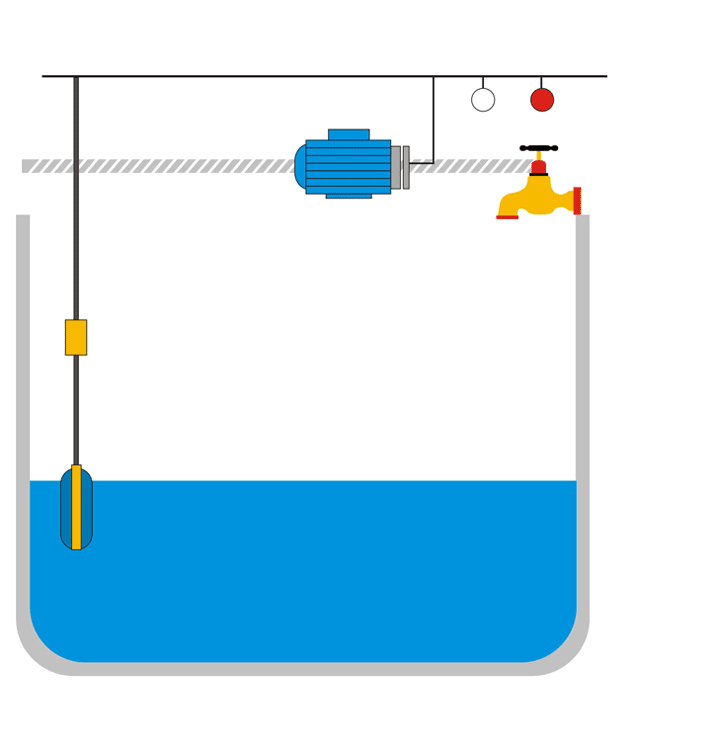

Function of Fig 2 & 3:Electrical pump begins to fill water when the water in water tank drops to a certain level and stops its working when water rises to certain level.
(2) lnstruction for water-emptying operation:

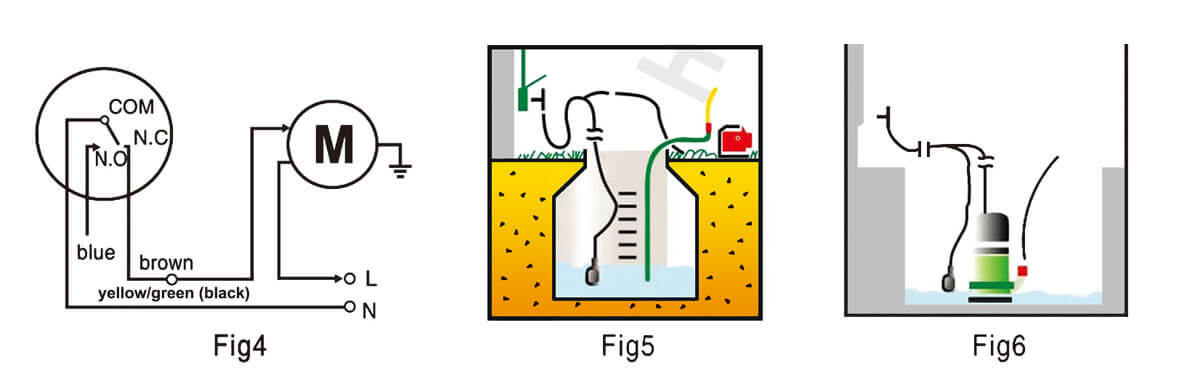

Connect thethe brown cable to the water pump and the yellow-green or black one to a neutral wire as shown in Fig. 4 for water emptying operation (The blue cable shall be kept insulated). For detailed installation instruction, please refer to Fig.5 and 6.
Function of Fig.5&6:Electrical pump stops when the water level in the water pool drops to a certain level and starts to emptying water again when the water level increases.
|FPS-4 Technical Parameters|
|Relay Current||10(4)A/ 10(8)A||16(4)A/ 16(8)A|
|Max Working Pressure||55℃||55℃|
EPC series ≥ 1200pcs；
KRS series ≥ 3000pcs；
FPS series ≥ 2000pcs
|Cable size||Inner Box Size||Outside Carton Size||Quantity||N.W./G.W.|
|2m||220*80*110 MM||45*42*24 CM||20 PCS/CTN||11.5/13 KGS|
|3m||220*80*110 MM||45*42*24 CM||20 PCS/CTN||13/15 KGS|
|5m||220*80*110 MM||45*42*24 CM||20 PCS/CTN||16.5/18.5 KGS|
|10m||217*240*67 MM||49*45*36 CM||20 PCS/CTN||29/32 KGS|
|20m||260*260*80 MM||53.5*42.5*27.5 CM||10 PCS/CTN||25/27 KGS|
