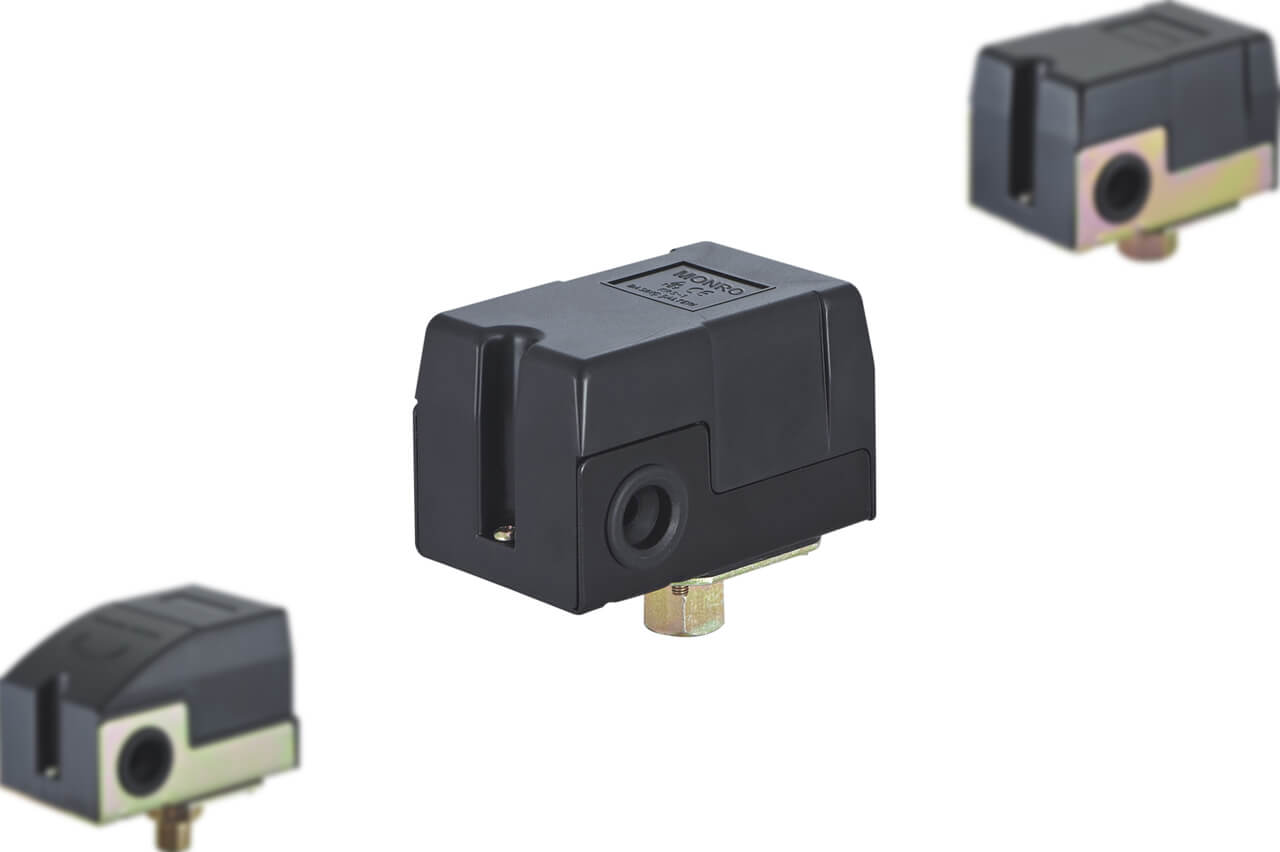

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch （Quantity≥2000PCS）

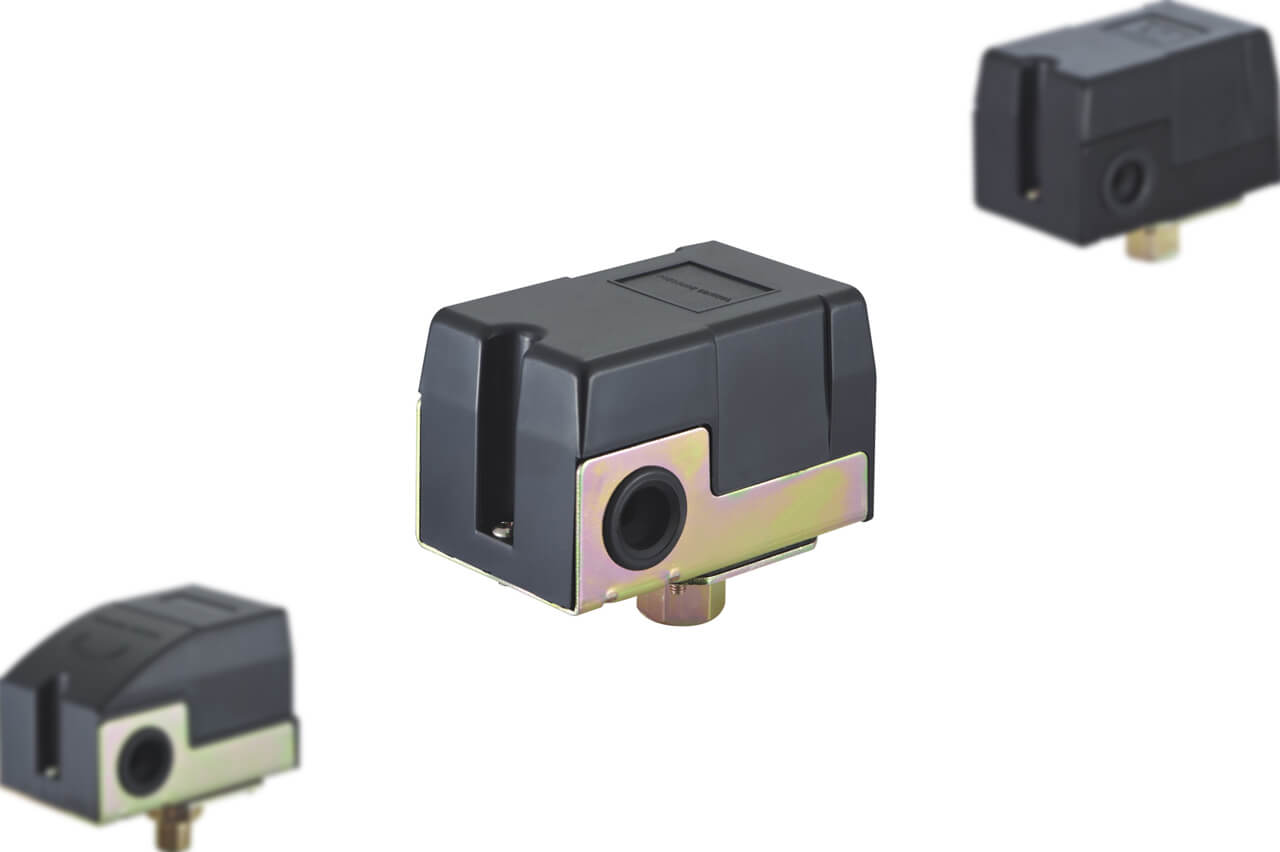

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch （Quantity≥2000PCS）
.jpg?imageView2/2/format/jp2)

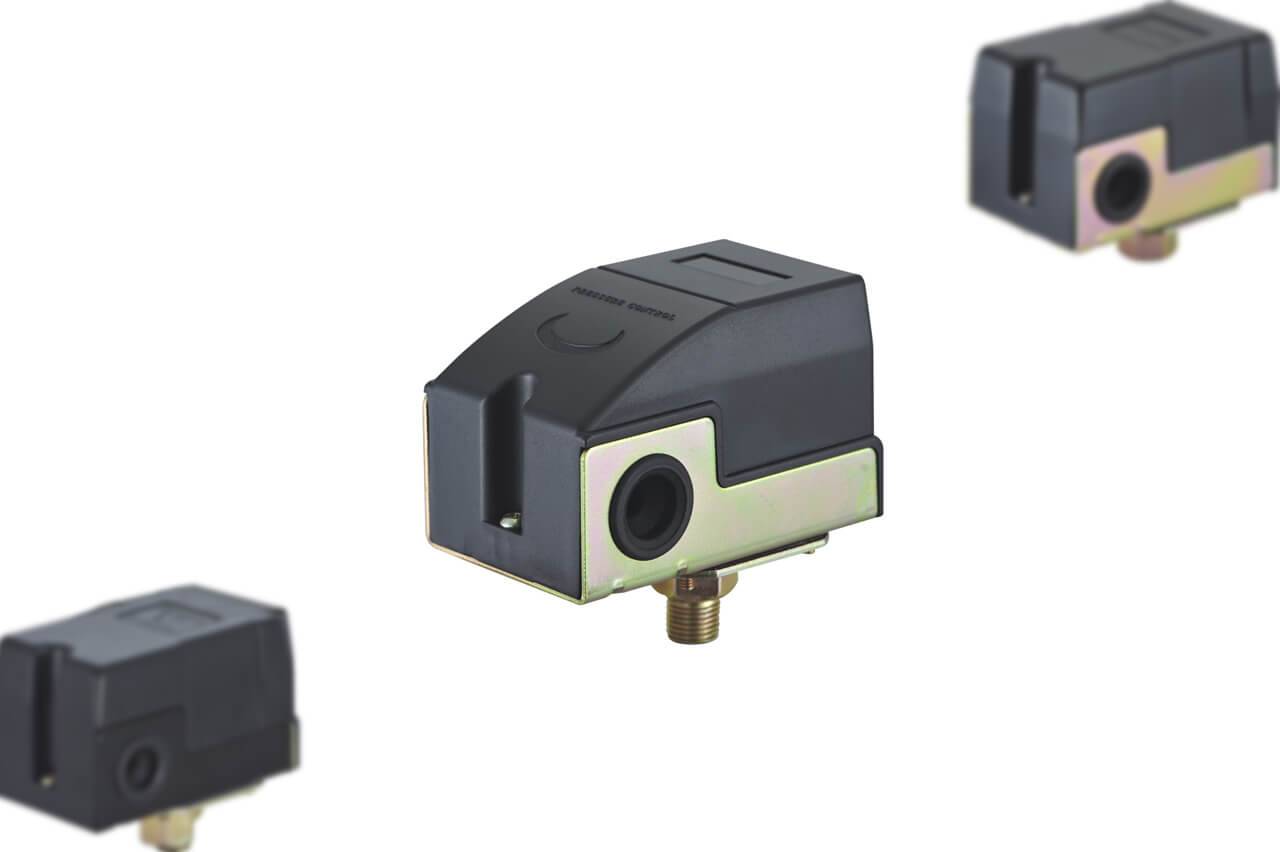

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch （Quantity≥2000PCS）
Wish our switch clear off all the
water problems of you.
| KRS-1 Technical Parameters | |||
|---|---|---|---|
| Rated Voltage | 230V; 110V | ||
| Frequency | 50/60HZ | ||
| Rated Current | 17A/1.5HP; 20A/2HP | ||
| Min.cut-in | 20PSI | ||
| Max.cut-out | 175PSI | ||
| Pressure range |
20-40PSI;30-50PSI;40-60PSI |
||
| Cover color | Black | ||
| Screw type | Female | Male | |
| Screw size | 1/4"; 3/8" | 1/4" | |
Normal Cover
Horned Cover

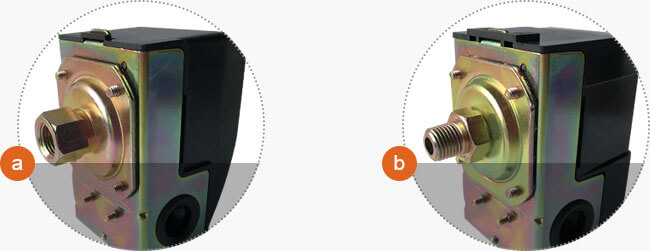

Fix nut; Female: 1/4’’; 3/8’’
Male: 1/4’’
.png?imageView2/2/format/jp2)
Normal cover
.png?imageView2/2/format/jp2)
Horned cover

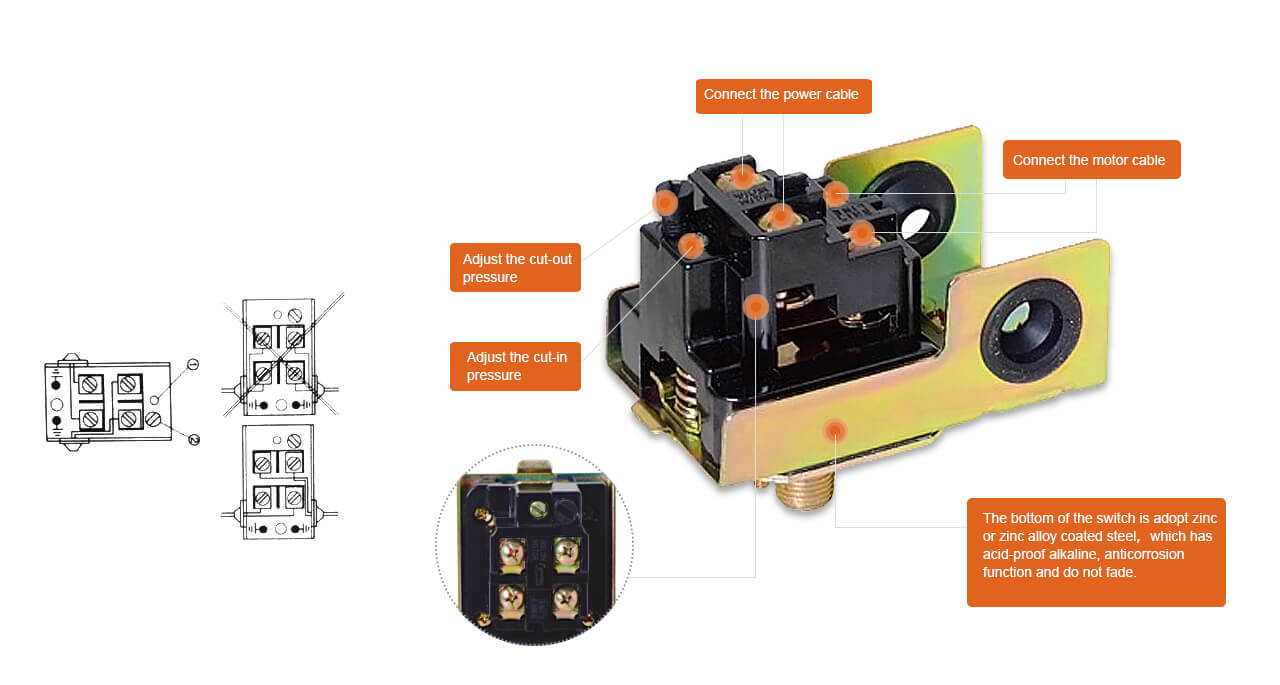

Pressure regulation step:
1.Cut-in: turn Range Nut ① down for higher cut-in pressure.
2.Cut-out: turn Range Nut ② down for higher cut-out pressure.
Normal Packing:
Brand Backing（quantity requirement）
EPC series ≥ 1200pcs；
KRS series ≥ 3000pcs；
FPS series ≥ 2000pcs
Size:
Inner Box Size: 86*60*95 MM
Outside Carton Size: 45*31*21 CM
Quantity: 50 PCS/CTN
N.W./G.W.: 16/18 KGS
