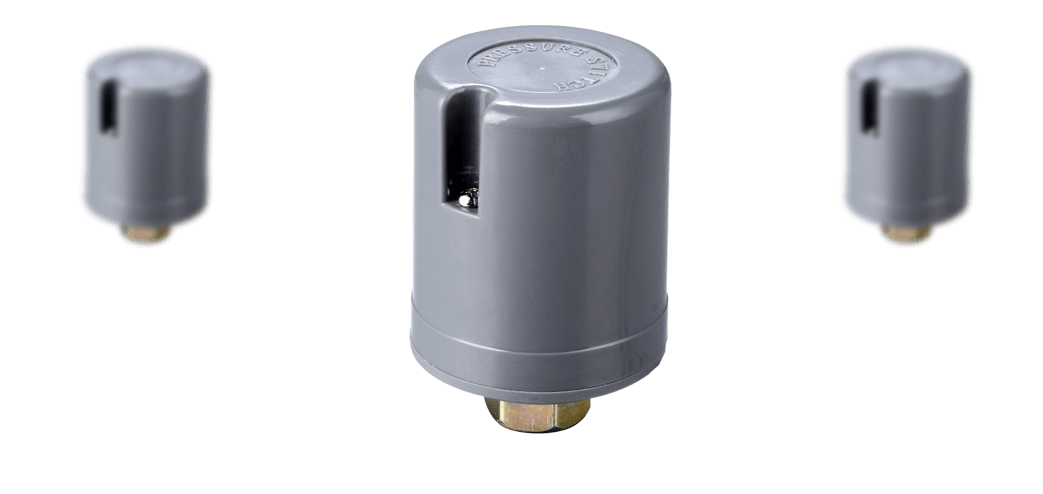

Water Pump Pressure Control - KRS-2


  • 1 Year quality guarantee
  • More than 10 years experience
  • 100% inspection
  • Stable performance
  • Long life
  • Protection from dry running
  • Replaces the traditional expansion tank system, easy to install
  • 15 bar high pressure test


customization

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
                                                           1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch (Quantity≥2000PCS)

contact us >

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
                                                           1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch (Quantity≥2000PCS)

contact us >

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
                                                           1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch (Quantity≥2000PCS)

contact us >



product application
ordinary wells and tube wells
household water booster
high buildings'water booster
irrigation system

Wish our switch clear off all the
water problems of you.




PRODUCT PARAMETERS

pressure tank
copper five-way
pressure switch
KRS-2 Technical Parameters
Rated Voltage 230V; 110V
Frequency 50/60HZ
Rated Current 5A; 10A
Min.cut-in 12PSI
Max.cut-out 45PSI
Pressure range 1.1-1.8bar
(according to requirements of customers)
Bases Zin alloy; Plastic
Contacts Double; Single
Screw type Female Male
Screw size 1/4"; 3/8" 1/4"



PRODUCT DETAILS

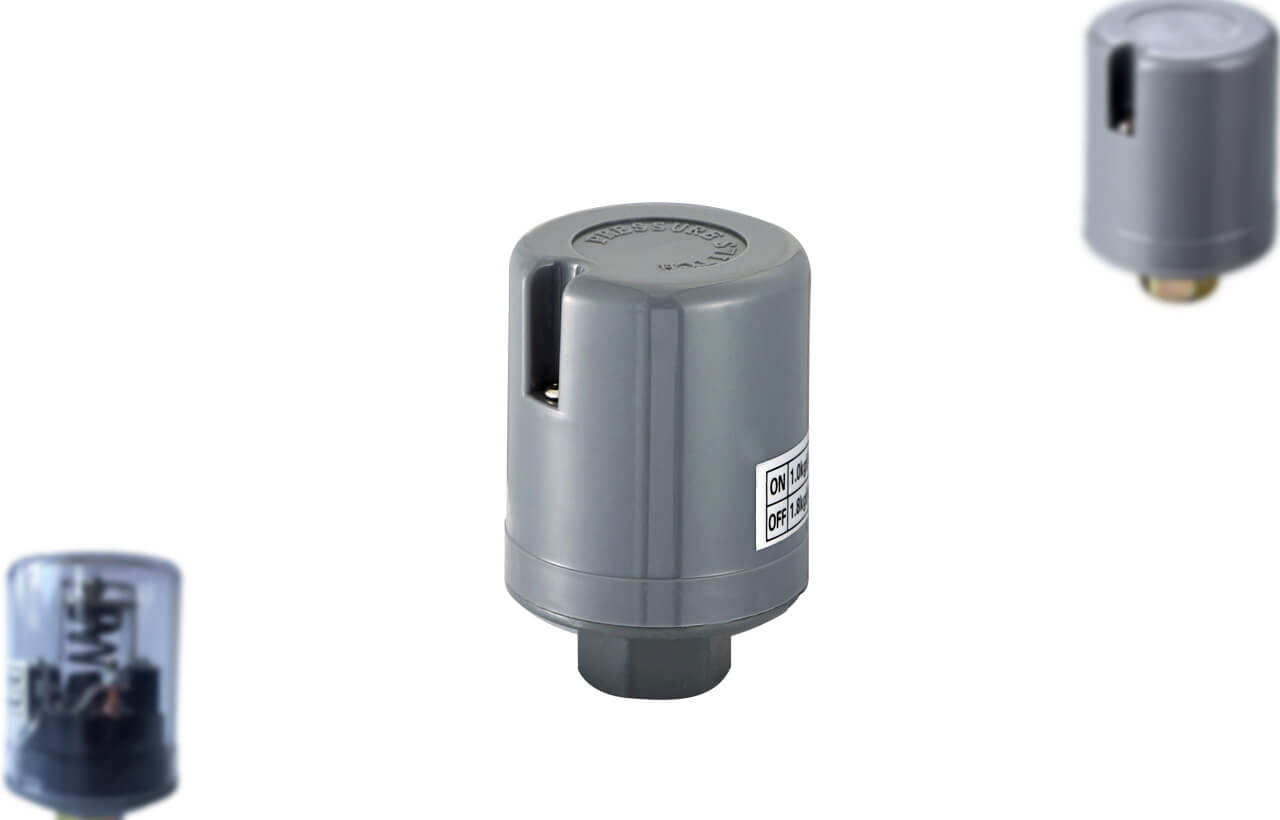

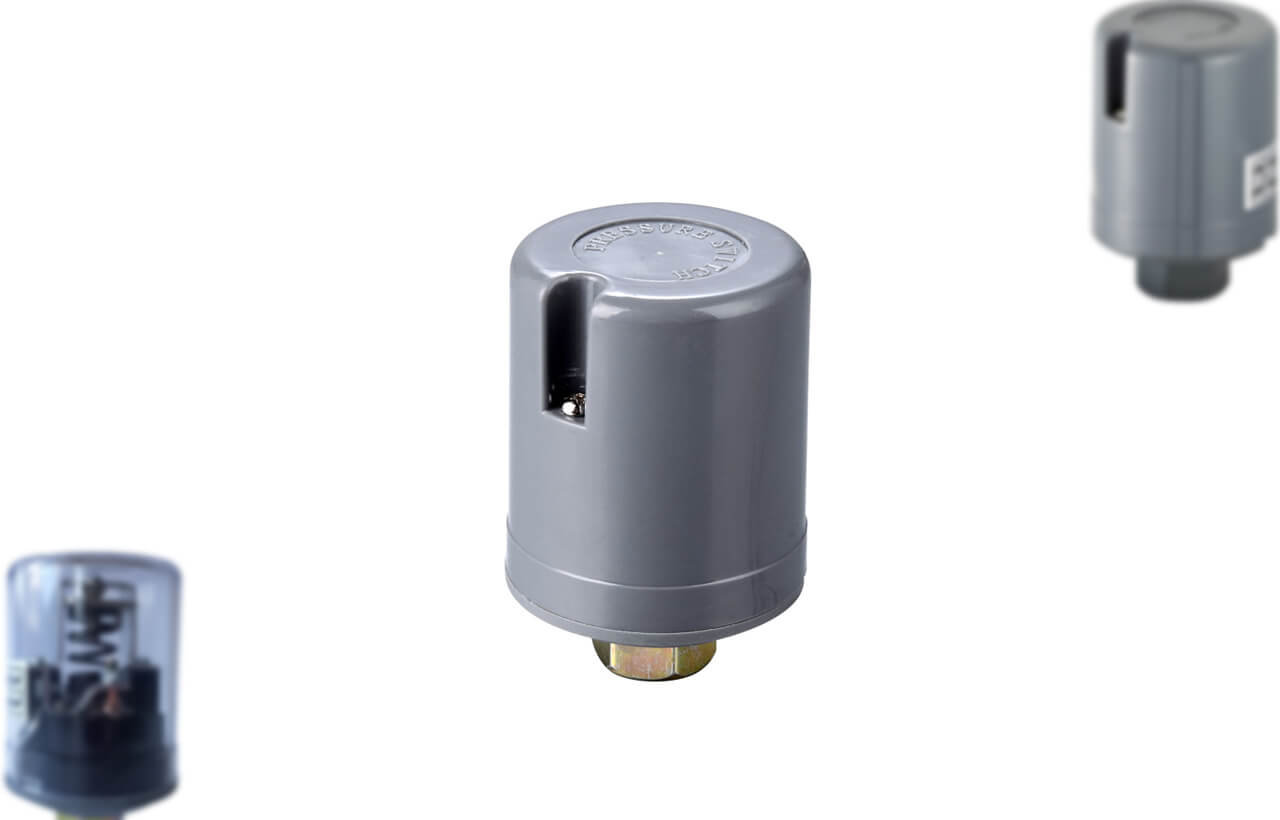

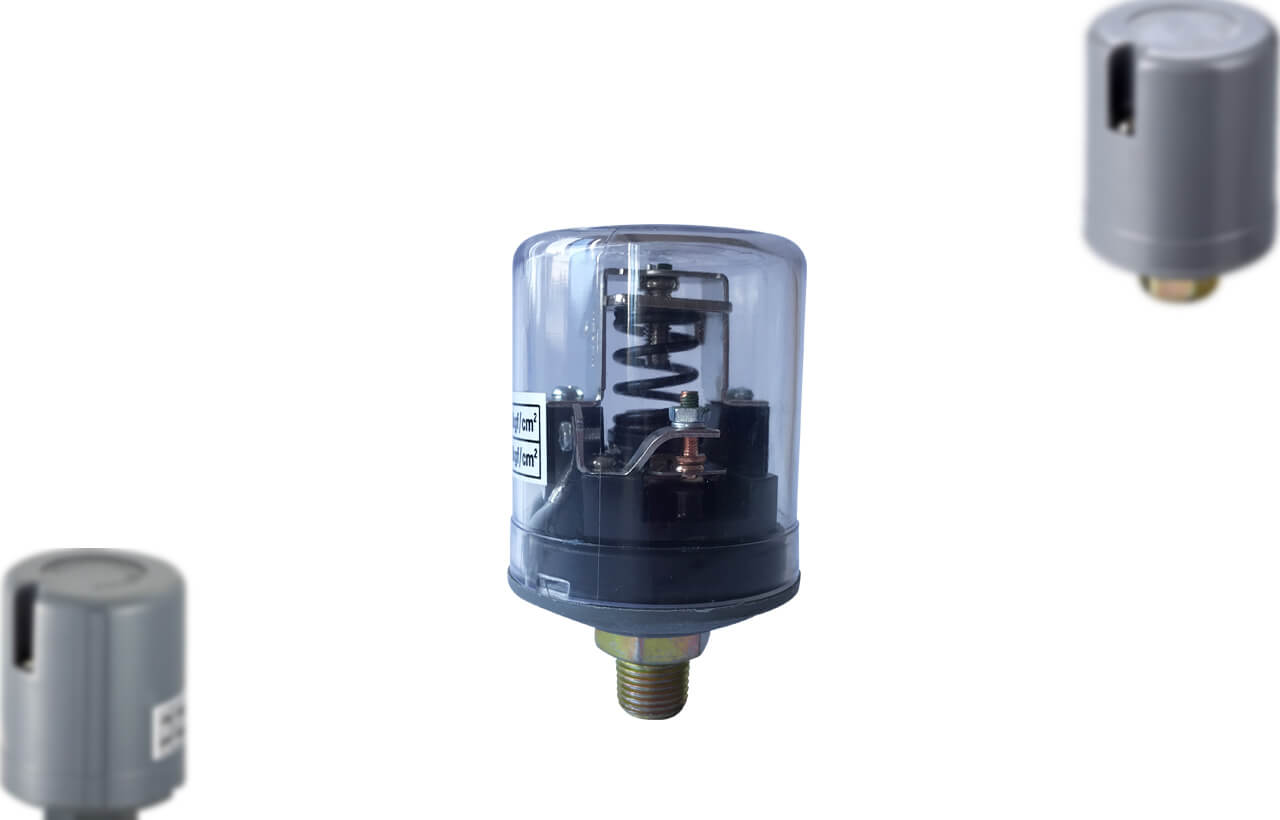

Product selectivity

KRS-2.1
Zin alloy
Double contacts
Male 1/4’’

KRS-2.2
Zin alloy
Double contacts
Female 1/4”; 3/8’’

KRS-2.5
Aluminum button
Single contact
Female 1/4”; 3/8’’
Male 1/4’’

KRS-2.4
Plastic button
Single contact
Female 1/4’’;3/8’’
Male 1/4’’

KRS-2.3
Plastic button
Double contacts
Female 1/4”; 3/8’’
Male 1/4’’

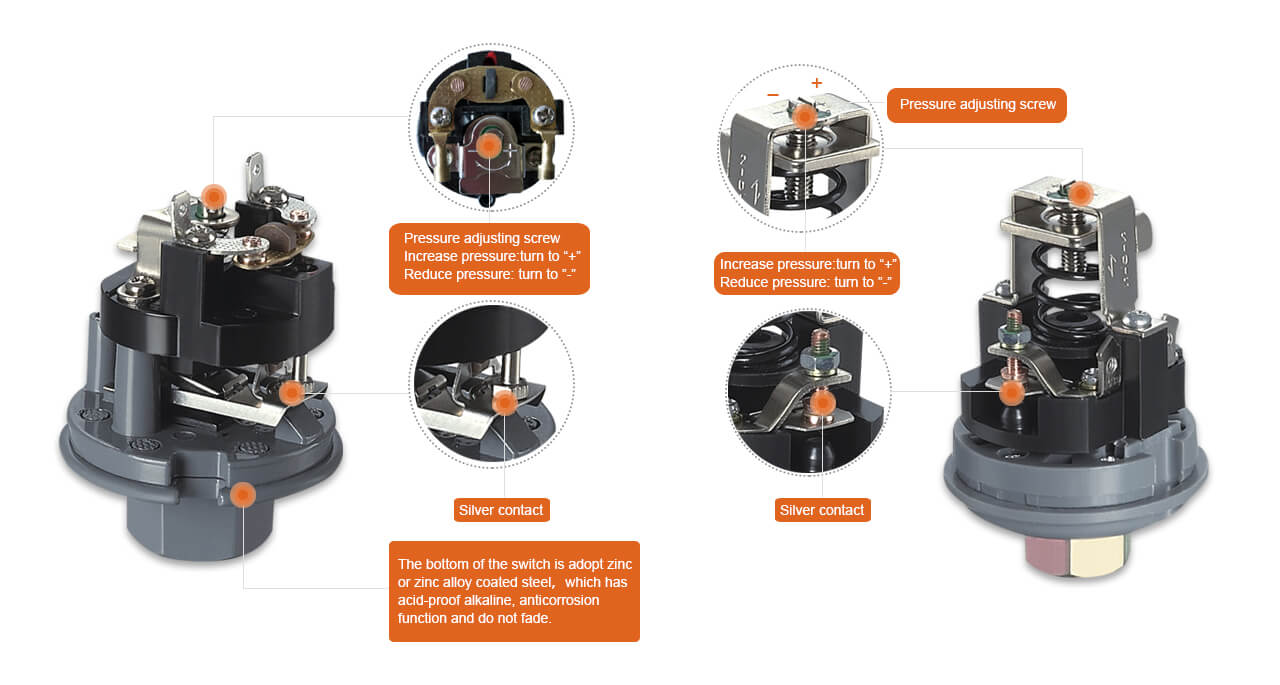

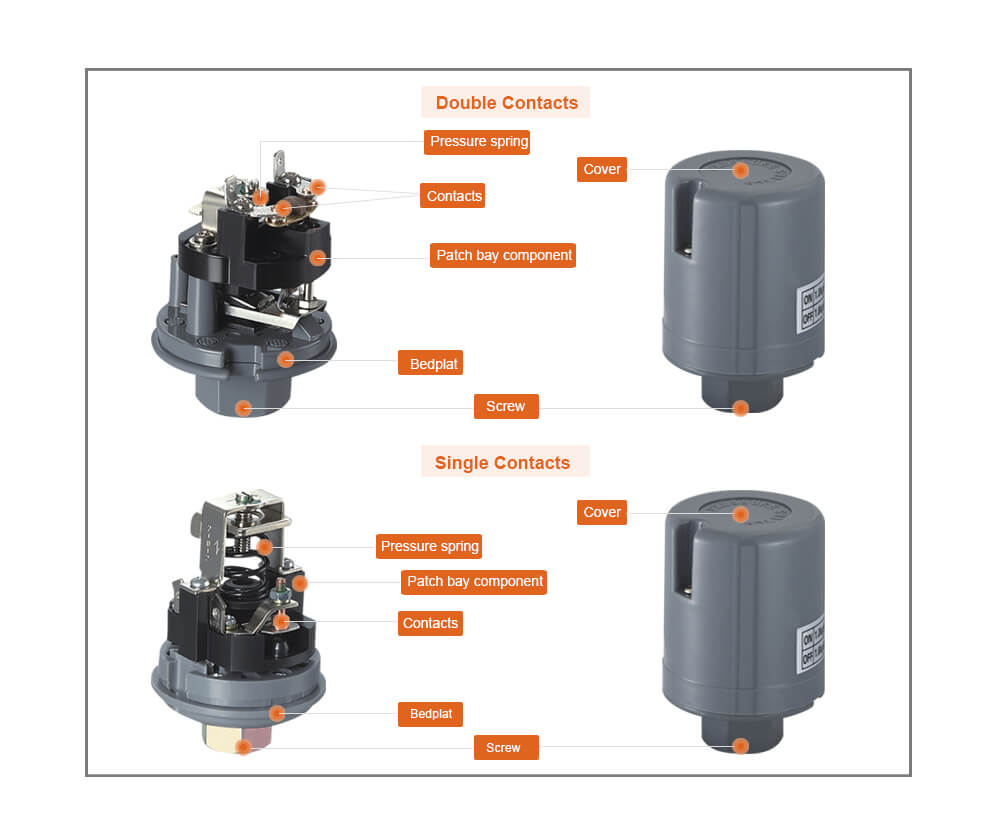

PRODUCT ANALYSIS




NORMAL PACKING
1 2

Normal Packing:

  • Outside Canton
  • Inside Box

Brand Backing(quantity requirement)

EPC series ≥ 1200pcs;

KRS series ≥ 3000pcs;

FPS series ≥ 2000pcs

Size:

Inner Box Size: 50*50*85 MM

Outside Carton Size: 52*26.5*19 CM

Quantity: 100 PCS/CTN

N.W./G.W.: 17/19 KGS

we have our own professional designers to meet any of your requirements.
Welocme to contact us!
