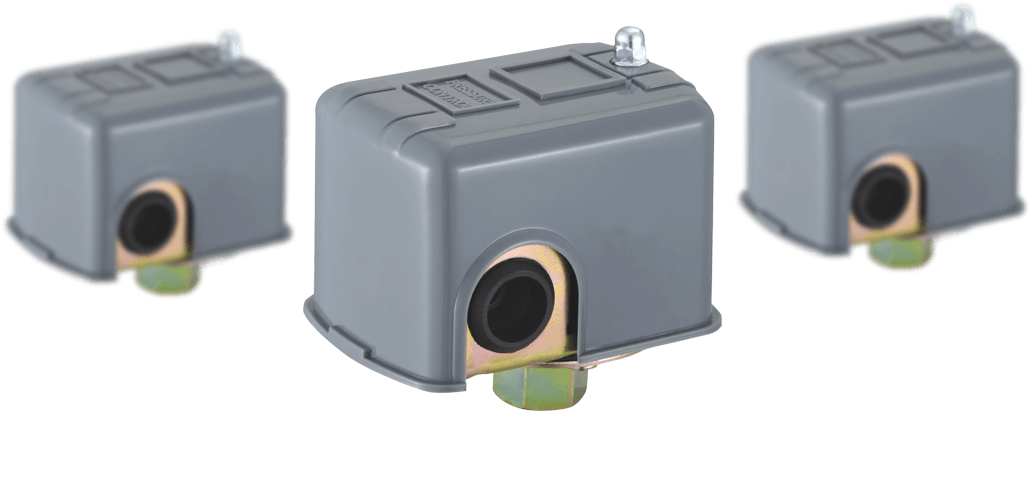

Water Pump Pressure Control - KRS-3


  • 1 Year quality guarantee
  • More than 10 years experience
  • 100% inspection
  • Stable performance
  • Long life
  • Protection from dry running
  • Replaces the traditional expansion tank system, easy to install
  • 15 bar high pressure test


customization

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
                                                           1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch (Quantity≥2000PCS)

contact us >

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
                                                           1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch (Quantity≥2000PCS)

contact us >

--Pressure setting according to customers’ needs
--Hydraulics connection can choose: 1/4’’ & 3/8’’ Female
                                                           1/4’’ Male
--Cover shape according to customers’ needs
--Can print brand on switch (Quantity≥2000PCS)

contact us >



product application
ordinary wells and tube wells
household water booster
high buildings'water booster
irrigation system

Wish our switch clear off all the
water problems of you.




PRODUCT PARAMETERS

pressure tank
copper five-way
pressure switch
KRS-3 Technical Parameters
Rated Voltage 230V; 110V
Frequency 50/60HZ
Rated Current 12A/1.5HP; 20A/2HP
Min.cut-in 20PSI
Max.cut-out 120PSI
Pressure range 20-40PSI;30-50PSI;40-60PSI;50-70PSI
(according to requirements of customers)
Contacts Silver; Copper
Cover color Grey; Black
Cover shape Steel fixed; plastic fixed; American standard
Base color Color plated; white plated
Flange Steel; Plastic
Screw type Female Male
Screw size Fix nut: 1/4";3/8"
Rotary: 1/4"; 3/8"
1/4"



PRODUCT DETAILS

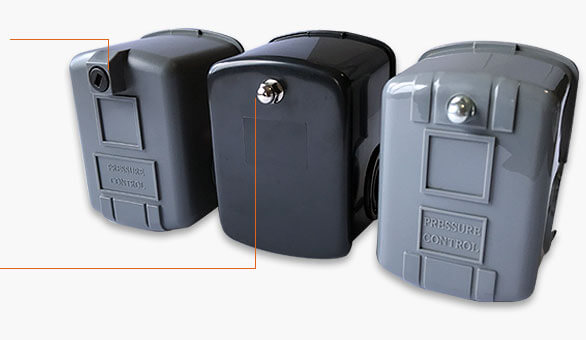

Product selectivity


plastic fixed


steel fixed


Frosted Surface


UL American standard


Bright Surface


① white plated

Rotary; Female:1/4’’;3/8’’

① white plated

Male:1/4’

② color plated

Fix nut: Female: 1/4’’;3/8’’
You can match the switch according to your own need,
for example: A+I+c+①= a switch with frosted surface, plastic fixed, fix nut female 1/4’’, white plated

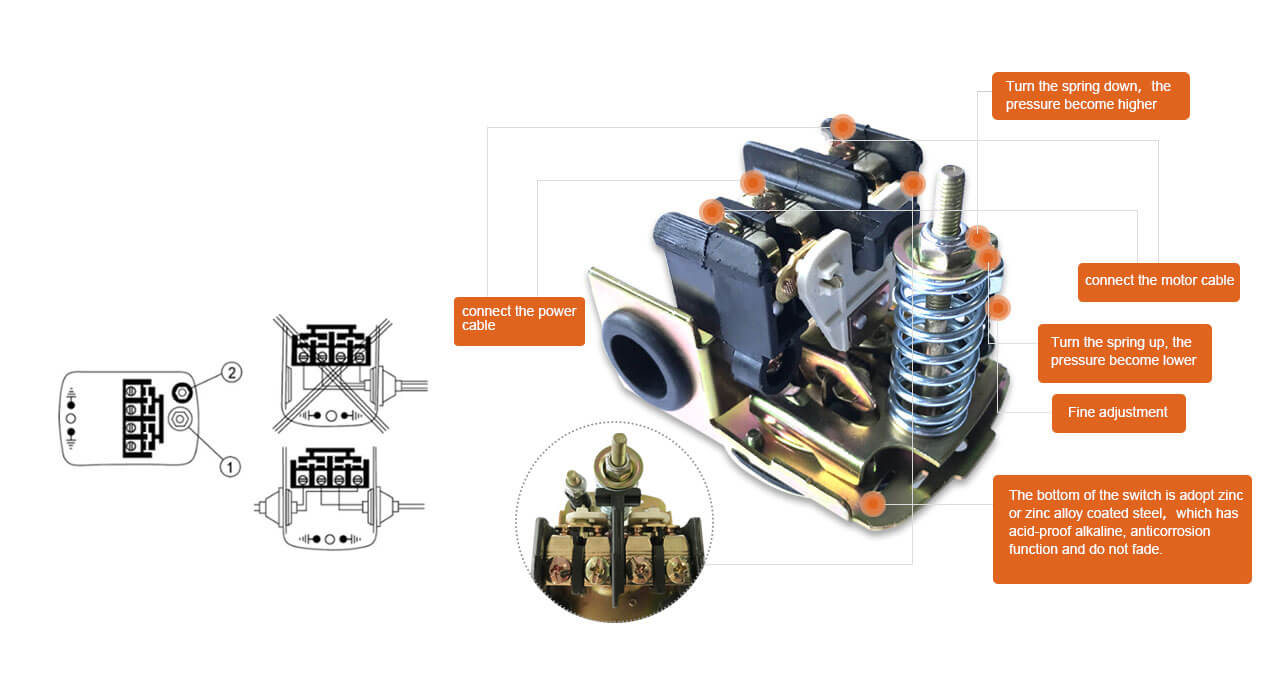

Product analysis

Pressure regulation step:

1.Cut-in: turn Range Nut ① down for higher cut-in pressure.
2.Cut-out: turn Range Nut ② down for higher cut-out pressure.



NORMAL PACKING
1 2

Normal Packing:

  • Outside Canton
  • Inside Box

Brand Backing(MOQ)

EPC series ≥ 1200pcs;

KRS series ≥ 3000pcs;

FPS series ≥ 2000pcs

Size:

Inner Box Size: 99*70*99 MM

Outside Carton Size: 51*37*21 CM

Quantity: 50 PCS/CTN

N.W./G.W.: 16.5/18.5 KGS

20GP Container: 36000 PCS

we have our own professional designers to meet any of your requirements.
Welocme to contact us!
