Water Pump Pressure Switch

KRS-8 High- Pressure 6-12bar Working Square Mechanical Pressure Switch

KRS-8 water pump pressure switch is high pressure type, Max. Pressure can do 12bar. It has two pressure range for option, one is 1-6bar, and another is 6-12bar. Used for double spring to adjust cut in & cut out pressure to control the water pump start and stop automatically. It is suitable for single phase 110V-240V and three phases 400V water pumps.

No previous article | NEXT

+ Contact us

Cable float level switch

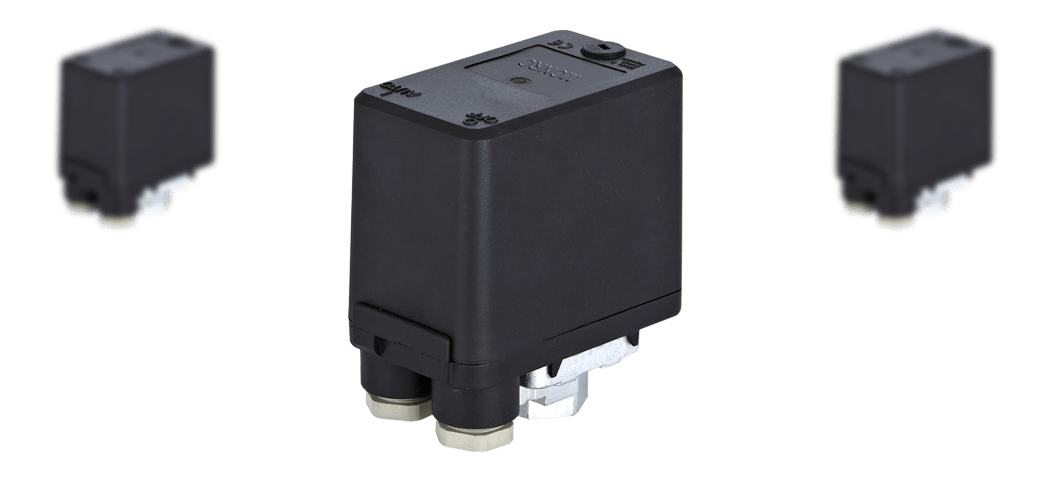

KRS-8

KRS-8 water pump pressure switch is high pressure type, Max. Pressure can do 12bar. Used for double spring to adjust cut in & cut out pressure to control the water pump start and stop automatically. It is suitable for single phase 110V-240V and three phases 400V water pumps.

Pressuer Adjustable
Auto Start Auto Stop
Water Shortage Protection
Water-proof Design

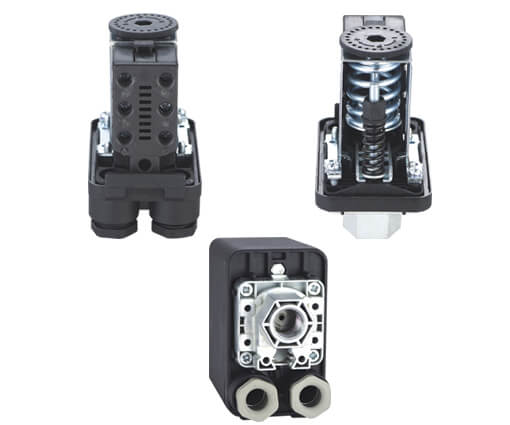

KRS-Series DETAILS & OPTIONS

Automatic control no manual operation is required.

Common Specifications

Material: Metal, Plastic

Max. current: 20(16)A

Min. cut-in: 1bar

Max. cut-out: 12bar

Flange: Aluminum

Cover color: Black

Protection rating: IP44

Max. working temperature: 55 deg C

Features

- Pressure Switch Application: water pumps

- Made of high quality materials for strong strength and long durability

- When the system pipeline pressure reaches the upper limit, the power supply is automatically cut off and the pump stops working.

- When the system pressure reaches the lower limit, the power supply is automatically switched on and the pump starts to work.

- Suitable for water pumps, such as self-priming water pump, injection water pump, garden water pump, etc.

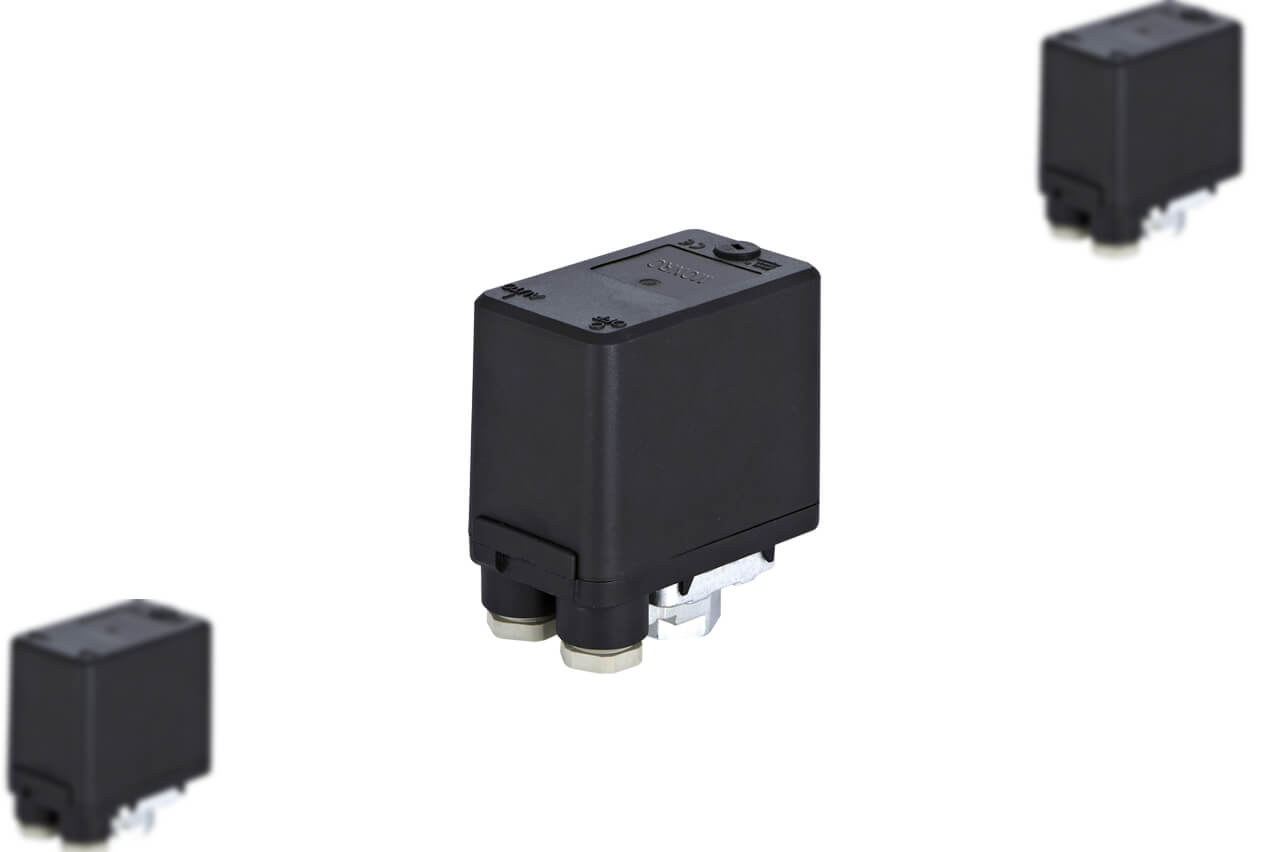

Specifications And Dimensions

Model: KRS-8

Box size (cm): 8.5×5.3×5.3

Carton size (cm): 53×24×34

QTY/CTN: 50PCS

N.W (kg): 25.5

G.W (kg): 27.5

Customization Optional configuration
for KRS-8 model

Rated Voltage: 110V/230V, 400V

Connection Tread: G1/4" Female, G3/8" Female

Pressure Range: 1-6bar, 6-12bar

KRS-Series SUITABLE FOR
ALL KINDS OF PUMPS

Many pumps now come bundled with a pressure controller, and some may even be pre-installed, streamlining the process of getting your pump and pump controller up and running.
