The EPC-10 water pump pressure switch, a brand new design and appearance for mechanical pressure switch with intelligent display - LCD (Liquid Crystal Display). Two modes can be switched. “Manual Mode” automatically starts and stops the electric water pump according to the setting pressures, also display real-time pressure. Time mode used for filling up the water tower, the time setting will be changed as 0.1H,0.2H ...0.9H, 1H, 2H ...24H. Water shortage alarm.
Automatic control no manual operation is required.
Common Specification | ||||||||
Power frequency: 50/60Hz Starting pressure setting: 0.5 - 9.3bar Adjustable pressure range: 0.7 - 9.5bar Max working pressure: 10bar Max. power: 1.5kW Built-in LCD Screen for Real-time Pressure Indicator |
Protection rating: IP65 Stopping pressure setting: 0.7 - 6.9bar Max working temperature: 60 deg C Rated voltage: 110-240V (dual voltage) Max current: 16A for 1.5kw Built-in Smart Program |
|||||||
LED Control Panel Indicators
Real-time pressure and Time display Modes indicator: MANUAL & TIME for option Pump on: When water pump is working,“PUMP ON” icon is on; when water pump stop working, it is off. Flow: The pump controller detected flow,the “FLOW” icon is on, water shortage, it is off. Alarm: The pump controller failure, the “ALARM” icon is on. Reset button for manual start after water failure |
||||||||
Specifications And Dimensions | ||||||||
Model: EPC-10 W/O cable Box size (cm): 11.8×11.1×9.6 |
Carton size (cm): 34.5×48.5×31.5 QTY/CTN: 36PCS |
N.W (kg): 7 G.W (kg): 9 |
||||||
Model: EPC-10 W cable Box size (cm): 11.8×11.1×15.5 |
Carton size (cm): 34.5×48.5×31.5 QTY/CTN: 24PCS |
N.W (kg): 15 G.W (kg): 17 |
2 IN 1 Modes, used in different applications |
|
Manual Mode: Mainly used for non-tower water supply |
Time Mode: Mainly used for filling up the water tower |
Pressure switches for usage with water in pipe system |
Auto on & off by MCU (Multi-point Control Unit) |
NBR rubber membrane with textile insert (food grade) |
Hydraulic connection made of chromium-plated steel |
Max working temperature 60°C |
Standard protection degree IP 65 |
Available Connection: Rotary 1/4” F, 1/4” M, Fixed 1/4” & 3/8” |
|

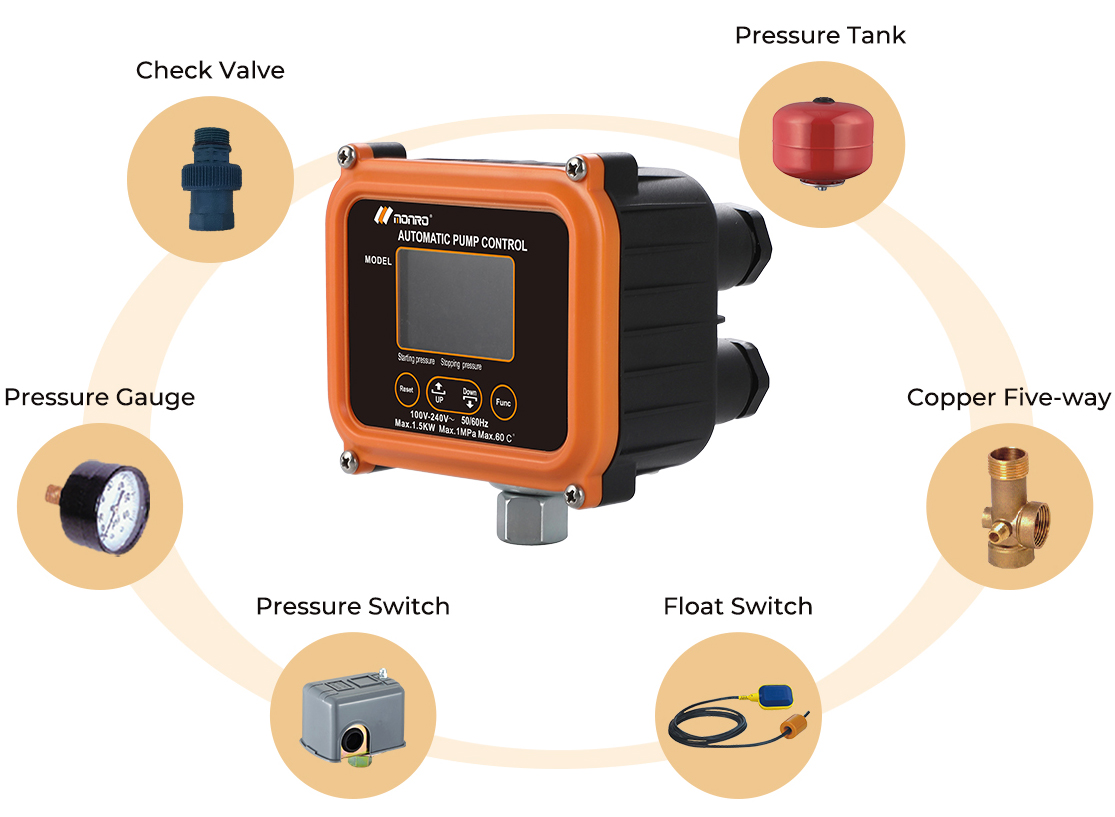

Many pumps now come bundled with a pressure controller, and some may even be pre-installed, streamlining the process of getting your pump and pump controller up and running.
