EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
Home / Product / Automatic Pump Control / Digital Water Pump Controller / EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
  • EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
  • EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
  • EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
  • EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
  • EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
  • EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
  • EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
  • EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller
Digital Water Pump Controller

EPC-12P 30A Three-In-One Digital Screen With Timing Mode Smart Water Pressure Controller

Monro EPC-12P intelligent top-level automatic pump control is the unique model with digital screen instead of pressure gauge. Built with pressure sensor, its starting pressure adjustable range from 0.5bar - 6.7bar. So Max. Using height can reach to 60 meters. Then, it has 3 in 1 functions to satisfy with no water tower supply and water tower supply. Standard dual-voltage 110-240V. Digital screen display failure status codes, 180º pump-pipe connection.

No previous article   |   NEXT

+ Contact us
AUTOMATIC PUMP CONTROLLER
EPC-12P
Monro EPC-12P intelligent top-level automatic pump control is the unique model with digital screen instead of pressure gauge. Built with pressure sensor, its starting pressure adjustable range from 0.5bar - 6.7bar. So Max. Using height can reach to 60 meters.
  • Zhejiang Monro M&E Co., Ltd. Temperature Resistance
  • Zhejiang Monro M&E Co., Ltd. Energy Conservation
  • Zhejiang Monro M&E Co., Ltd. G1"Connection Thread
  • Zhejiang Monro M&E Co., Ltd. Security
EPC-Series AUTOMATIC PUMP CONTROLLER

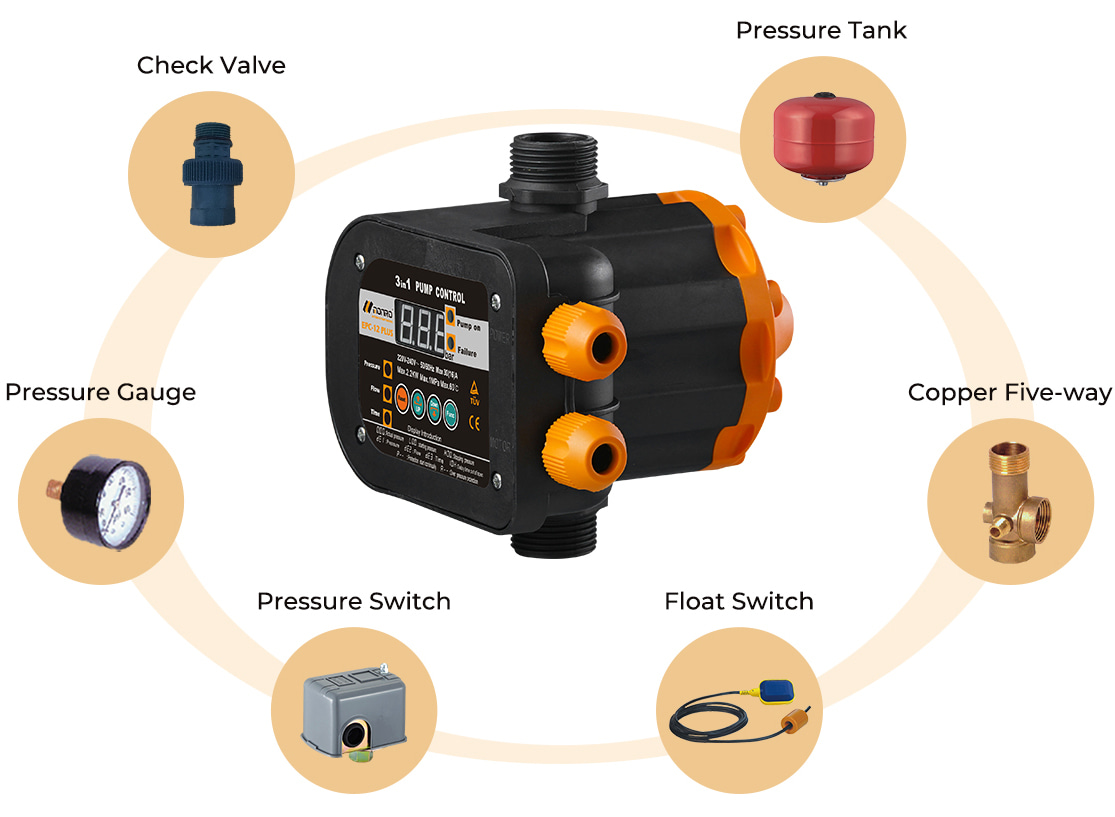

ESSENTIALLY REPLACES SIX DEVICES

In tradition water pump control system,
making the plumbing in your home less complicated.

Zhejiang Monro M&E Co., Ltd.
Detail Product Structure Analysis
Zhejiang Monro M&E Co., Ltd.
Common Specification

Power frequency: 50/60Hz

Starting pressure setting: 0.5-6.7bar

Max working pressure: 9.5bar

Protection rating: IP65

Max current: 30A for 2.2kw (3HP)

Max working temperature: 60 deg C

Built-in digital screen for real-time pressure indicator

Built-in Smart Program
LED Control Panel Indicators

Power: Green LED light

Flow: Yellow LED light

Time: Red LED light

Pump on: Red LED light

Failure: Red LED light

Reset button for manual start after water failure

 Three-In-One Function:

Mode 1 pressure: Mainly used for no water tower’s water supply

Mode 2 flow: Mainly used for water tower pressurization

Mode 3 time: Mainly used for filling up the water tower,
time setting do according to customers’ requirement ( 0.1-0.9H, 1-24H).
Specifications And Dimensions

Model: EPC-12P

Box size (cm): 16×17×17.5

Carton size (cm): 49.5×35.5×37

QTY/CTN: 12PCS

N.W (kg): 11

G.W (kg): 13.5
Customization Optional configuration
for EPC-12P model

Rated Voltage: 110-240V

   Connections: G 1inch

Max. Power:  2.2kW
Zhejiang Monro M&E Co., Ltd.
EPC-Series SUITABLE FOR
ALL KINDS OF PUMPS

Many pumps now come bundled with a pressure controller, and some may even be pre-installed, streamlining the process of getting your pump and pump controller up and running.



Zhejiang Monro M&E Co., Ltd.
Innovate Product SMART PROGRAM

Model

Upgrade version

Regular version

Forced start

6s

10s

Stop with pressure keeping

Auto-stop after 6s

Auto-stop after 10s

Drying runner protection

No water, stop after 12s, “F--” display for alarm

No water, stop after 10s

Automatic restart in case of water failure

Self-start 12s/20mins, after 2times cycle change to self-start 12s/1h.

Impeller anti-seize protection

24h no using, auto-run 1min

Pipeline leakage protection

“P--” display for alarm

Quality AUTHORITATIVE INSTITUTIONS
MULTIPLE CERTIFICATIONS
Zhejiang Monro M&E Co., Ltd.
