EPC-7 2.2kW 1.25/1.5inch Smart Protection Auto Restart Pump Under Water Shortage Water Pump Controller Pressure Switch

Monro EPC-7 model pressure control is a big power device for automatic control and protection of electric pumps up to 2.2kW (3HP), due to its original TECO relay.  The working principle of the device adopts dual control of Pressure and flow. It goes auto on and auto off for water pump, when water pressure changed based on water consumption. 180º pump-pipe connection.

AUTOMATIC PUMP CONTROLLER
EPC-7
Monro EPC-7 model pressure control is a big power device for automatic control and protection of electric pumps up to 2.2kW (3HP), due to its original TECO relay. The working principle of the device adopts dual control of Pressure and flow.
  • Zhejiang Monro M&E Co., Ltd. Temperature Resistance
  • Zhejiang Monro M&E Co., Ltd. Energy Conservation
  • Zhejiang Monro M&E Co., Ltd. G1"Connection Thread
  • Zhejiang Monro M&E Co., Ltd. Security
EPC-Series AUTOMATIC PUMP CONTROLLER
ESSENTIALLY REPLACES SIX DEVICES

In tradition water pump control system,
making the plumbing in your home less complicated.

Zhejiang Monro M&E Co., Ltd.

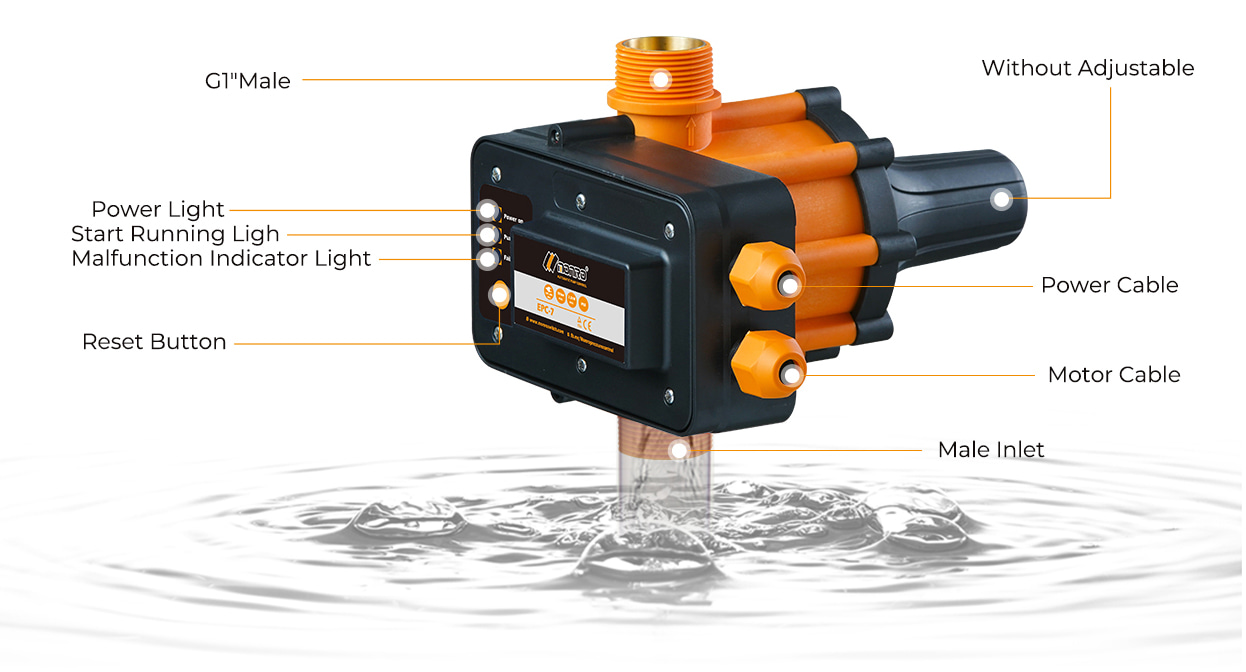

Detail Product Structure Analysis
Zhejiang Monro M&E Co., Ltd.
Common Specification

Power frequency: 50/60Hz

Starting pressure setting: 1.2bar, 1.5bar, 2.2bar

No adjustment: G 1inch, G 1.25inch

Max working pressure: 10bar

Max current: 30A for 2.2kw (3HP)

Built with Pressure gauge: G 1.5inch

Max. power: 2.2kW (3HP)

Adjustable pressure: G 1.5inch

Max working temperature: 55 deg C

Protection rating: IP65

Built with Smart program


LED Control Panel Indicators

Power: Green LED light

Pump on: Yellow LED light

Failure: Red LED light

Reset button for manual start after water failure


Specifications And Dimensions

Model: EPC-7

Box size (cm): 27.2×17.9×22.5

Carton size (cm): 56.5×38×48

QTY/CTN: 8PCS

N.W (kg): 8

G.W (kg): 10

Customization Optional configuration
for EPC-7 model

Rated Voltage: 220-240V, 110-120V, 110-240V(dual-voltage)

Max. Power: 1.1kW or 1.5kW

Adjustable: Yes or No

Connections: G 1inch , G1.25inch , G1.5inch

Smart Program: Yes

Zhejiang Monro M&E Co., Ltd.
EPC-Series SUITABLE FOR
ALL KINDS OF PUMPS

Many pumps now come bundled with a pressure controller, and some may even be pre-installed, streamlining the process of getting your pump and pump controller up and running.



Zhejiang Monro M&E Co., Ltd.
Innovate Product SMART PROGRAM

Model


Upgrade version


Regular version


Forced start


3s


10s


Stop with pressure keeping


Auto-stop after 3s


Auto-stop after 10s


Drying runner protection


No water, stop after 15s


No water, stop after 10s


Automatic restart in case of water failure


Self-start 15s/15mins, after 4times cycle change to self-start 15s/1h.



Impeller anti-seize protection


24h no using, auto-run 10s



Pipeline leakage protection


Red light indicate twinkles twice and pauses for 2s (repeat in cycle)



Flow switch jammed protection

Red light indicate twinkles once and pauses for 2s (repeat in cycle)
