Inlet And Outlet 180° Automatic Pump Control

EPC-14 Horizontal Small Size Water Pump Controller 1.2/1.5bar With Water Shortage Protection

Monro EPC-14 model pressure control is a big power device for automatic control and protection of electric pumps up to 2.2kW (3HP), due to its original TECO relay. The working principle of the device adopts dual control of Pressure and flow. It goes auto on and auto off for water pump, when water pressure changed based on water consumption. 180º pump-pipe connection.

No previous article | NEXT

+ Contact us

AUTOMATIC PUMP CONTROLLER

EPC-14

Monro EPC-14 model pressure control is a big power device for automatic control and protection of electric pumps up to 1.5kW(2HP). The working principle of the device adopts dual control of pressure and flow. It goes auto on and auto off for water pump, when water pressure changed based on water consumption. 180º pump-pipe connection.

Temperature Resistance
Energy Conservation
G1"Connection Thread
Security

EPC-Series AUTOMATIC PUMP CONTROLLER

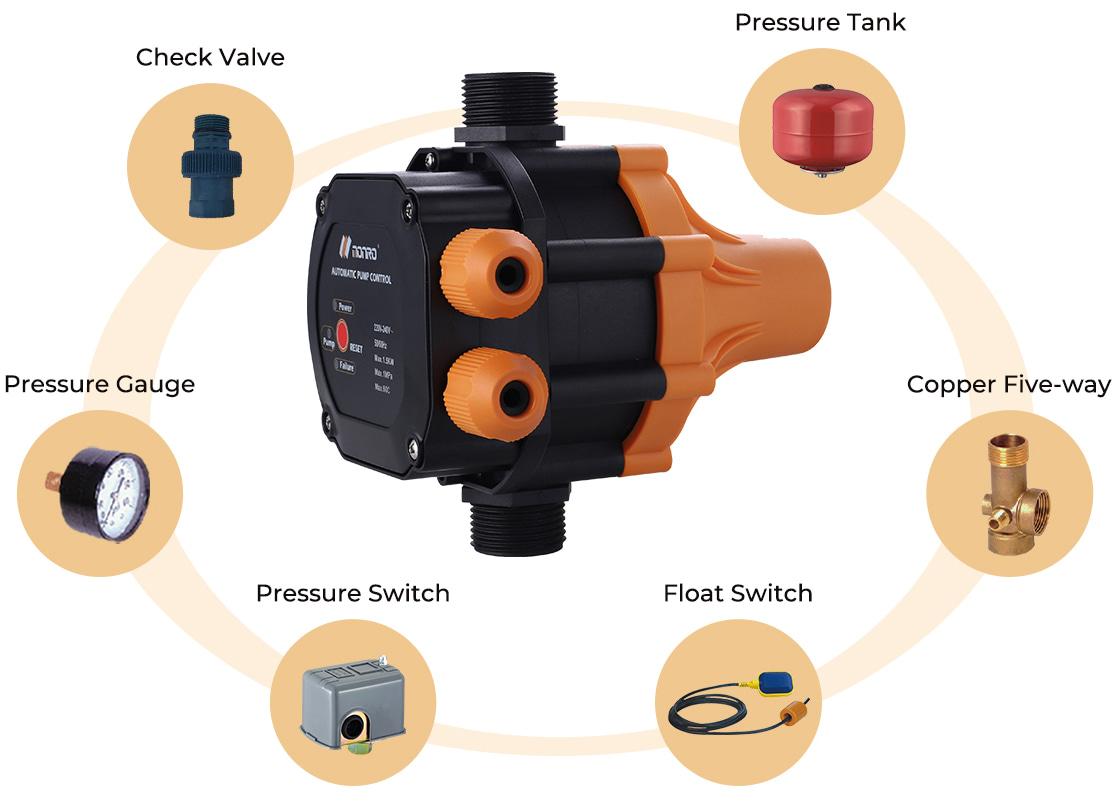

ESSENTIALLY REPLACES SIX DEVICES

In tradition water pump control system,
making the plumbing in your home less complicated.

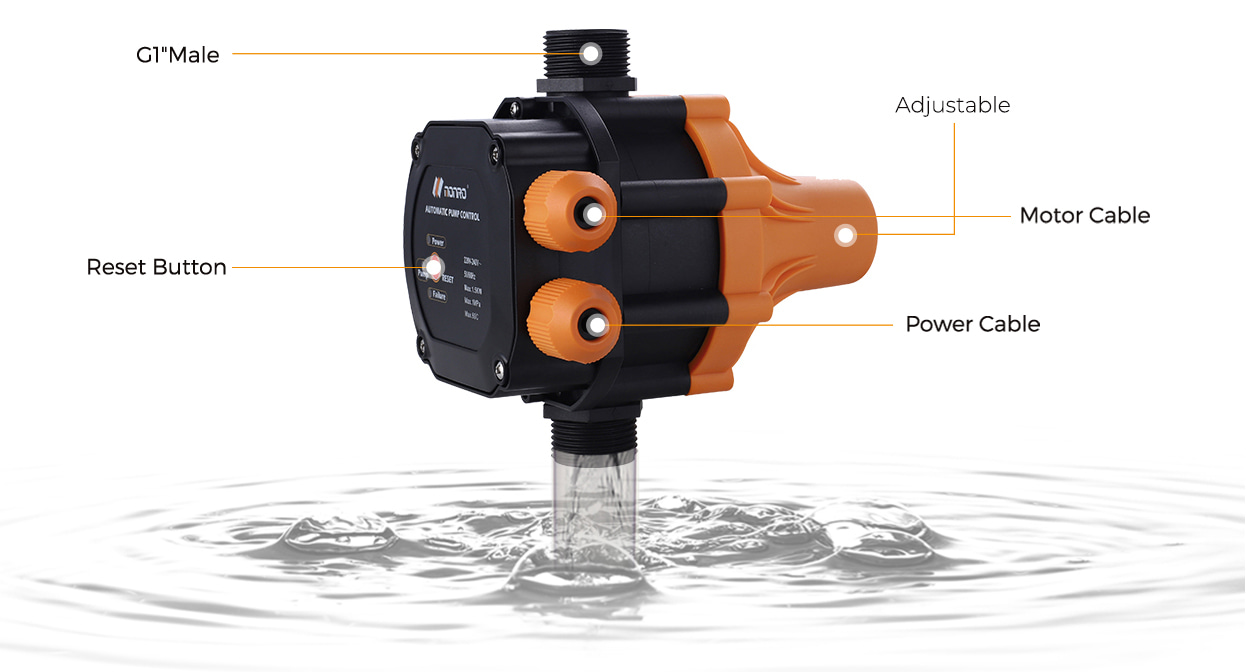

Detail Product Structure Analysis

Common Specification

Power frequency: 50/60Hz

Starting pressure setting: 1.2bar, 1.5bar

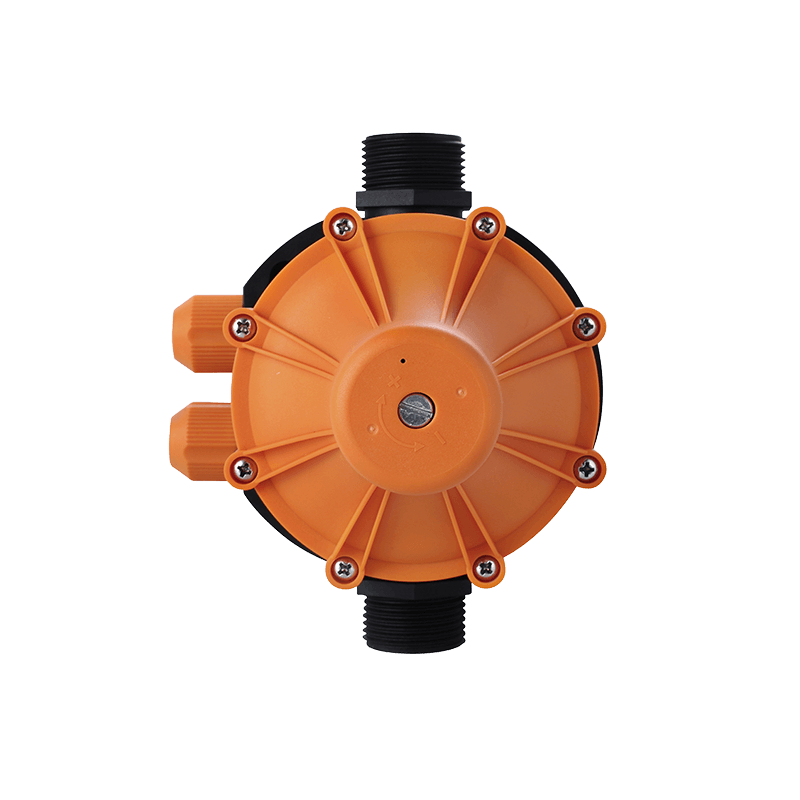

Adjustable pressure range: 1.5 - 2.5bar

Protection rating: IP65

Max working temperature: 60 deg C

Max. power: 1.5kW (2HP)

Max working pressure: 10bar

Max current: 20A for 1.5kw (2HP)

Connections: G 1inch

Built With Smart Program

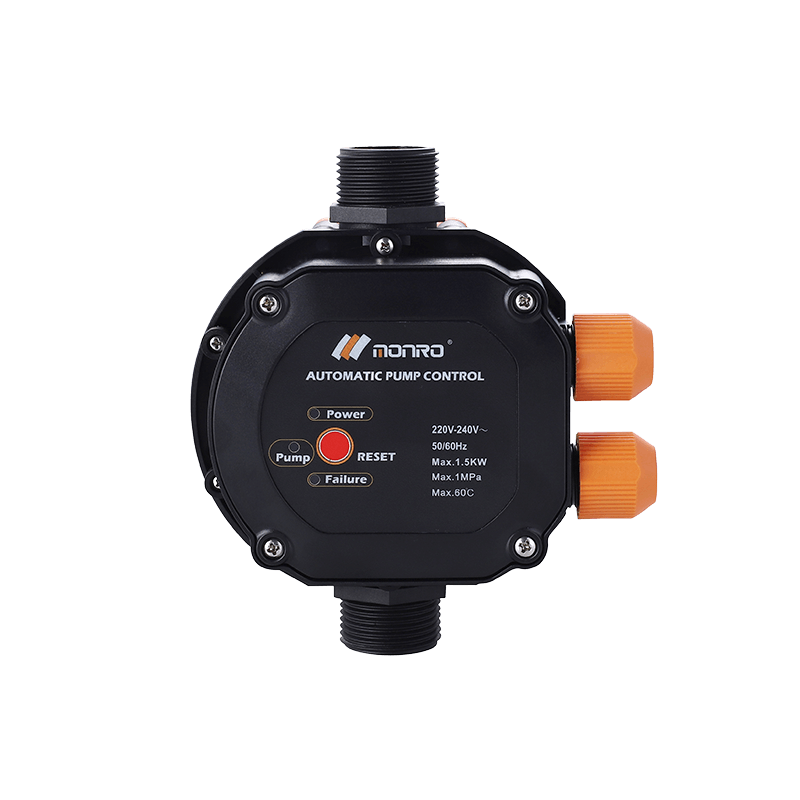

LED Control Panel Indicators

Power: Green LED light

Pump on: Yellow LED light

Failure: Red LED light

Reset button for manual start after water failure

Specifications And Dimensions

Model: EPC-14

Box size (cm): 14×14.5×18.5

Carton size (cm): 60×44×21

QTY/CTN: 12PCS

N.W (kg): 10

G.W (kg): 12

Customization Optional configuration
for EPC-14 model

Rated Voltage: 220-240V, 110-120V

EPC-Series SUITABLE FOR
ALL KINDS OF PUMPS

Many pumps now come bundled with a pressure controller, and some may even be pre-installed, streamlining the process of getting your pump and pump controller up and running.

Innovate Product SMART PROGRAM


Model	Upgrade version	Regular version
Forced start	3s	10s
Stop with pressure keeping	Auto-stop after 3s	Auto-stop after 10s
Drying runner protection	No water, stop after 15s	No water, stop after 10s
Automatic restart in case of water failure	Self-start 15s/15mins, after 4times cycle change to self-start 15s/1h.
Impeller anti-seize protection	24h no using, auto-run 10s
Pipeline leakage protection	Red light indicate twinkles twice and pauses for 2s (repeat in cycle)
Flow switch jammed protection	Red light indicate twinkles once and pauses for 2s (repeat in cycle)

Quality AUTHORITATIVE INSTITUTIONS
MULTIPLE CERTIFICATIONS
